1ab2
THREE-DIMENSIONAL SOLUTION STRUCTURE OF THE SRC HOMOLOGY 2 DOMAIN OF C-ABL
SAXS Profile

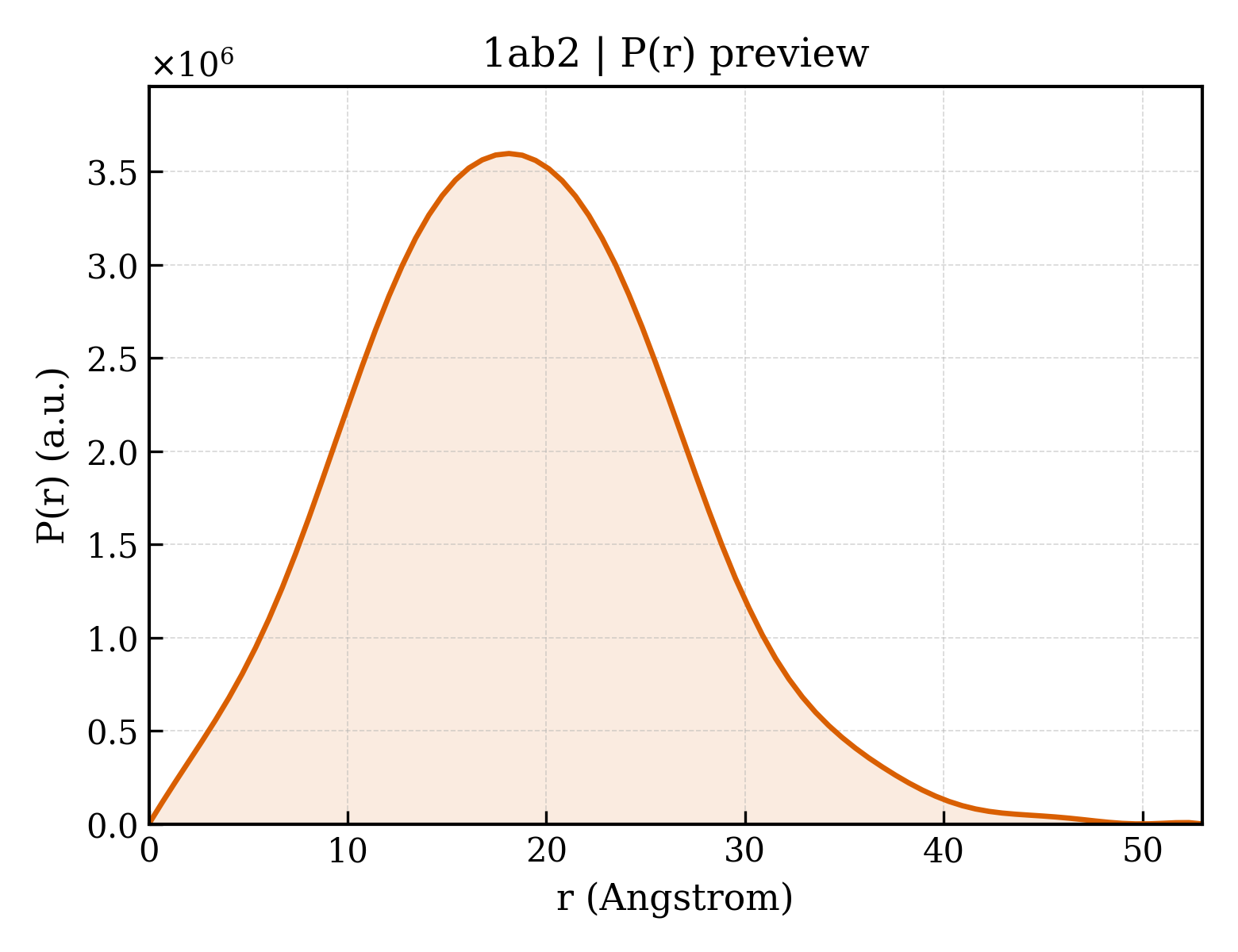

P(r) Distribution
1. Structure Basics
| entry_id | 1ab2 |
| deposition_date | 1993-07-19 |
| title | THREE-DIMENSIONAL SOLUTION STRUCTURE OF THE SRC HOMOLOGY 2 DOMAIN OF C-ABL |
| keywords | TRANSFERASE(PHOSPHOTRANSFERASE); TRANSFERASE(PHOSPHOTRANSFERASE) |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.39 Å |
| rg_electron | 13.78 Å |
| i0 | 914125000.00 |
| molecular_weight | 242830.0 kDa |
| excluded_volume | 298510 ų |
| envelope_volume | 35511 ų |
| shell_volume | 17227 ų |
| envelope_diameter | 57.7 Å |
| shell_rg | 23.59 Å |
| envelope_rg | 17.89 Å |
| shape_rg | 13.75 Å |
| total_rg | 14.06 Å |
| total_atoms | 33680 |
| n_residues | 2180 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.0 Å |
| rg_real | 14.35 Å |
| rg_real_error | 0.37 Å |
| i0_real | 9.1410e+08 |
| i0_real_error | 9.7830e+06 |
| rg_reciprocal | 14.36 Å |
| i0_reciprocal | 914100000.0000 |
| total_estimate | 0.8263 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.1 Å |
| skewness | 0.298 |
| kurtosis | -0.018 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 418400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.603; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.937; Smooth: 0.993 |
