SAXSdb — 1b1c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (NADPH-CYTOCHROME P450 REDUCTASE)

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 61–241	Fragment：FMN-BINDING DOMAIN	CA CALCIUM ION × 1 FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；18-20% (W/V) PEG400, 100 MM HEPES (PH6.8-7.2), 200 MM CACL2 4 DEGREES C, pH 7.0	Resolution 1.93 Å R-free 0.243

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1B1C	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3FJO Structure of chimeric YH CPR Deposited 2008-12-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 232–677（446 aa） Fragment：yeast FMN domain, UNP residues 44-211, human FAD domain CPR, UNP residues 232-677	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；PEGII from Nextal condition G11, pH8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.290
3QE2 Crystal Structure of Human NADPH-Cytochrome P450 Reductase Deposited 2011-01-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 64–677（614 aa） Fragment：UNP residues 64-677	Not recorded	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；100 mM MES, 50 mM calcium acetate, 0.5 M sodium chloride, 14% PEG4000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292KK	Resolution 1.75 Å R-free 0.239
3QE2 Crystal Structure of Human NADPH-Cytochrome P450 Reductase Deposited 2011-01-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 64–677（614 aa） Fragment：UNP residues 64-677	Not recorded	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；100 mM MES, 50 mM calcium acetate, 0.5 M sodium chloride, 14% PEG4000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292KK	Resolution 1.75 Å R-free 0.239
3QFC Crystal Structure of Human NADPH-Cytochrome P450 (V492E mutant) Deposited 2011-01-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 64–677（614 aa） Fragment：UNP residues 64-677	Mutation：V489E	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；100 mM MES, 50 mM calcium acetate, 0.5 M sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292KK	Resolution 1.80 Å R-free 0.265
3QFC Crystal Structure of Human NADPH-Cytochrome P450 (V492E mutant) Deposited 2011-01-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 64–677（614 aa） Fragment：UNP residues 64-677	Mutation：V489E	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；100 mM MES, 50 mM calcium acetate, 0.5 M sodium chloride, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292KK	Resolution 1.80 Å R-free 0.265
3QFR Crystal Structure of Human NADPH-Cytochrome P450 Reductase (R457H Mutant) Deposited 2011-01-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 64–677（614 aa） Fragment：UNP residues 64-677	Mutation：R454H	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；100 mM MES, 50 mM calcium acetate, 0.1 M sodium chloride, 14% PEG4000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.40 Å R-free 0.285
3QFR Crystal Structure of Human NADPH-Cytochrome P450 Reductase (R457H Mutant) Deposited 2011-01-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 64–677（614 aa） Fragment：UNP residues 64-677	Mutation：R454H	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 FMN FLAVIN MONONUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；100 mM MES, 50 mM calcium acetate, 0.1 M sodium chloride, 14% PEG4000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.40 Å R-free 0.285
3QFS Crystal Structure of NADPH-Cytochrome P450 Reductase (FAD/NADPH domain) Deposited 2011-01-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 241–677（437 aa） Fragment：FAD/NADPH domain (UNP residues 241-677)	Not recorded	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；292 K；100 mM magnesium chloride, 15% PEG5000 MME, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.40 Å R-free 0.231
3QFT Crystal Structure of NADPH-Cytochrome P450 Reductase (FAD/NADPH domain and R457H Mutant) Deposited 2011-01-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 241–677（437 aa） Fragment：FAD/NADPH domain (UNP residues 241-677)	Mutation：R454H	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；292 K；100 mM magnesium chloride, 15% PEG5000 MME, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.40 Å R-free 0.227
5EMN Crystal Structure of Human NADPH-Cytochrome P450 Reductase(A287P mutant) Deposited 2015-11-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 64–677（614 aa） Fragment：UNP residues 57-677	Mutation：P228L, A287P, A503V	FMN FLAVIN MONONUCLEOTIDE × 1 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；100mM MES,pH6.5,50mM CaAc2,0.1M NaCl, 14% PEG4K	Resolution 2.20 Å R-free 0.277
5EMN Crystal Structure of Human NADPH-Cytochrome P450 Reductase(A287P mutant) Deposited 2015-11-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 64–677（614 aa） Fragment：UNP residues 57-677	Mutation：P228L, A287P, A503V	FMN FLAVIN MONONUCLEOTIDE × 1 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；100mM MES,pH6.5,50mM CaAc2,0.1M NaCl, 14% PEG4K	Resolution 2.20 Å R-free 0.277
5FA6 wild type human CYPOR Deposited 2015-12-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 64–677（614 aa） Fragment：UNP residues 64-677	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；MES buffer, PEG 4K, CaAc2 and NaCl	Resolution 2.30 Å R-free 0.280
5FA6 wild type human CYPOR Deposited 2015-12-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 64–677（614 aa） Fragment：UNP residues 64-677	Not recorded	FMN FLAVIN MONONUCLEOTIDE × 1 FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；MES buffer, PEG 4K, CaAc2 and NaCl	Resolution 2.30 Å R-free 0.280

8 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NCPR_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–181； UniProt 61–241

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1b1c
Deposition date deposition_date	1998-11-19
Structure title title	CRYSTAL STRUCTURE OF THE FMN-BINDING DOMAIN OF HUMAN CYTOCHROME P450 REDUCTASE AT 1.93A RESOLUTION
Keywords keywords	FLAVOPROTEIN, CYTOCHROME P450 REDUCTASE, P450 REDUCTASE, FMN-BINDING DOMAIN, FMN, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.57 Å
Radius of gyration Rg (electron density) rg_electron	15.01 Å
Forward intensity I(0) i0	7441140.00
Molecular weight molecular_weight	19275.0 kDa
Excluded volume excluded_volume	23733 Å³
Envelope volume envelope_volume	26335 Å³
Hydration-shell volume shell_volume	14603 Å³
Envelope diameter envelope_diameter	48.5 Å
Shell Rg shell_rg	21.20 Å
Envelope Rg envelope_rg	15.31 Å
Shape Rg shape_rg	15.00 Å
Total Rg total_rg	16.11 Å
Total atoms total_atoms	1357
Residues n_residues	166
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

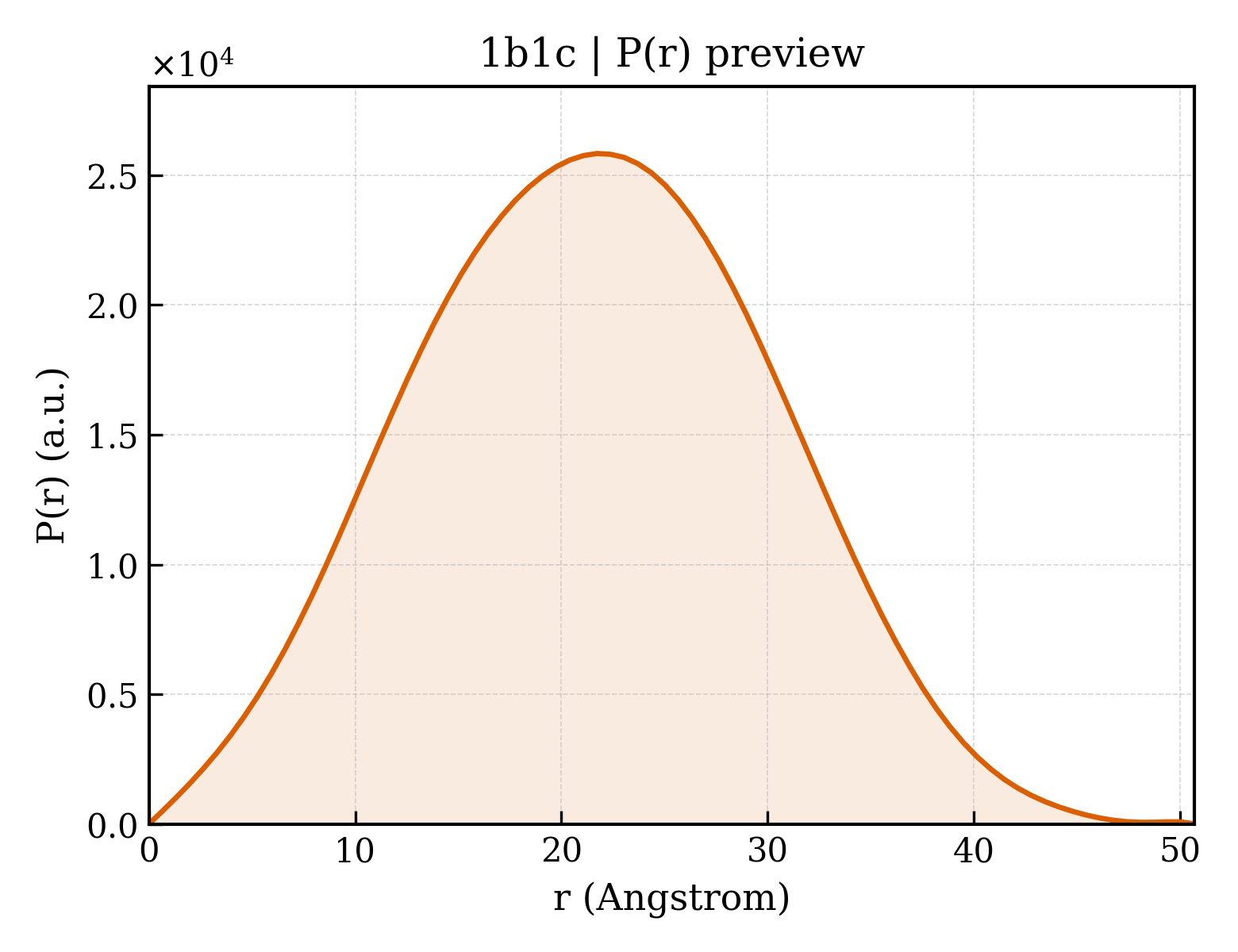

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	50.7 Å
Rg (real space) rg_real	16.43 Å
Rg uncertainty (real space) rg_real_error	0.21 Å
I(0) (real space) i0_real	7.4410e+06
I(0) uncertainty (real space) i0_real_error	7.3270e+04
Rg (reciprocal space) rg_reciprocal	16.44 Å
I(0) (reciprocal space) i0_reciprocal	7441000.0000
Solution quality estimate total_estimate	0.9024
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.7 Å
Skewness Skewness skewness	0.069
Kurtosis Kurtosis kurtosis	-0.452
Angular range angular_range	— – 0.4800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1246000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.999

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PROTEIN (NADPH-CYTOCHROME P450 REDUCTASE)
Molecular weight formula_weight	20380.3 kDa
EC 编号 ec_number	1.6.2.4
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1418

TSSVRESSFVEKMKKTGRNIIVFYGSQTGTAEEFANRLSKDAHRYGMRGMSADPEEYDLADLSSLPEIDNALVVFCMATYGEGDPTDNAQDFYDWLQETDVDLSGVKFAVFGLGNKTYEHFNAMGKYVDKRLEQLGAQRIFELGLGDDDGNLEEDFITWREQFWPAVCEHFGVEATGEESS

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	61

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1b1ca_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.5 — Flavoproteins
Family Family family	c.23.5.2 — Cytochrome p450 reductase N-terminal domain-like

CATH v4.4 (1 domains)

Domain ID domain_id	1b1cA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	360 — Flavodoxin domain

▶

8. Citations (2)

▶

Unit-cell length a length_a	39.310 Å
Unit-cell length b length_b	51.440 Å
Unit-cell length c length_c	47.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	105.93 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.930 Å
Low-resolution limit resolution_low	19.450 Å
R factor r_factor	—
R_work r_work	0.1973
R_free r_free	0.2430
