3qfr

Crystal Structure of Human NADPH-Cytochrome P450 Reductase (R457H Mutant)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NADPH--cytochrome P450 reductase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	FLAVIN-ADENINE DINUCLEOTIDE × 1 FLAVIN MONONUCLEOTIDE × 1 NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 CALCIUM ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	FLAVIN-ADENINE DINUCLEOTIDE × 1 FLAVIN MONONUCLEOTIDE × 1 NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NCPR_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–618； UniProt 64–677 Author chain B； PDBConstruct 5–618； UniProt 64–677

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3qfr
Deposition date deposition_date	2011-01-22
Structure title title	Crystal Structure of Human NADPH-Cytochrome P450 Reductase (R457H Mutant)
Keywords keywords	NADPH-Cytochrome P450 Reductase, flavoprotein, Antley-Bixler syndrome, FAD, FMN, NADPH, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3qfr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3qfr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

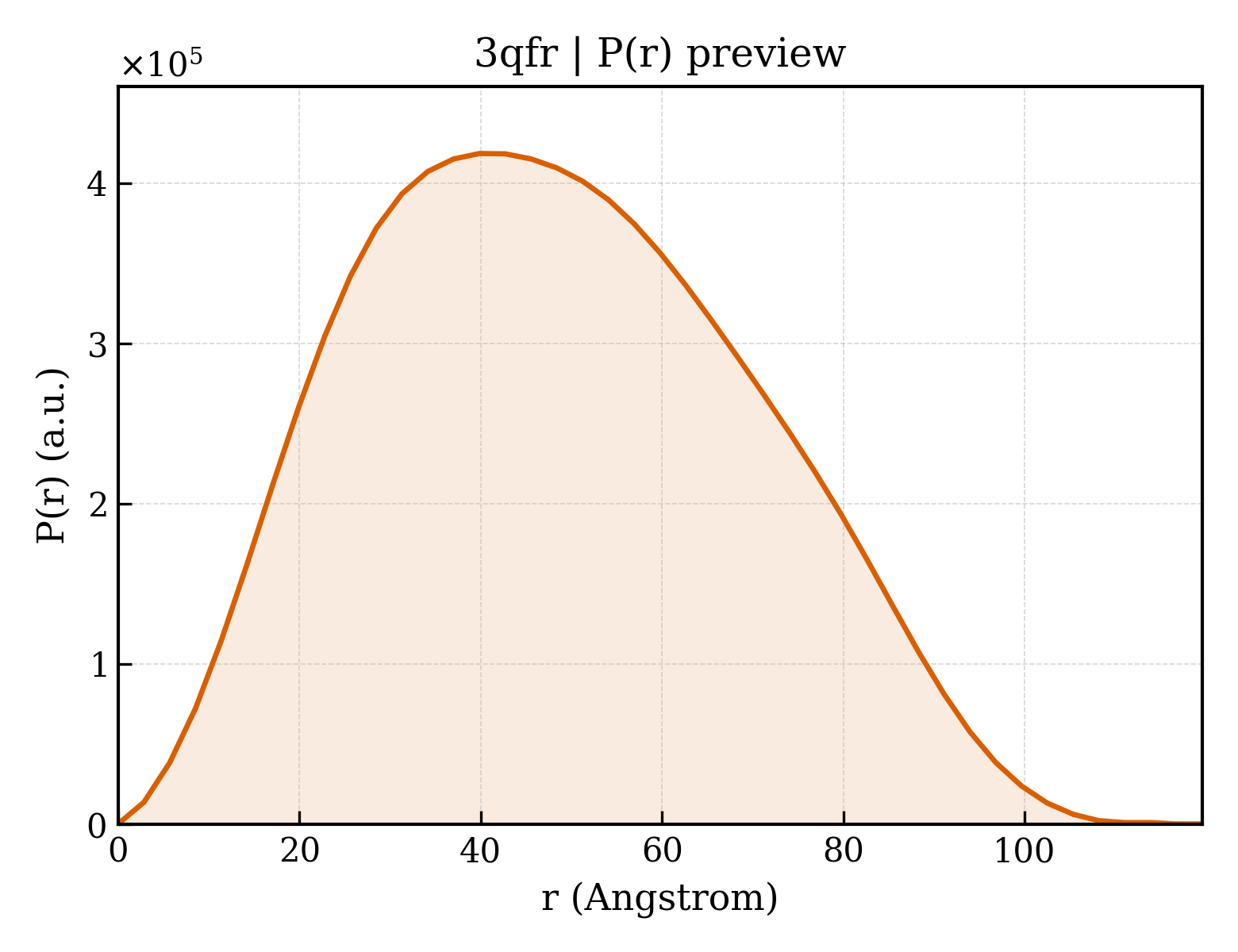

3qfr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.66 Å
Rg (electron density)	25.69 Å
Total Rg	26.54 Å
Atom count	4929
Residues	604
Excluded volume	86813 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3qfr__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3qfr__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	NADPH--cytochrome P450 reductase
Molecular weight formula_weight	70066.8 kDa
EC 编号 ec_number	1.6.2.4
Mutation mutation	R454H
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	9964

GSHMVRESSFVEKMKKTGRNIIVFYGSQTGTAEEFANRLSKDAHRYGMRGMSADPEEYDLADLSSLPEIDNALVVFCMATYGEGDPTDNAQDFYDWLQETDVDLSGVKFAVFGLGNKTYEHFNAMGKYVDKRLEQLGAQRIFELGLGDDDGNLEEDFITWREQFWPAVCEHFGVEATGEESSIRQYELVVHTDIDAAKVYMGEMGRLKSYENQKPPFDAKNPFLAAVTTNRKLNQGTERHLMHLELDISDSKIRYESGDHVAVYPANDSALVNQLGKILGADLDVVMSLNNLDEESNKKHPFPCPTSYRTALTYYLDITNPPRTNVLYELAQYASEPSEQELLRKMASSSGEGKELYLSWVVEARRHILAILQDCPSLRPPIDHLCELLPRLQAHYYSIASSSKVHPNSVHICAVVVEYETKAGRINKGVATNWLRAKEPAGENGGRALVPMFVRKSQFRLPFKATTPVIMVGPGTGVAPFIGFIQERAWLRQQGKEVGETLLYYGCRRSDEDYLYREELAQFHRDGALTQLNVAFSREQSHKVYVQHLLKQDREHLWKLIEGGAHIYVCGDARNMARDVQNTFYDIVAELGAMEHAQAVDYIKKLMTKGRYSLDVWS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	743.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	100

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d3qfra1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.5 — Flavoproteins
Family Family family	c.23.5.0 — automated matches

Domain ID domain_id	d3qfra2
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.4 — Riboflavin synthase domain-like
Family Family family	b.43.4.1 — NADPH-cytochrome p450 reductase FAD-binding domain-like

Domain ID domain_id	d3qfra3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.25 — Ferredoxin reductase-like, C-terminal NADP-linked domain
Superfamily Superfamily superfamily	c.25.1 — Ferredoxin reductase-like, C-terminal NADP-linked domain
Family Family family	c.25.1.0 — automated matches

Domain ID domain_id	d3qfrb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.5 — Flavoproteins
Family Family family	c.23.5.0 — automated matches

Domain ID domain_id	d3qfrb2
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.4 — Riboflavin synthase domain-like
Family Family family	b.43.4.1 — NADPH-cytochrome p450 reductase FAD-binding domain-like

Domain ID domain_id	d3qfrb3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.25 — Ferredoxin reductase-like, C-terminal NADP-linked domain
Superfamily Superfamily superfamily	c.25.1 — Ferredoxin reductase-like, C-terminal NADP-linked domain
Family Family family	c.25.1.0 — automated matches

CATH v4.4 (8 domains)

Domain ID domain_id	3qfrA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	360 — Flavodoxin domain

Domain ID domain_id	3qfrA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	3qfrA03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	990 — NADPH-cytochrome p450 Reductase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — NADPH-cytochrome p450 Reductase; Chain A, domain 3

Domain ID domain_id	3qfrA04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	80 — Nucleotide-binding domain of ferredoxin-NADP reductase (FNR) module

Domain ID domain_id	3qfrB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	360 — Flavodoxin domain

Domain ID domain_id	3qfrB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	3qfrB03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	990 — NADPH-cytochrome p450 Reductase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — NADPH-cytochrome p450 Reductase; Chain A, domain 3

Domain ID domain_id	3qfrB04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	80 — Nucleotide-binding domain of ferredoxin-NADP reductase (FNR) module

▶

Unit-cell length a length_a	70.276 Å
Unit-cell length b length_b	120.393 Å
Unit-cell length c length_c	156.345 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	45.720 Å
R factor r_factor	0.2270
R_work r_work	0.2270
R_free r_free	0.2850
