1b2o
CLOSTRIDIUM PASTEURIANUM RUBREDOXIN G10VG43A MUTANT
SAXS Profile

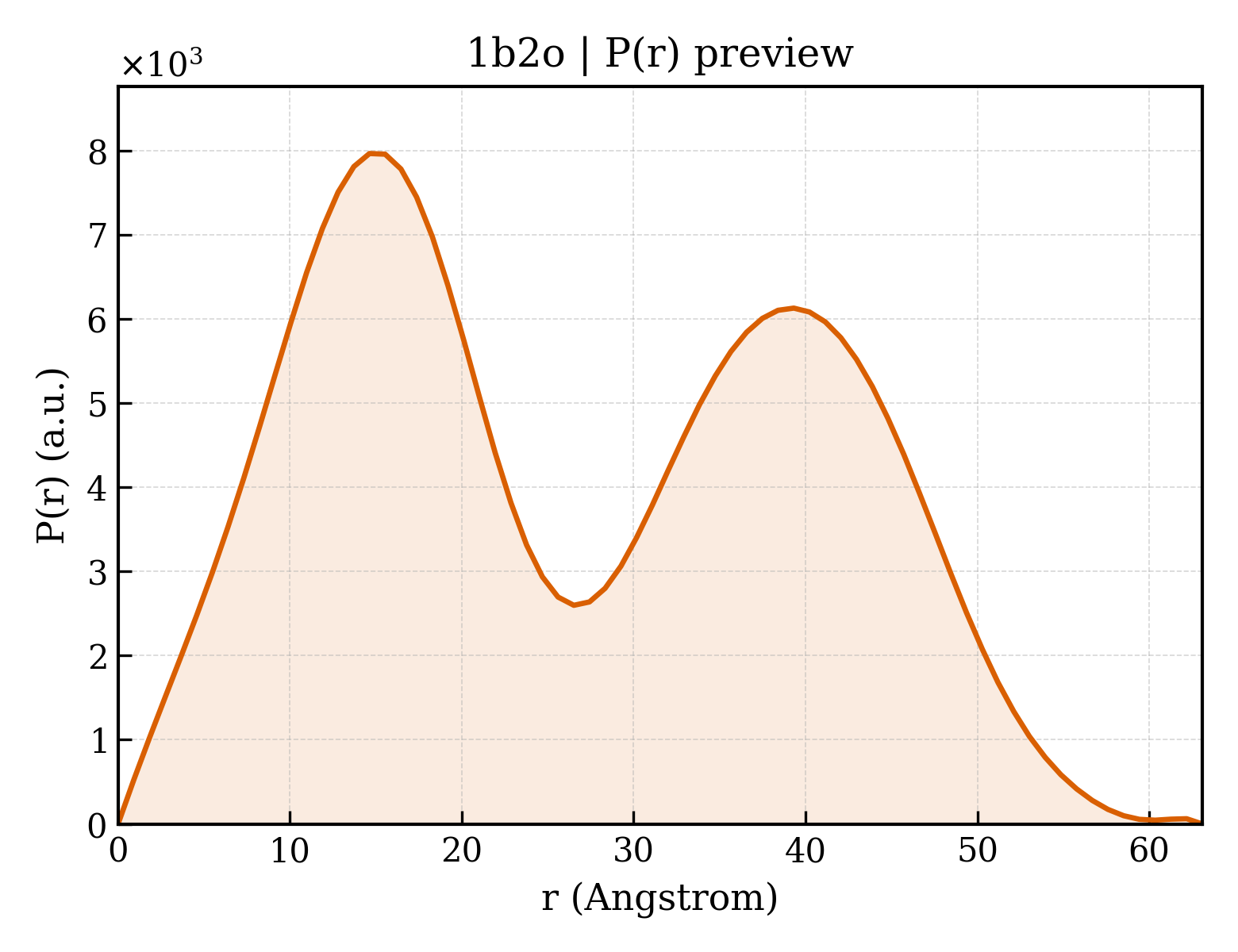

P(r) Distribution
1. Structure Basics
| entry_id | 1b2o |
| deposition_date | 1998-11-30 |
| title | CLOSTRIDIUM PASTEURIANUM RUBREDOXIN G10VG43A MUTANT |
| keywords | ELECTRON TRANSPORT, METALLOPROTEIN, IRON SULFUR, ELECTRON TRANSFER; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.03 Å |
| rg_electron | 20.42 Å |
| i0 | 3010740.00 |
| molecular_weight | 12267.0 kDa |
| excluded_volume | 14981 ų |
| envelope_volume | 20512 ų |
| shell_volume | 8668 ų |
| envelope_diameter | 62.6 Å |
| shell_rg | 25.90 Å |
| envelope_rg | 19.76 Å |
| shape_rg | 20.40 Å |
| total_rg | 21.29 Å |
| total_atoms | 852 |
| n_residues | 108 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 63.1 Å |
| rg_real | 21.17 Å |
| rg_real_error | 0.45 Å |
| i0_real | 3.0110e+06 |
| i0_real_error | 3.7930e+04 |
| rg_reciprocal | 21.15 Å |
| i0_reciprocal | 3011000.0000 |
| total_estimate | 0.6890 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 14.6 Å |
| skewness | 0.156 |
| kurtosis | -1.214 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 458400.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.174; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.447; Smooth: 0.985 |
