1be7
CLOSTRIDIUM PASTEURIANUM RUBREDOXIN C42S MUTANT
SAXS Profile

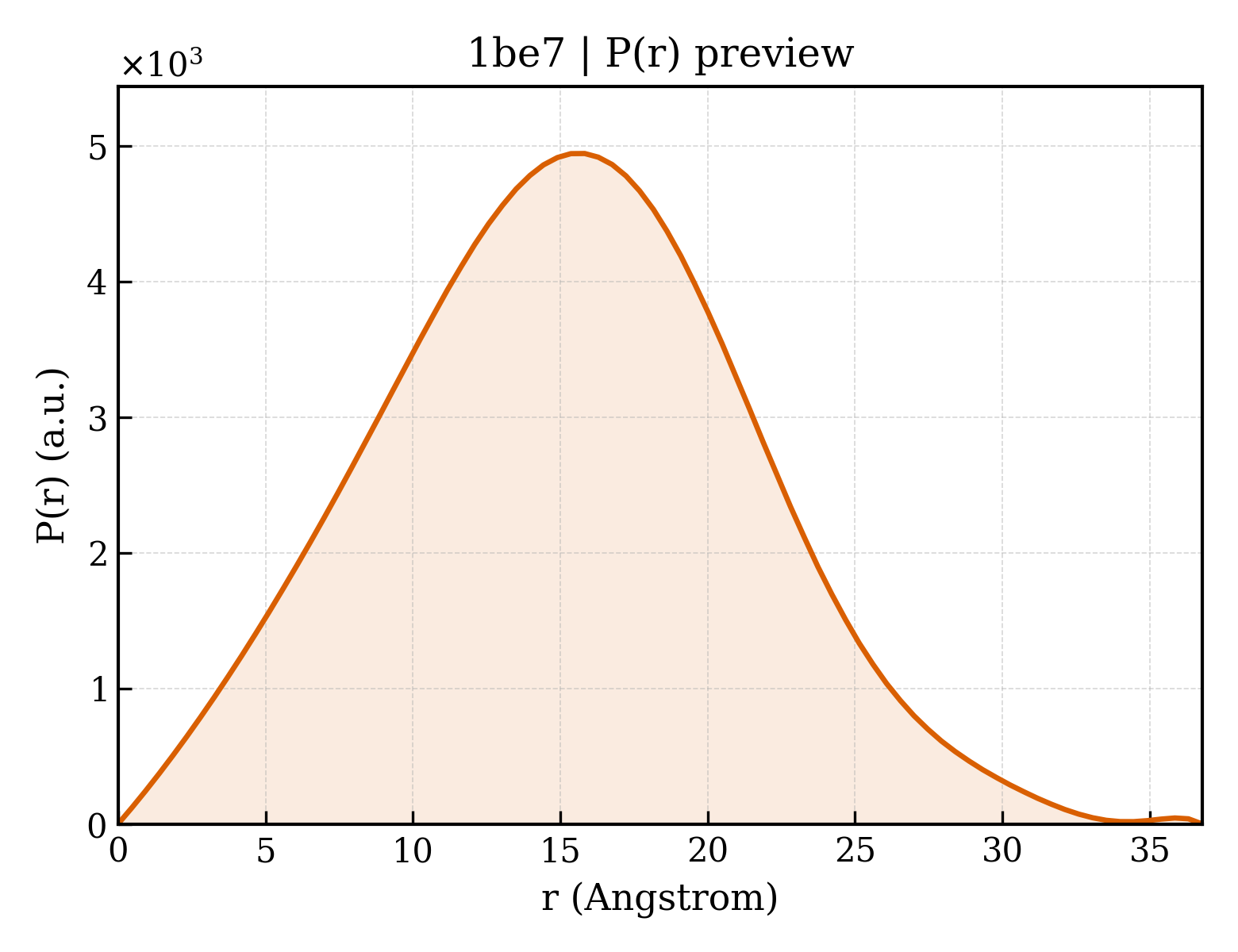

P(r) Distribution
1. Structure Basics
| entry_id | 1be7 |
| deposition_date | 1998-05-20 |
| title | CLOSTRIDIUM PASTEURIANUM RUBREDOXIN C42S MUTANT |
| keywords | ELECTRON TRANSPORT, METALLOPROTEIN, IRON SULFUR, ELECTRON TRANSFER; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.68 Å |
| rg_electron | 10.12 Å |
| i0 | 974205.00 |
| molecular_weight | 6078.0 kDa |
| excluded_volume | 7386 ų |
| envelope_volume | 8110 ų |
| shell_volume | 7116 ų |
| envelope_diameter | 34.7 Å |
| shell_rg | 15.23 Å |
| envelope_rg | 10.48 Å |
| shape_rg | 10.08 Å |
| total_rg | 11.61 Å |
| total_atoms | 423 |
| n_residues | 54 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 36.8 Å |
| rg_real | 11.59 Å |
| rg_real_error | 0.25 Å |
| i0_real | 9.7420e+05 |
| i0_real_error | 9.7440e+03 |
| rg_reciprocal | 11.60 Å |
| i0_reciprocal | 974200.0000 |
| total_estimate | 0.8895 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.8 Å |
| skewness | 0.102 |
| kurtosis | -0.293 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 117300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.863; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.974 |
