1b68
APOLIPOPROTEIN E4 (APOE4), 22K FRAGMENT
SAXS Profile

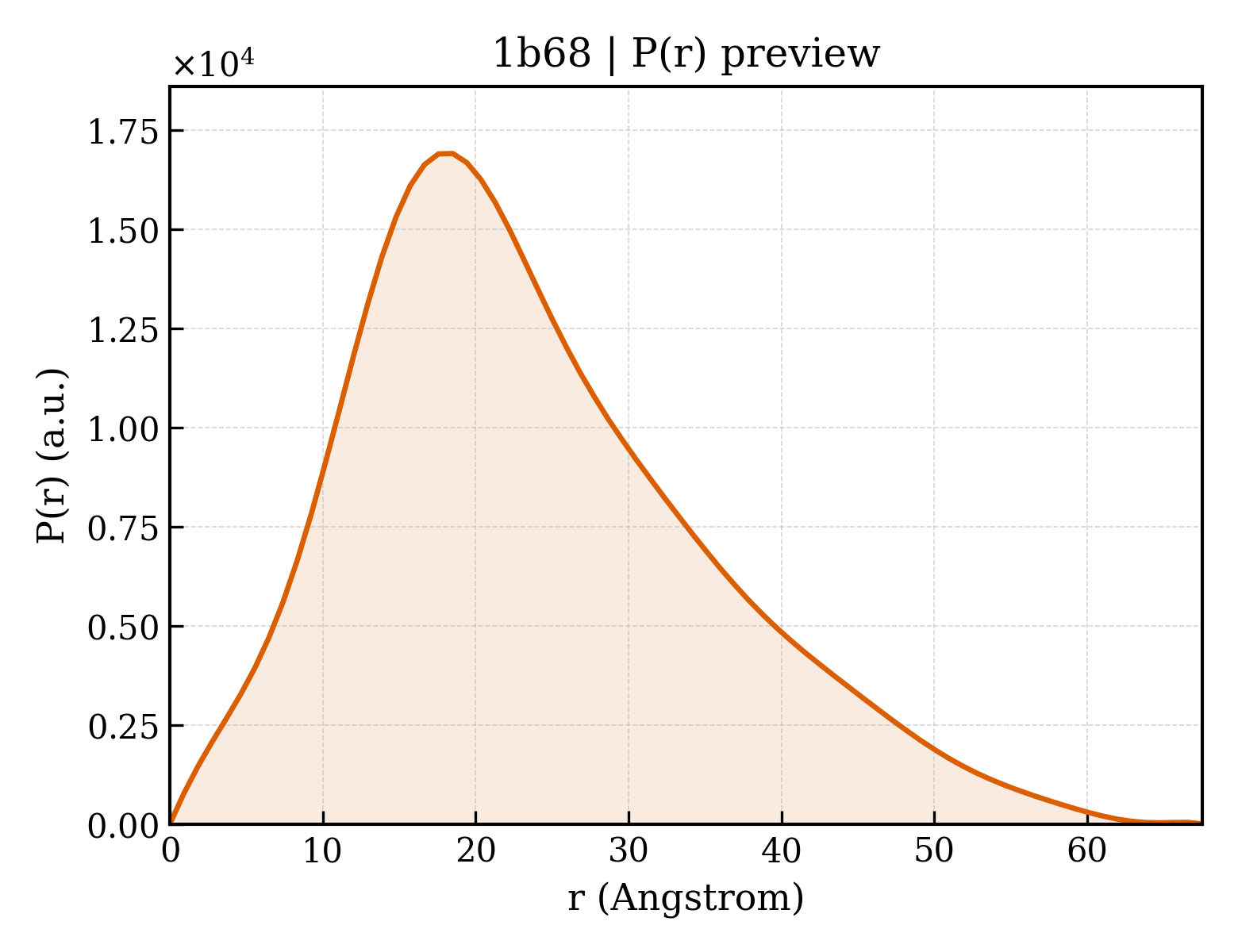

P(r) Distribution
1. Structure Basics
| entry_id | 1b68 |
| deposition_date | 1999-01-21 |
| title | APOLIPOPROTEIN E4 (APOE4), 22K FRAGMENT |
| keywords | LIPID TRANSPORT, HEPARIN-BINDING, PLASMA PROTEIN, HDL, VLDL; LIPID TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.44 Å |
| rg_electron | 17.68 Å |
| i0 | 5343000.00 |
| molecular_weight | 16232.0 kDa |
| excluded_volume | 20181 ų |
| envelope_volume | 23988 ų |
| shell_volume | 12532 ų |
| envelope_diameter | 66.5 Å |
| shell_rg | 22.20 Å |
| envelope_rg | 18.39 Å |
| shape_rg | 17.66 Å |
| total_rg | 18.50 Å |
| total_atoms | 1140 |
| n_residues | 138 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 67.5 Å |
| rg_real | 18.63 Å |
| rg_real_error | 0.49 Å |
| i0_real | 5.3430e+06 |
| i0_real_error | 6.9320e+04 |
| rg_reciprocal | 18.60 Å |
| i0_reciprocal | 5343000.0000 |
| total_estimate | 0.7783 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.5 Å |
| skewness | 0.635 |
| kurtosis | 0.032 |
| angular_range | — – 0.4300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1431000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.471; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.703; Smooth: 0.999 |
