1bz4
APOLIPOPROTEIN E3 (APO-E3), TRUNCATION MUTANT 165
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bz4 |
| deposition_date | 1998-11-05 |
| title | APOLIPOPROTEIN E3 (APO-E3), TRUNCATION MUTANT 165 |
| keywords | LIPID TRANSPORT, HEPARIN-BINDING, PLASMA PROTEIN, HDL, VLDL, LIPID BINDING PROTEIN; LIPID BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.76 Å |
| rg_electron | 18.16 Å |
| i0 | 5657320.00 |
| molecular_weight | 16734.0 kDa |
| excluded_volume | 20776 ų |
| envelope_volume | 24474 ų |
| shell_volume | 12626 ų |
| envelope_diameter | 68.0 Å |
| shell_rg | 22.39 Å |
| envelope_rg | 18.63 Å |
| shape_rg | 18.16 Å |
| total_rg | 18.89 Å |
| total_atoms | 1174 |
| n_residues | 144 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

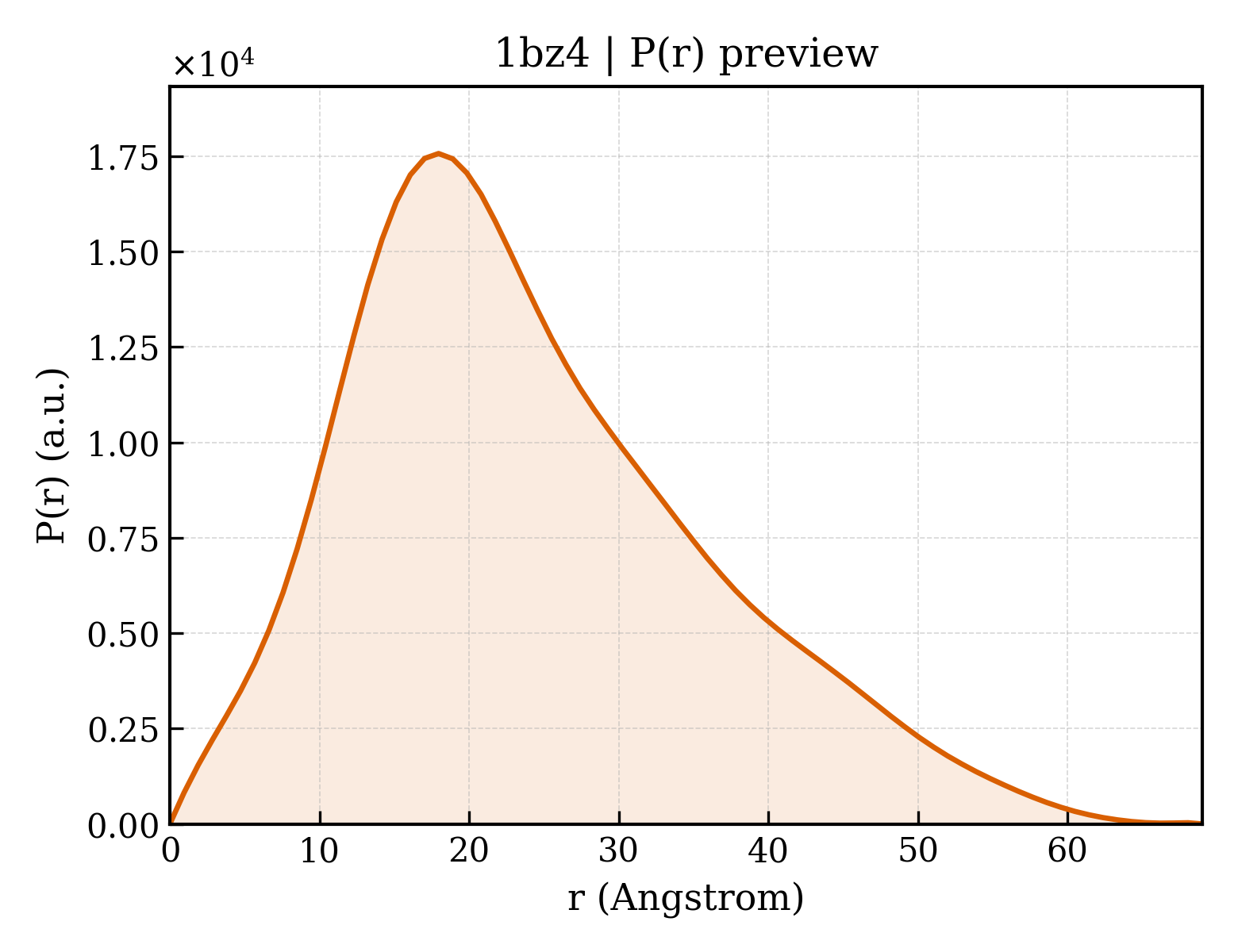

3. P(r) Analysis (GNOM)
| dmax | 69.0 Å |
| rg_real | 18.96 Å |
| rg_real_error | 0.58 Å |
| i0_real | 5.6570e+06 |
| i0_real_error | 8.0410e+04 |
| rg_reciprocal | 18.93 Å |
| i0_reciprocal | 5657000.0000 |
| total_estimate | 0.7671 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.0 Å |
| skewness | 0.634 |
| kurtosis | -0.032 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1504000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.448; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.627; Smooth: 0.998 |
