1b7y

PHENYLALANYL TRNA SYNTHETASE COMPLEXED WITH PHENYLALANINYL-ADENYLATE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (PHENYLALANYL-TRNA SYNTHETASE)

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	PROTEIN (PHENYLALANYL-TRNA SYNTHETASE) × 2 （P27002） MAGNESIUM ION × 2 ADENOSINE-5'-[PHENYLALANINOL-PHOSPHATE] × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SYFA_THETH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–350； UniProt 1–350

PROTEIN (PHENYLALANYL-TRNA SYNTHETASE)

OrganismNot specified

UniProt P27002

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	PROTEIN (PHENYLALANYL-TRNA SYNTHETASE) × 2 （P27001） MAGNESIUM ION × 2 ADENOSINE-5'-[PHENYLALANINOL-PHOSPHATE] × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SYFB_THETH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–785； UniProt 1–785

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1b7y
Deposition date deposition_date	1999-01-26
Structure title title	PHENYLALANYL TRNA SYNTHETASE COMPLEXED WITH PHENYLALANINYL-ADENYLATE
Keywords keywords	ENZYME, TRNA SYNTHETASE, ALPHA/BETA HOMODIMER, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1b7y__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1b7y__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

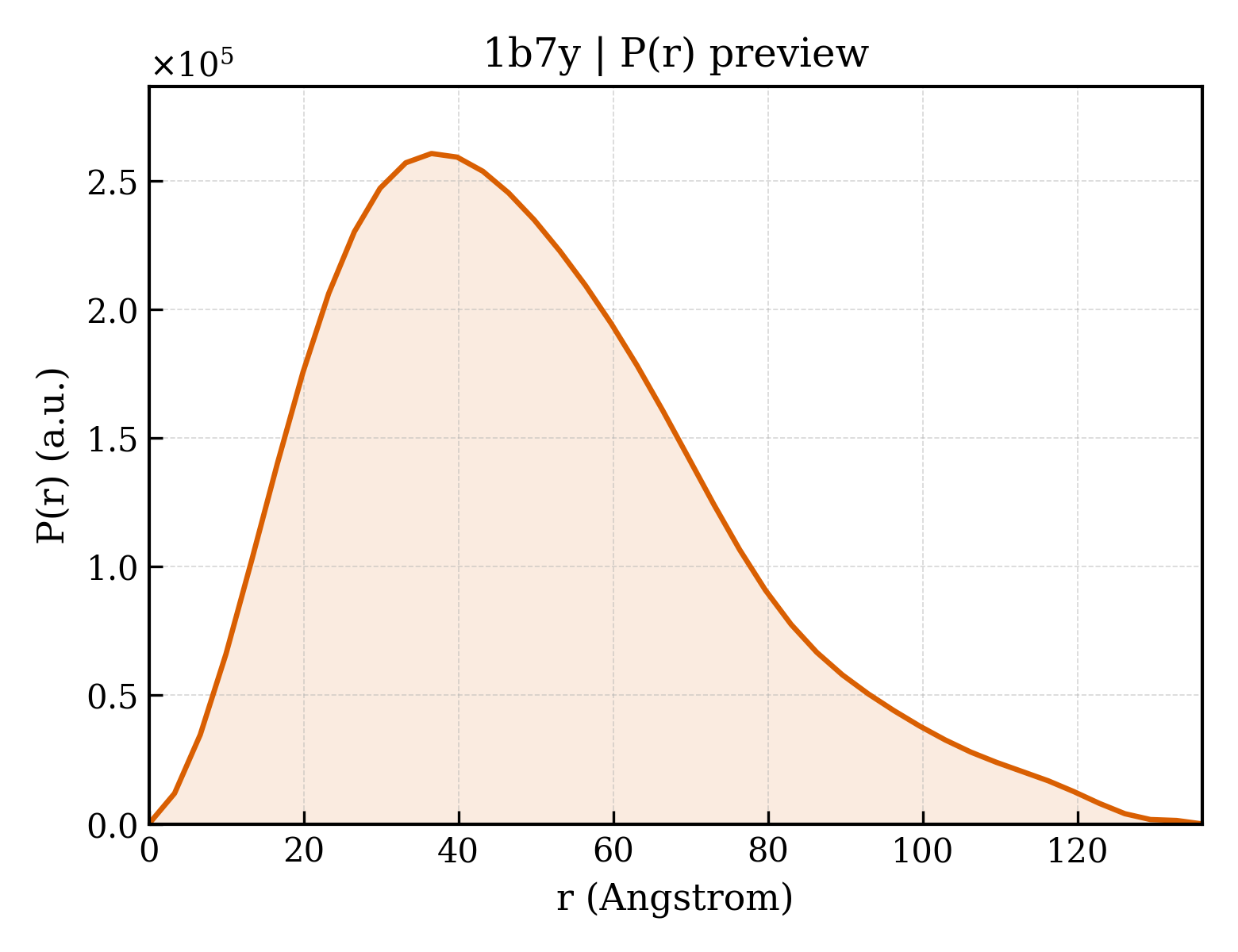

1b7y__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.38 Å
Rg (electron density)	48.45 Å
Total Rg	48.64 Å
Atom count	16400
Residues	2080
Excluded volume	292820 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1b7y__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	PROTEIN (PHENYLALANYL-TRNA SYNTHETASE)
Molecular weight formula_weight	39309.2 kDa
EC 编号 ec_number	6.1.1.20
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8439

MLEEALAAIQNARDLEELKALKARYLGKKGLLTQEMKGLSALPLEERRKRGQELNAIKAALEAALEAREKALEEAALKEALERERVDVSLPGASLFSGGLHPITLMERELVEIFRALGYQAVEGPEVESEFFNFDALNIPEHHPARDMWDTFWLTGEGFRLEGPLGEEVEGRLLLRTHTSPMQVRYMVAHTPPFRIVVPGRVFRFEQTDATHEAVFHQLEGLVVGEGIAMAHLKGAIYELAQALFGPDSKVRFQPVYFPFVEPGAQFAVWWPEGGKWLELGGAGMVHPKVFQAVDAYRERLGLPPAYRGVTGFAFGLGVERLAMLRYGIPDIRYFFGGRLKFLEQFKGVL

Entity 2 Entity 2 polymer

Description description	PROTEIN (PHENYLALANYL-TRNA SYNTHETASE)
Molecular weight formula_weight	86720.7 kDa
EC 编号 ec_number	6.1.1.20
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MRVPFSWLKAYVPELESPEVLEERLAGLGFETDRIERVFPIPRGVVFARVLEAHPIPGTRLKRLVLDAGRTVEVVSGAENARKGIGVALALPGTELPGLGQKVGERVIQGVRSFGMALSPRELGVGEYGGGLLEFPEDALPPGTPLSEAWPEEVVLDLEVTPNRPDALGLLGLARDLHALGYALVEPEAALKAEALPLPFALKVEDPEGAPHFTLGYAFGLRVAPSPLWMQRALFAAGMRPINNVVDVTNYVMLERAQPMHAFDLRFVGEGIAVRRAREGERLKTLDGVERTLHPEDLVIAGWRGEESFPLGLAGVMGGAESEVREDTEAIALEVACFDPVSIRKTARRHGLRTEASHRFERGVDPLGQVPAQRRALSLLQALAGARVAEALLEAGSPKPPEAIPFRPEYANRLLGTSYPEAEQIAILKRLGCRVEGEGPTYRVTPPSHRLDLRLEEDLVEEVARIQGYETIPLALPAFFPAPDNRGVEAPYRKEQRLREVLSGLGFQEVYTYSFMDPEDARRFRLDPPRLLLLNPLAPEKAALRTHLFPGLVRVLKENLDLDRPERALLFEVGRVFREREETHLAGLLFGEGVGLPWAKERLSGYFLLKGYLEALFARLGLAFRVEAQAFPFLHPGVSGRVLVEGEEVGFLGALHPEIAQELELPPVHLFELRLPLPDKPLAFQDPSRHPAAFRDLAVVVPAPTPYGEVEALVREAAGPYLESLALFDLYQGPPLPEGHKSLAFHLRFRHPKRTLRDEEVEEAVSRVAEALRARGFGLRGLDTP

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-[PHENYLALANINOL-PHOSPHATE]
Molecular weight formula_weight	480.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	239

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (7 domains)

Domain ID domain_id	d1b7ya_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1b7yb1
Class class	a — All alpha proteins
Fold Fold fold	a.6 — Putative DNA-binding domain
Superfamily Superfamily superfamily	a.6.1 — Putative DNA-binding domain
Family Family family	a.6.1.1 — Domains B1 and B5 of PheRS-beta, PheT

Domain ID domain_id	d1b7yb2
Class class	a — All alpha proteins
Fold Fold fold	a.6 — Putative DNA-binding domain
Superfamily Superfamily superfamily	a.6.1 — Putative DNA-binding domain
Family Family family	a.6.1.1 — Domains B1 and B5 of PheRS-beta, PheT

Domain ID domain_id	d1b7yb3
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.4 — Myf domain

Domain ID domain_id	d1b7yb4
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.13 — Anticodon-binding domain of PheRS
Family Family family	d.58.13.1 — Anticodon-binding domain of PheRS

Domain ID domain_id	d1b7yb5
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1b7yb6
Class class	b — All beta proteins
Fold Fold fold	b.153 — PheT/TilS domain
Superfamily Superfamily superfamily	b.153.1 — PheT/TilS domain
Family Family family	b.153.1.1 — B3/B4 domain of PheRS, PheT

CATH v4.4 (7 domains)

Domain ID domain_id	1b7yA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1b7yB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	56 — Phenylalanyl-tRNA Synthetase; Chain B, domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1b7yB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1b7yB03
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	40 — Phenylalanyl-tRNA Synthetase; Chain B, domain 3
Homologous superfamily homologous superfamily	10 — Phenylalanyl-trna Synthetase, Chain B, domain 3

Domain ID domain_id	1b7yB04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	56 — Phenylalanyl-tRNA Synthetase; Chain B, domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1b7yB05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1b7yB06
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	380 — Ferrodoxin-fold anticodon-binding domain

▶

Unit-cell length a length_a	174.500 Å
Unit-cell length b length_b	174.500 Å
Unit-cell length c length_c	140.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2300
R_free r_free	0.2670
