1b8l
Calcium-bound D51A/E101D/F102W Triple Mutant of Beta Carp Parvalbumin
SAXS Profile

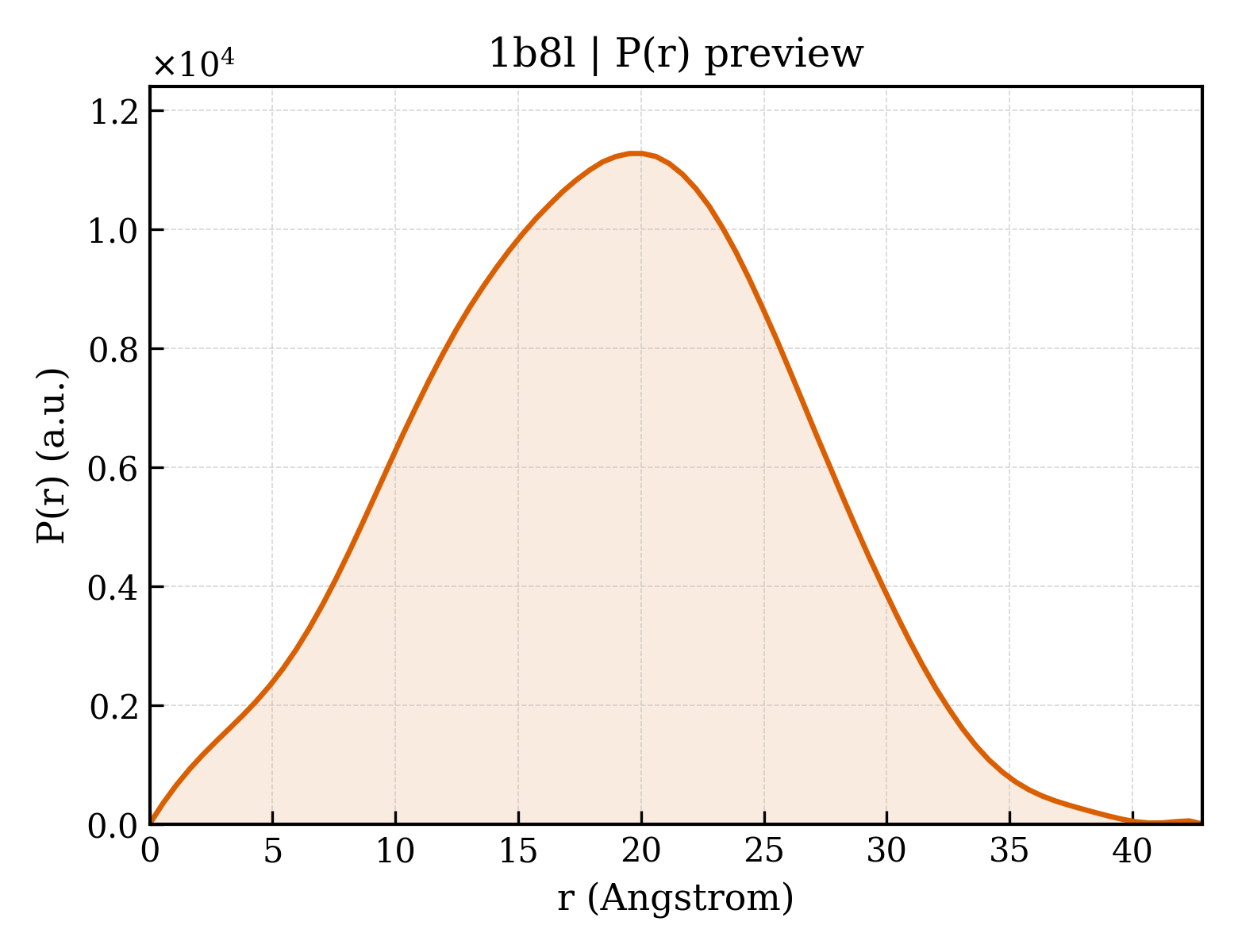

P(r) Distribution
1. Structure Basics
| entry_id | 1b8l |
| deposition_date | 1999-02-01 |
| title | Calcium-bound D51A/E101D/F102W Triple Mutant of Beta Carp Parvalbumin |
| keywords | CALCIUM BINDING PROTEIN, EF-HAND PROTEINS, PARVALBUMIN, CALCIUM-BINDING; CALCIUM BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.28 Å |
| rg_electron | 12.62 Å |
| i0 | 2724950.00 |
| molecular_weight | 11512.0 kDa |
| excluded_volume | 14433 ų |
| envelope_volume | 15750 ų |
| shell_volume | 10686 ų |
| envelope_diameter | 39.1 Å |
| shell_rg | 18.36 Å |
| envelope_rg | 12.82 Å |
| shape_rg | 12.56 Å |
| total_rg | 14.09 Å |
| total_atoms | 811 |
| n_residues | 108 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 42.8 Å |
| rg_real | 14.14 Å |
| rg_real_error | 0.21 Å |
| i0_real | 2.7250e+06 |
| i0_real_error | 2.9550e+04 |
| rg_reciprocal | 14.15 Å |
| i0_reciprocal | 2725000.0000 |
| total_estimate | 0.7519 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 42.3 Å |
| skewness | -0.017 |
| kurtosis | -0.424 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 331300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.910; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.976; Smooth: 0.962 |
