1b9o
HUMAN ALPHA-LACTALBUMIN, LOW TEMPERATURE FORM
SAXS Profile

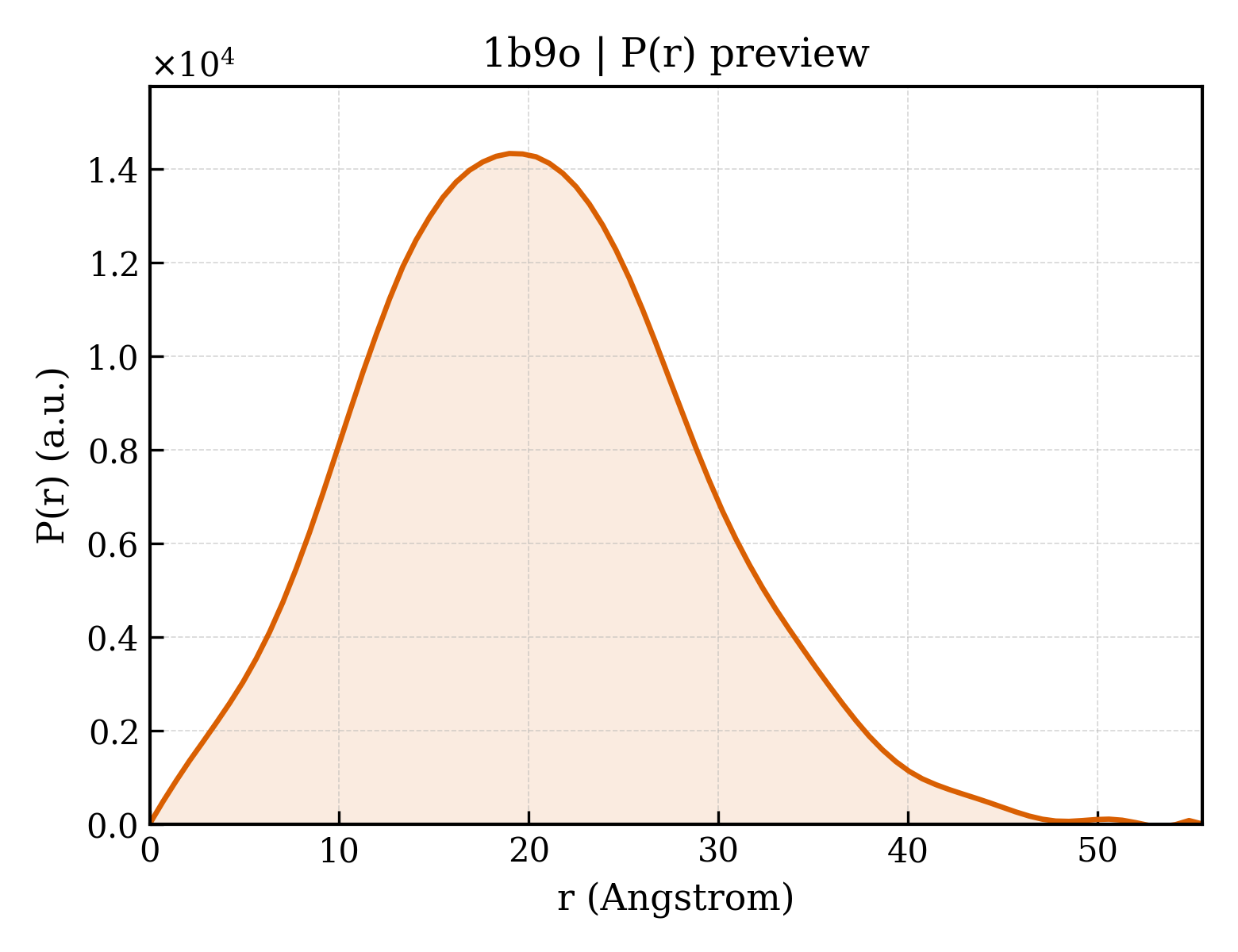

P(r) Distribution
1. Structure Basics
| entry_id | 1b9o |
| deposition_date | 1999-02-14 |
| title | HUMAN ALPHA-LACTALBUMIN, LOW TEMPERATURE FORM |
| keywords | CALCIUM-BINDING PROTEIN, HIGH RESOLUTION; CALCIUM-BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.53 Å |
| rg_electron | 14.26 Å |
| i0 | 3939540.00 |
| molecular_weight | 14111.0 kDa |
| excluded_volume | 17659 ų |
| envelope_volume | 19838 ų |
| shell_volume | 12000 ų |
| envelope_diameter | 54.6 Å |
| shell_rg | 19.85 Å |
| envelope_rg | 14.71 Å |
| shape_rg | 14.24 Å |
| total_rg | 15.46 Å |
| total_atoms | 984 |
| n_residues | 123 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 55.5 Å |
| rg_real | 15.48 Å |
| rg_real_error | 0.45 Å |
| i0_real | 3.9400e+06 |
| i0_real_error | 4.7590e+04 |
| rg_reciprocal | 15.49 Å |
| i0_reciprocal | 3940000.0000 |
| total_estimate | 0.7664 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 19.0 Å |
| skewness | 0.285 |
| kurtosis | -0.147 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 576800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.667; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.960; Smooth: 0.000 |
