1b9p
NMR STRUCTURE OF HEPARIN BINDING SITE OF NON COLLAGENOUS DOMAIN I (NC1) OF COLLAGEN FACIT XIV

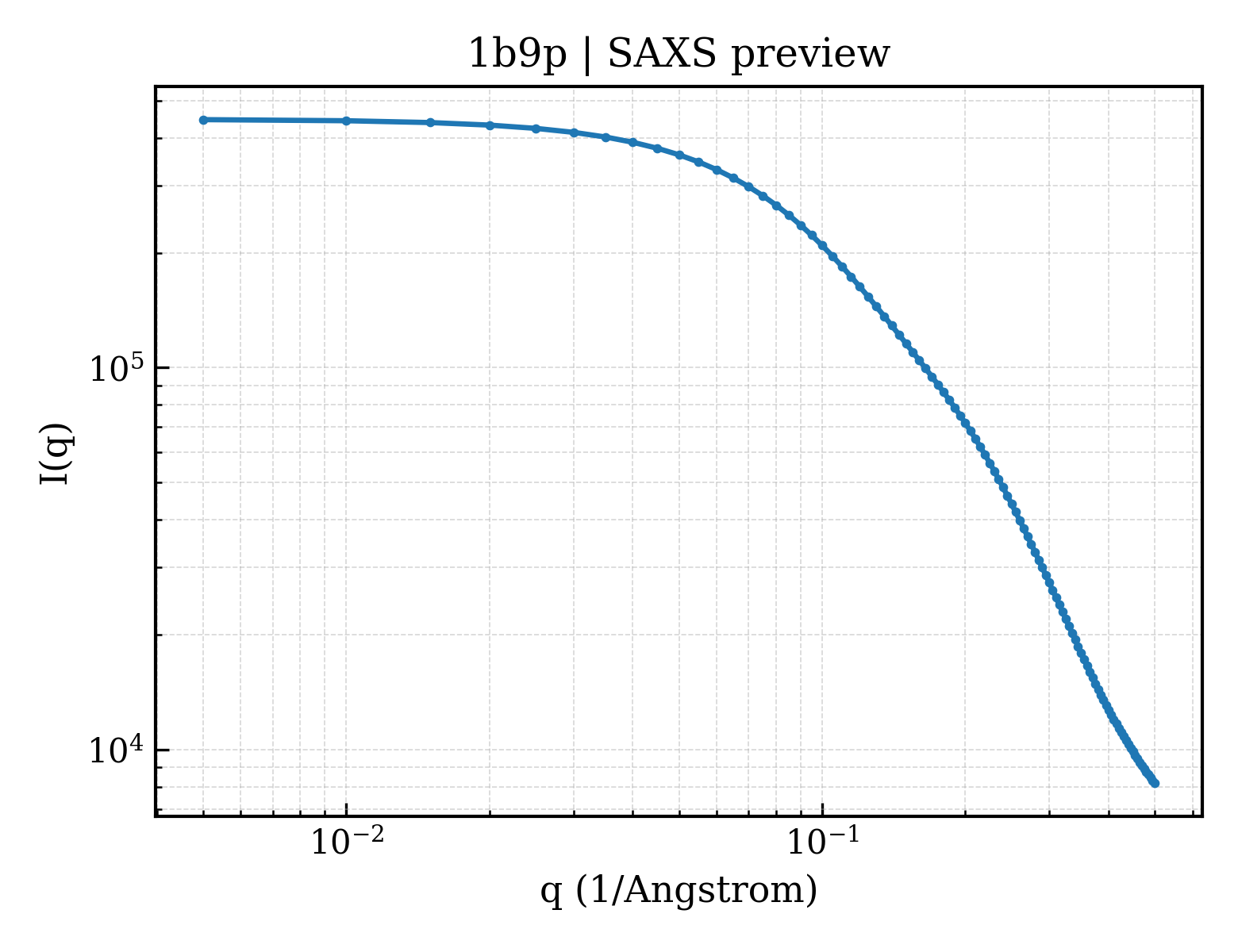

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1b9p |
| deposition_date | 1999-02-15 |
| title | NMR STRUCTURE OF HEPARIN BINDING SITE OF NON COLLAGENOUS DOMAIN I (NC1) OF COLLAGEN FACIT XIV |
| keywords | COLLAGEN FACIT XIV, HEPARIN-BINDING SITE, NC1; COLLAGEN FACIT XIV |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.91 Å |
| rg_electron | 15.48 Å |
| i0 | 447021.00 |
| molecular_weight | 4016.0 kDa |
| excluded_volume | 5013 ų |
| envelope_volume | 7431 ų |
| shell_volume | 5199 ų |
| envelope_diameter | 59.1 Å |
| shell_rg | 17.74 Å |
| envelope_rg | 15.84 Å |
| shape_rg | 15.39 Å |
| total_rg | 16.36 Å |
| total_atoms | 588 |
| n_residues | 34 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 61.1 Å |
| rg_real | 16.28 Å |
| rg_real_error | 0.65 Å |
| i0_real | 4.4700e+05 |
| i0_real_error | 5.6820e+03 |
| rg_reciprocal | 16.24 Å |
| i0_reciprocal | 447000.0000 |
| total_estimate | 0.7024 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 11.6 Å |
| skewness | 0.617 |
| kurtosis | -0.325 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 54250.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.377; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.029; Smooth: 0.968 |
