1ba2
D67R MUTANT OF D-RIBOSE-BINDING PROTEIN FROM ESCHERICHIA COLI

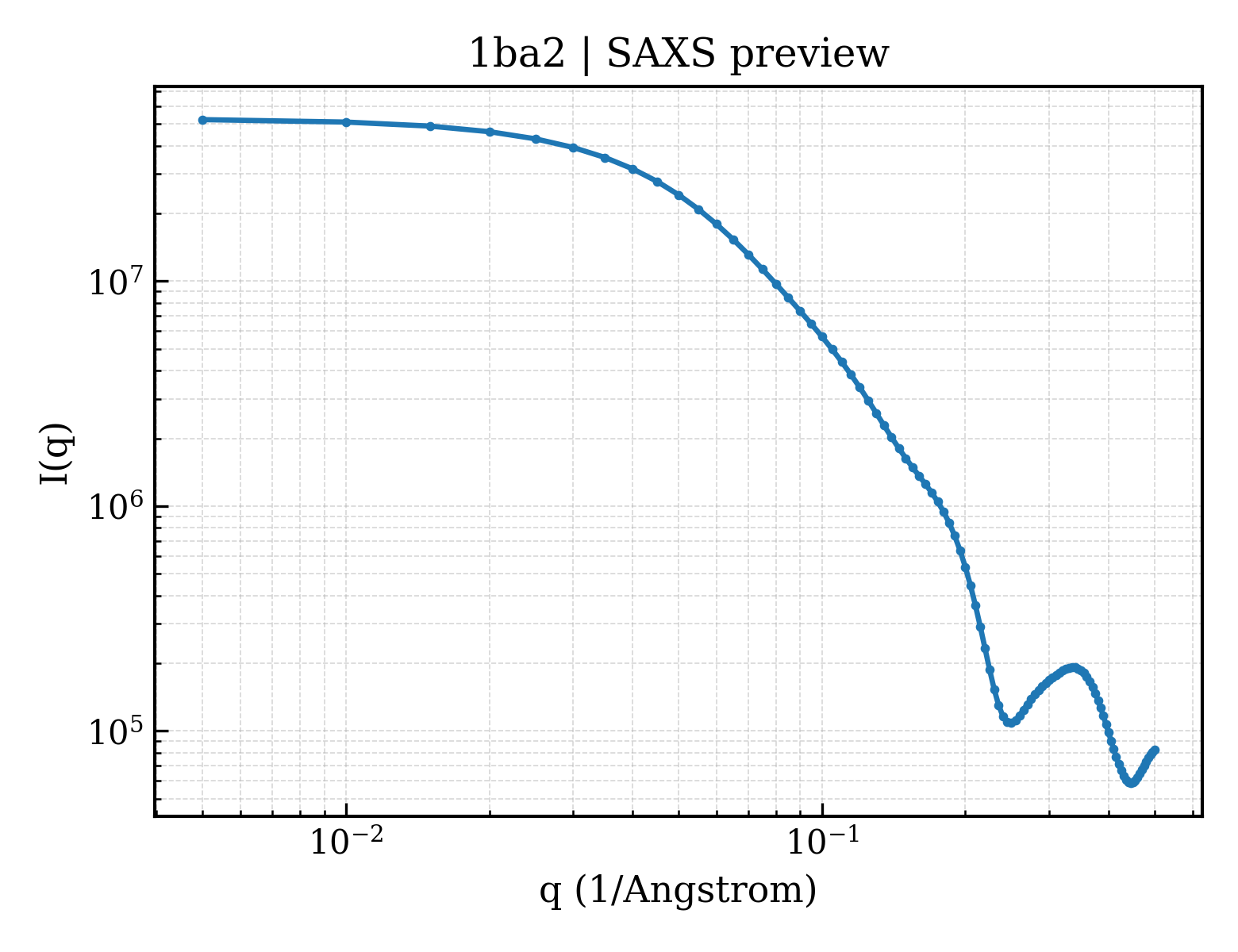

SAXS Profile

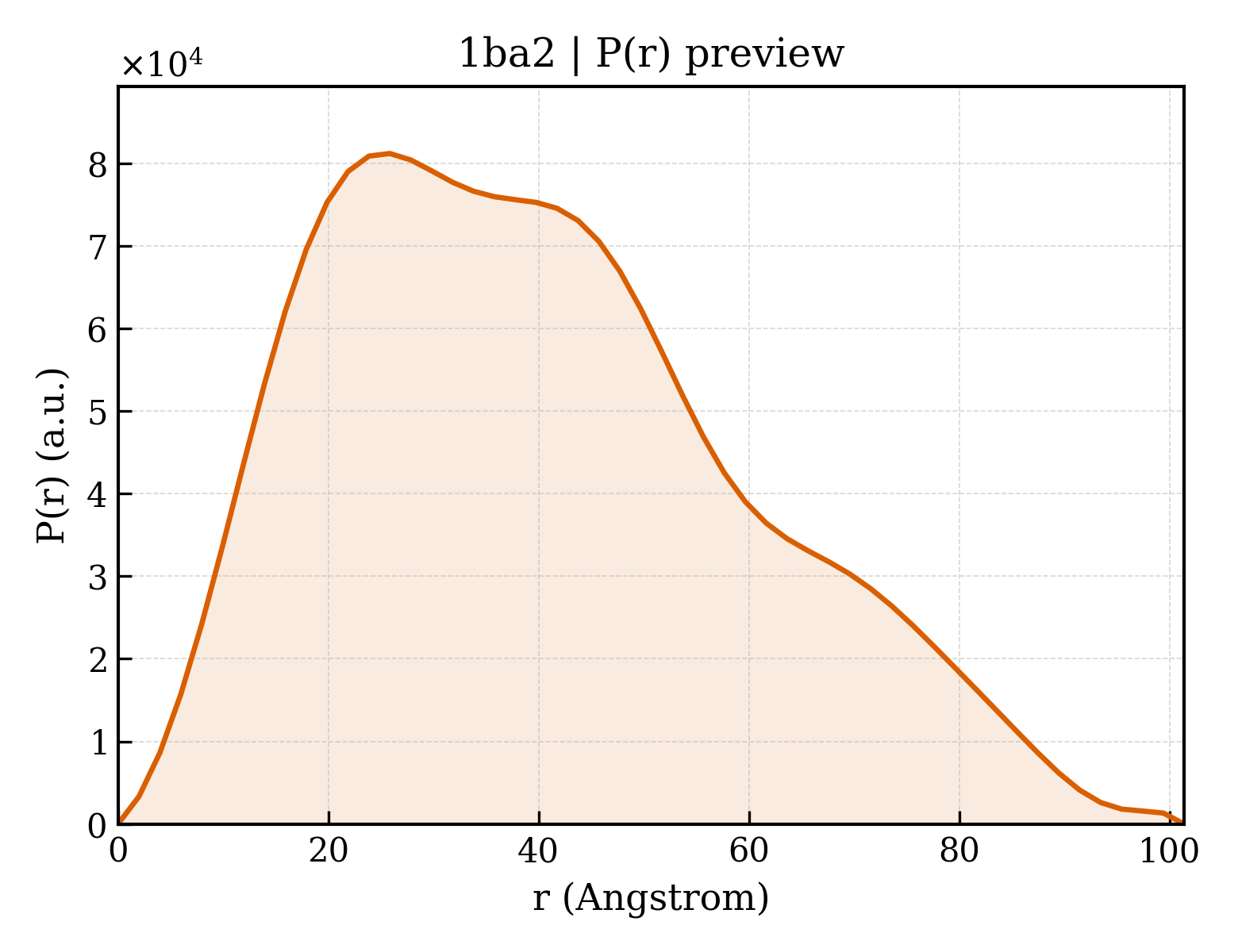

P(r) Distribution
1. Structure Basics
| entry_id | 1ba2 |
| deposition_date | 1998-04-19 |
| title | D67R MUTANT OF D-RIBOSE-BINDING PROTEIN FROM ESCHERICHIA COLI |
| keywords | TRANSPORT, CHEMOTAXIS, PERIPLASM; TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 31.25 Å |
| rg_electron | 31.30 Å |
| i0 | 52715600.00 |
| molecular_weight | 57031.0 kDa |
| excluded_volume | 71646 ų |
| envelope_volume | 91222 ų |
| shell_volume | 26755 ų |
| envelope_diameter | 105.8 Å |
| shell_rg | 34.96 Å |
| envelope_rg | 31.01 Å |
| shape_rg | 31.27 Å |
| total_rg | 31.74 Å |
| total_atoms | 4010 |
| n_residues | 542 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 101.4 Å |
| rg_real | 31.54 Å |
| rg_real_error | 0.64 Å |
| i0_real | 5.2720e+07 |
| i0_real_error | 8.4600e+05 |
| rg_reciprocal | 31.42 Å |
| i0_reciprocal | 52710000.0000 |
| total_estimate | 0.8364 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 25.9 Å |
| skewness | 0.473 |
| kurtosis | -0.455 |
| angular_range | — – 0.2550 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 19540000.0000 |
| n_real_points | 52 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.848; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.704; Smooth: 0.622 |
