1drk
PROBING PROTEIN-PROTEIN INTERACTIONS: THE RIBOSE-BINDING PROTEIN IN BACTERIAL TRANSPORT AND CHEMOTAXIS
SAXS Profile

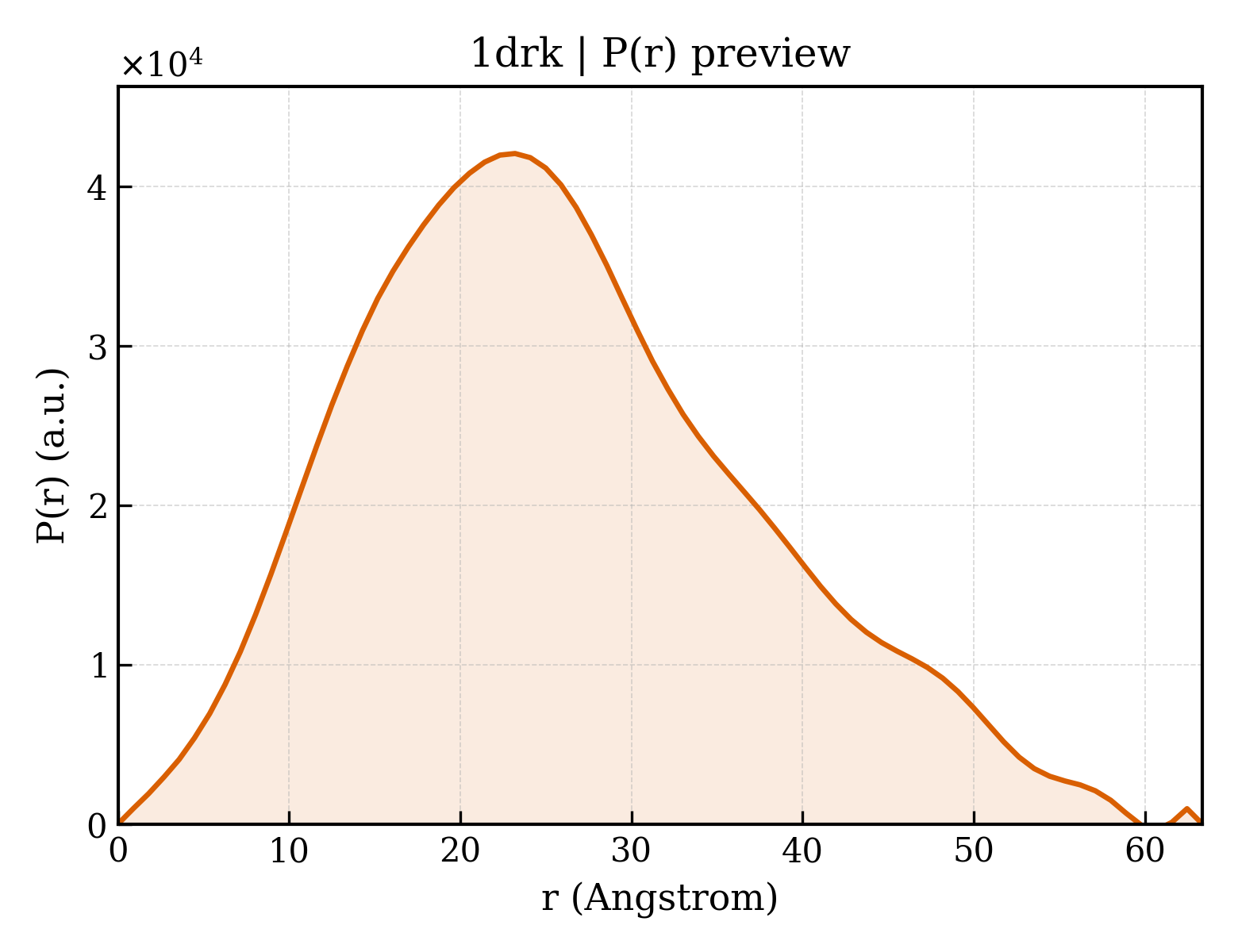

P(r) Distribution
1. Structure Basics
| entry_id | 1drk |
| deposition_date | 1994-09-23 |
| title | PROBING PROTEIN-PROTEIN INTERACTIONS: THE RIBOSE-BINDING PROTEIN IN BACTERIAL TRANSPORT AND CHEMOTAXIS |
| keywords | BINDING PROTEIN; BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.91 Å |
| rg_electron | 19.20 Å |
| i0 | 14585400.00 |
| molecular_weight | 28625.0 kDa |
| excluded_volume | 35917 ų |
| envelope_volume | 40703 ų |
| shell_volume | 18195 ų |
| envelope_diameter | 64.4 Å |
| shell_rg | 24.96 Å |
| envelope_rg | 19.49 Å |
| shape_rg | 19.17 Å |
| total_rg | 20.13 Å |
| total_atoms | 2486 |
| n_residues | 271 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 63.4 Å |
| rg_real | 19.94 Å |
| rg_real_error | 0.45 Å |
| i0_real | 1.4590e+07 |
| i0_real_error | 1.8830e+05 |
| rg_reciprocal | 19.94 Å |
| i0_reciprocal | 14590000.0000 |
| total_estimate | 0.6524 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 23.2 Å |
| skewness | 0.437 |
| kurtosis | -0.271 |
| angular_range | — – 0.4000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4787000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.828; Stabil: 0.999; Sysdev: 0.338; Positv: 1.000; Valcen: 0.981; Smooth: 0.000 |
