1ba7
SOYBEAN TRYPSIN INHIBITOR
SAXS Profile

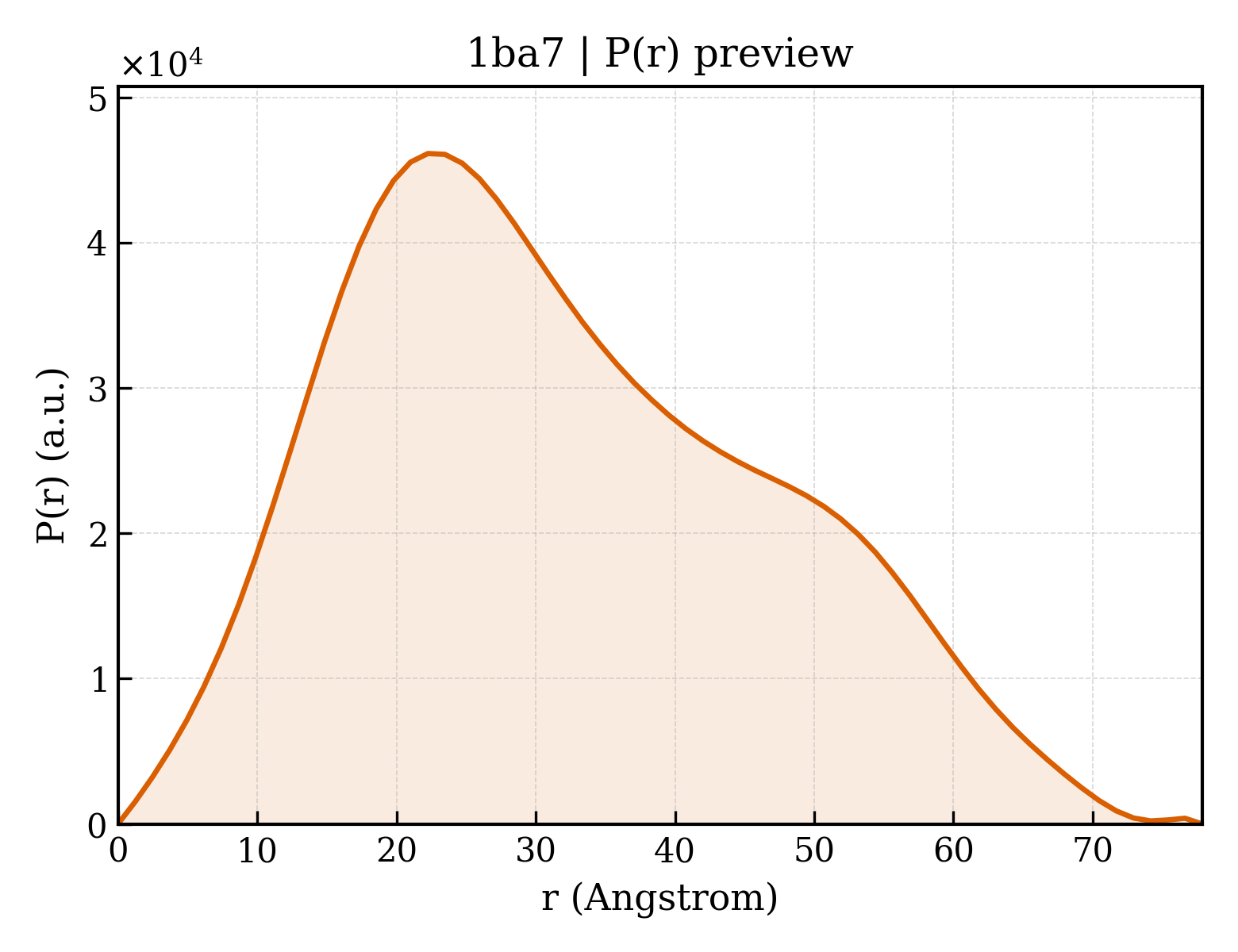

P(r) Distribution
1. Structure Basics
| entry_id | 1ba7 |
| deposition_date | 1998-04-22 |
| title | SOYBEAN TRYPSIN INHIBITOR |
| keywords | SERINE PROTEASE INHIBITOR, TRYPSIN INHIBITOR (KUNITZ); SERINE PROTEASE INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.73 Å |
| rg_electron | 24.07 Å |
| i0 | 20984000.00 |
| molecular_weight | 35395.0 kDa |
| excluded_volume | 44572 ų |
| envelope_volume | 55601 ų |
| shell_volume | 20230 ų |
| envelope_diameter | 78.9 Å |
| shell_rg | 29.77 Å |
| envelope_rg | 24.01 Å |
| shape_rg | 24.05 Å |
| total_rg | 24.89 Å |
| total_atoms | 2496 |
| n_residues | 334 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 77.9 Å |
| rg_real | 24.86 Å |
| rg_real_error | 0.50 Å |
| i0_real | 2.0980e+07 |
| i0_real_error | 2.4320e+05 |
| rg_reciprocal | 24.83 Å |
| i0_reciprocal | 20980000.0000 |
| total_estimate | 0.8736 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.2 Å |
| skewness | 0.390 |
| kurtosis | -0.624 |
| angular_range | — – 0.3200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 6381000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.844; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.886; Smooth: 0.934 |
