SAXSdb — 6o1f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tryptase alpha/beta-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Heavy Chain hu31A.v11 × 1 Trypsin inhibitor A × 1 （P01070） Light Chain hu31A.v11 × 1 1,2-ETHANEDIOL × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRYB1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 16–260； UniProt 31–275

Trypsin inhibitor A

Glycine max

UniProt P01070

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Tryptase alpha/beta-1 × 1 （Q15661） Heavy Chain hu31A.v11 × 1 Light Chain hu31A.v11 × 1 1,2-ETHANEDIOL × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ITRA_SOYBN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain I； PDBConstruct 1–192； UniProt 25–216

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6o1f
Deposition date deposition_date	2019-02-19
Structure title title	Complex between soybean trypsin inhibitor beta1-tryptase and a humanized fab
Keywords keywords	Antibody, fab, tryptase, inhibitor, IMMUNE SYSTEM, IMMUNE SYSTEM-HYDROLASE complex; IMMUNE SYSTEM/HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6o1f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6o1f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

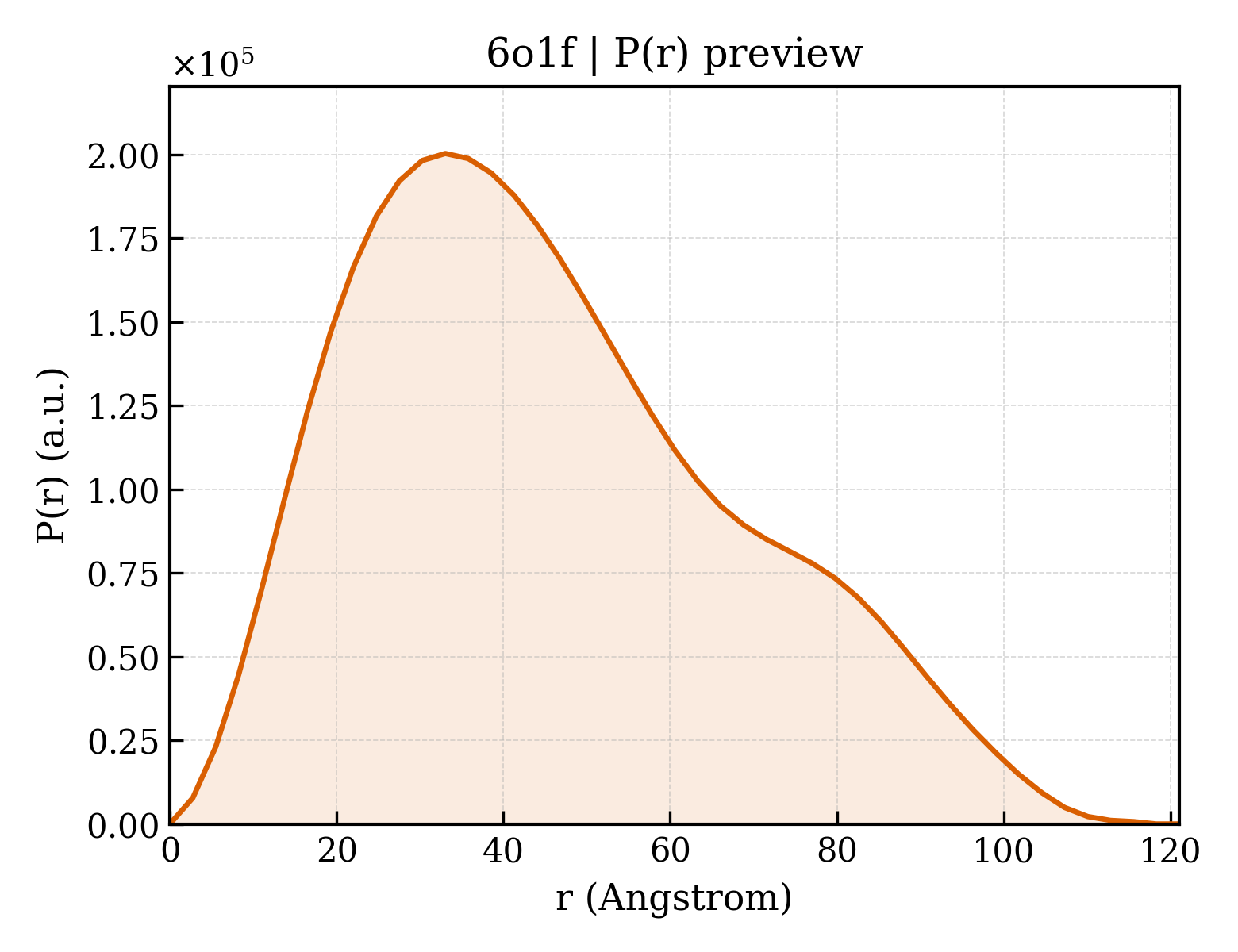

6o1f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.63 Å
Rg (electron density)	35.55 Å
Total Rg	36.10 Å
Atom count	6606
Residues	850
Excluded volume	116680 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6o1f__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Tryptase alpha/beta-1
Molecular weight formula_weight	29211.1 kDa
EC 编号 ec_number	3.4.21.59
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7068

AGSTHHHHHHDDDDKIVGGQEAPRSKWPWQVSLRVHGPYWMHFCGGSLIHPQWVLTAAHCVGPDVKDLAALRVQLREQHLYYQDQLLPVSRIIVHPQFYTAQIGADIALLELEEPVNVSSHVHTVTLPPASETFPPGMPCWVTGWGDVDNDERLPPPFPLKQVKVPIMENHICDAKYHLGAYTGDDVRIVRDDMLCAGNTRRDSCQGDSGGPLVCKVNGTWLQAGVVSWGEGCAQPNRPGIYTRVTYYLDWIHHYVPKKP

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Baculovirus expression vector pFastBac1-HM

Entity 2 Entity 2 polymer

Description description	Heavy Chain hu31A.v11
Molecular weight formula_weight	24361.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVQLVESGGGLVQPGGSLRLSCAASGFTFSDYGMVWVRQAPGKGLEWVAFISSGSSTVYYADTMKGRFTISRDNSKNTLYLQMNSLRAEDTAVYYCTRRNYDDWYFDVWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHT

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Trypsin inhibitor A
Molecular weight formula_weight	21328.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

DFVLDNEGNPLENGGTYYILSDITAFGGIRAAPTGNERCPLTVVQSRNELDKGIGTIISSPYRIRFIAEGHPLSLKFDSFAVIMLCVGIPTEWSVVEDLPEGPAVKIGENKDAMDGWFRLERVSDDEFNNYKLVFCPQQAEDDKCGDIGISIDHDDGTRRLVVSKNKPLVVQFQKLDKESLAKKNHGLSRSE

Source Source

Source organism organism	Glycine max
Common name common_name	Soybean
NCBI taxonomy ID ncbi_taxonomy_id	3847
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Light Chain hu31A.v11
Molecular weight formula_weight	23451.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIQMTQSPSSLSASVGDRVTITCSASSSVTYMYWYQQKPGKSPKPWIYRTSDLASGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQHYHSYPLTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	441

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d6o1fa_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d6o1fh_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d6o1fi_
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.4 — STI-like
Family Family family	b.42.4.1 — Kunitz (STI) inhibitors

Domain ID domain_id	d6o1fl1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6o1fl2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

Domain ID domain_id	6o1fA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	6o1fH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6o1fI00
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	6o1fL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	128.520 Å
Unit-cell length b length_b	128.520 Å
Unit-cell length c length_c	245.880 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 62 2 2
Space-group number int_tables_number	180
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	31.480 Å
R factor r_factor	0.1911
R_work r_work	0.1898
R_free r_free	0.2330
