1bb3
HUMAN LYSOZYME MUTANT A96L

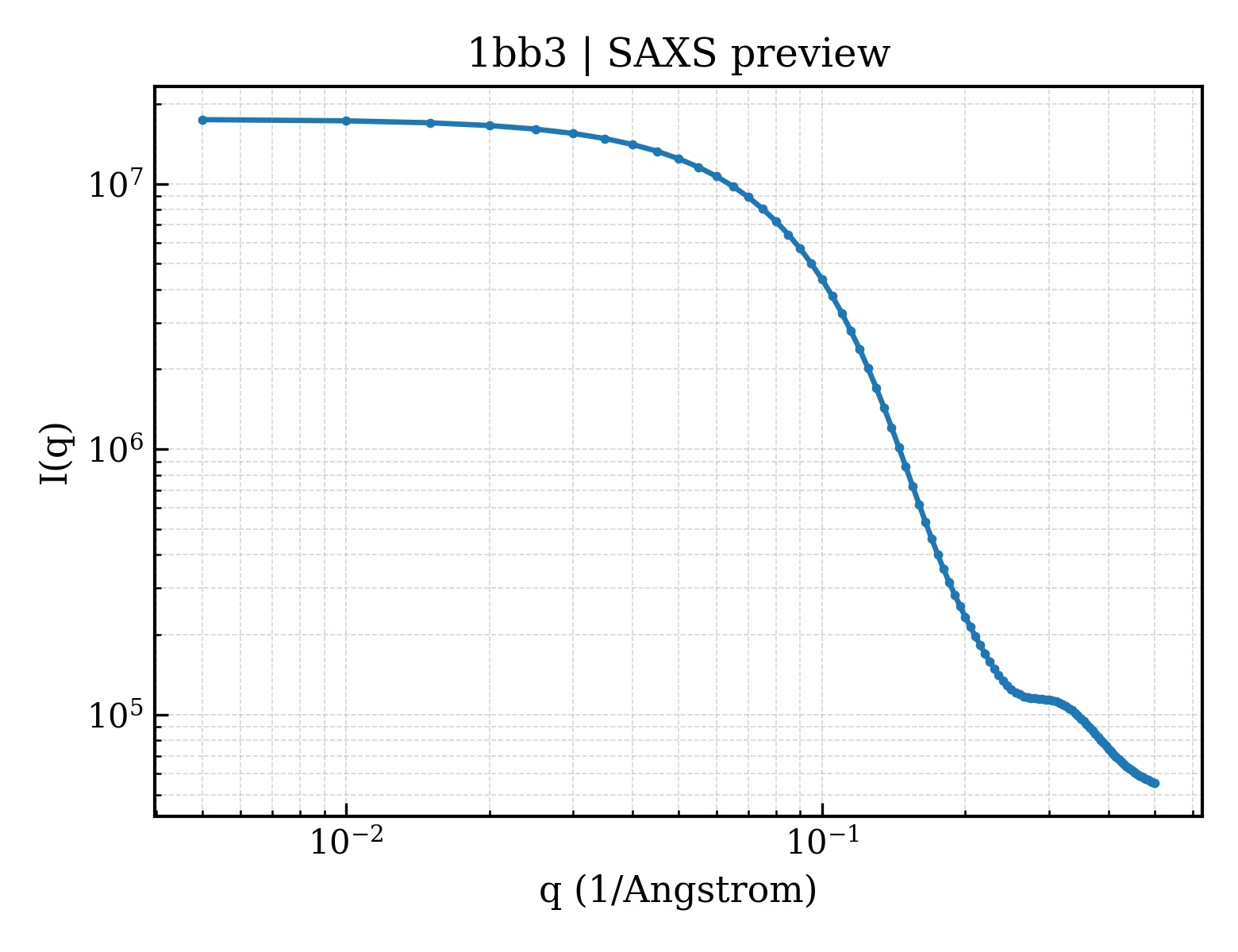

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bb3 |
| deposition_date | 1998-04-28 |
| title | HUMAN LYSOZYME MUTANT A96L |
| keywords | HYDROLASE, LYSOZYME, GLYCOSIDASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.27 Å |
| rg_electron | 19.20 Å |
| i0 | 17496700.00 |
| molecular_weight | 29502.0 kDa |
| excluded_volume | 36088 ų |
| envelope_volume | 42360 ų |
| shell_volume | 18760 ų |
| envelope_diameter | 65.5 Å |
| shell_rg | 25.04 Å |
| envelope_rg | 19.31 Å |
| shape_rg | 19.19 Å |
| total_rg | 20.02 Å |
| total_atoms | 2064 |
| n_residues | 260 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 65.3 Å |
| rg_real | 20.21 Å |
| rg_real_error | 0.41 Å |
| i0_real | 1.7500e+07 |
| i0_real_error | 2.3640e+05 |
| rg_reciprocal | 20.22 Å |
| i0_reciprocal | 17500000.0000 |
| total_estimate | 0.8990 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.3 Å |
| skewness | 0.262 |
| kurtosis | -0.381 |
| angular_range | — – 0.3900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2173000.0000 |
| n_real_points | 71 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.895; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.998 |
