1bc4
THE SOLUTION STRUCTURE OF A CYTOTOXIC RIBONUCLEASE FROM THE OOCYTES OF RANA CATESBEIANA (BULLFROG), NMR, 15 STRUCTURES

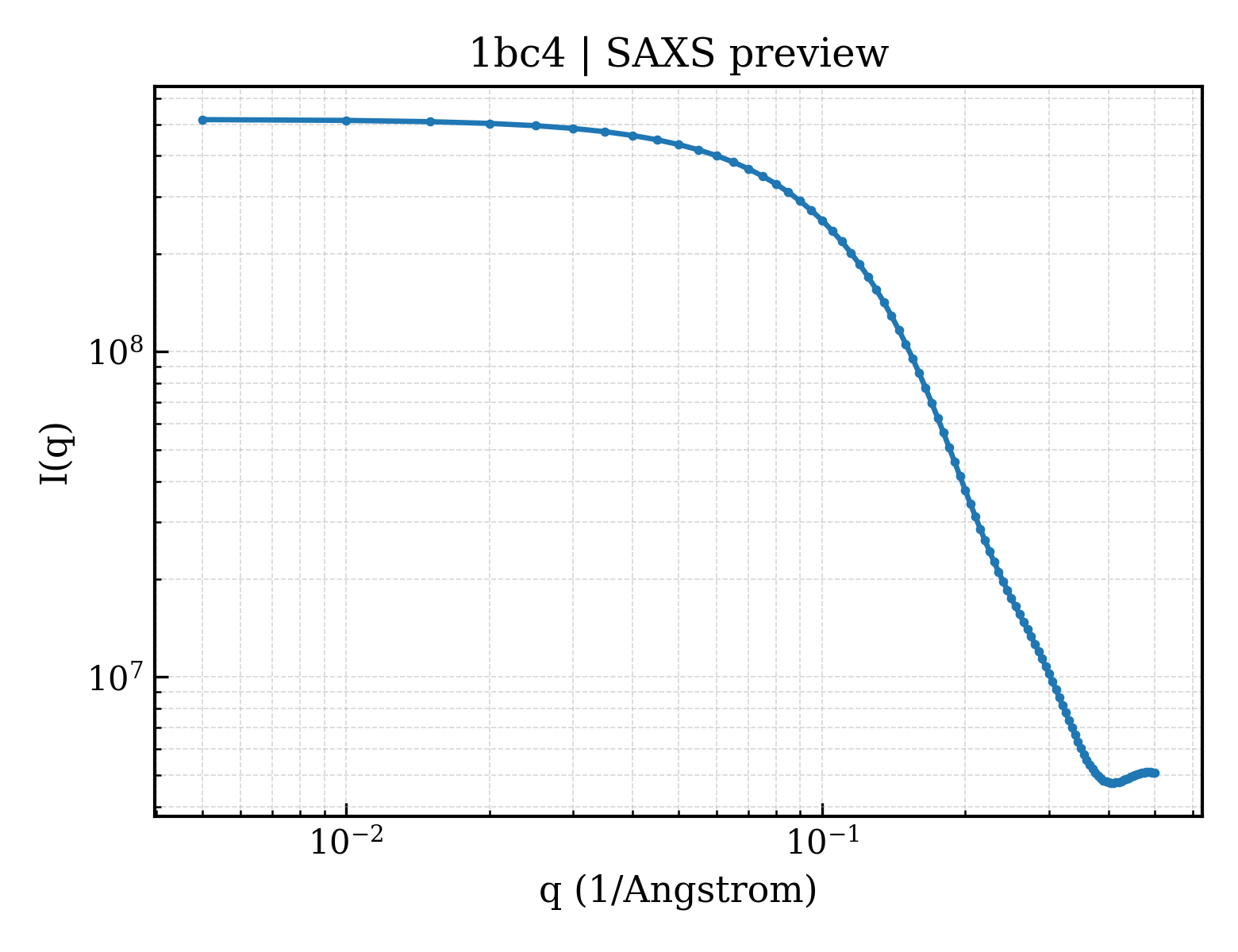

SAXS Profile

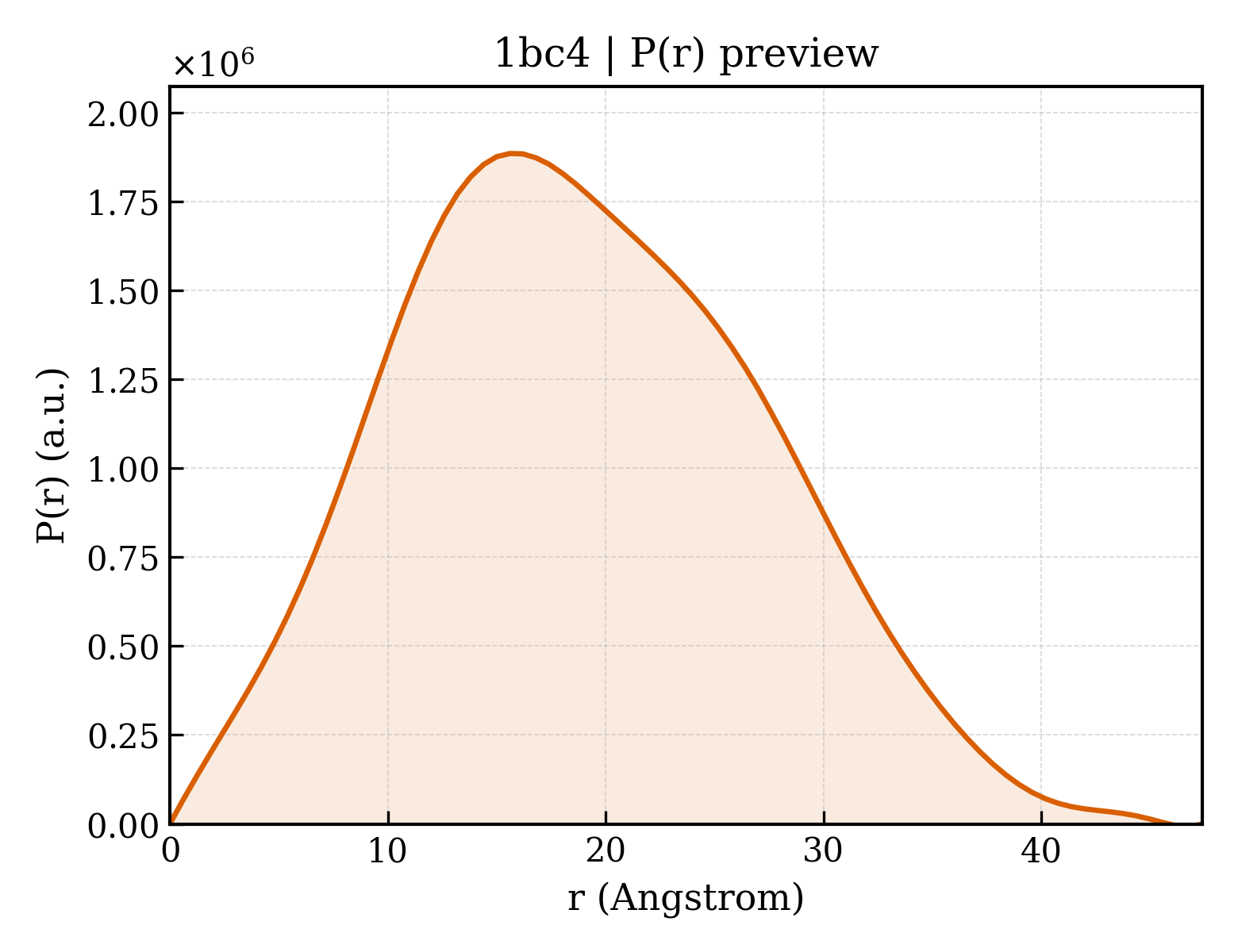

P(r) Distribution
1. Structure Basics
| entry_id | 1bc4 |
| deposition_date | 1998-05-05 |
| title | THE SOLUTION STRUCTURE OF A CYTOTOXIC RIBONUCLEASE FROM THE OOCYTES OF RANA CATESBEIANA (BULLFROG), NMR, 15 STRUCTURES |
| keywords | HYDROLASE, PHOSPHORIC DIESTER, RC-RNASE, CYTOTOXIC PROTEIN, SIALIC ACID BINDING LECTIN; HYDROLASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.62 Å |
| rg_electron | 14.50 Å |
| i0 | 517917000.00 |
| molecular_weight | 186820.0 kDa |
| excluded_volume | 231850 ų |
| envelope_volume | 27399 ų |
| shell_volume | 14634 ų |
| envelope_diameter | 54.8 Å |
| shell_rg | 21.71 Å |
| envelope_rg | 16.24 Å |
| shape_rg | 14.46 Å |
| total_rg | 14.82 Å |
| total_atoms | 25935 |
| n_residues | 1650 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.4 Å |
| rg_real | 14.60 Å |
| rg_real_error | 0.28 Å |
| i0_real | 5.1790e+08 |
| i0_real_error | 5.3650e+06 |
| rg_reciprocal | 14.60 Å |
| i0_reciprocal | 517900000.0000 |
| total_estimate | 0.8250 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 15.6 Å |
| skewness | 0.235 |
| kurtosis | -0.458 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 304300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.912; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.000 |
