SAXSdb — 1bcg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TOXIN BJXTR-IT

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 19–94	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.5	Resolution 2.10 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BCG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4KYP Beta-Scorpion Toxin folded in the periplasm of E.coli Deposited 2013-05-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–94（76 aa）	Not recorded	PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.2M NaCl, Bis-Tris, 29% PEG 3350 , pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.229
4KYP Beta-Scorpion Toxin folded in the periplasm of E.coli Deposited 2013-05-29	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 19–94（76 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.2M NaCl, Bis-Tris, 29% PEG 3350 , pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.229
4KYP Beta-Scorpion Toxin folded in the periplasm of E.coli Deposited 2013-05-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 19–94（76 aa）	Not recorded	PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.2M NaCl, Bis-Tris, 29% PEG 3350 , pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.229
4KYP Beta-Scorpion Toxin folded in the periplasm of E.coli Deposited 2013-05-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 19–94（76 aa）	Not recorded	PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.2M NaCl, Bis-Tris, 29% PEG 3350 , pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.70 Å R-free 0.229

1 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SIXE_BUTJU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–77； UniProt 19–94

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bcg
Deposition date deposition_date	1998-04-29
Structure title title	SCORPION TOXIN BJXTR-IT
Keywords keywords	EXCITATORY NEUROTOXIN; EXCITATORY NEUROTOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.37 Å
Radius of gyration Rg (electron density) rg_electron	11.35 Å
Forward intensity I(0) i0	1552270.00
Molecular weight molecular_weight	8014.0 kDa
Excluded volume excluded_volume	9873 Å³
Envelope volume envelope_volume	11128 Å³
Hydration-shell volume shell_volume	8537 Å³
Envelope diameter envelope_diameter	38.1 Å
Shell Rg shell_rg	16.80 Å
Envelope Rg envelope_rg	11.81 Å
Shape Rg shape_rg	11.36 Å
Total Rg total_rg	12.74 Å
Total atoms total_atoms	557
Residues n_residues	72
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	39.5 Å
Rg (real space) rg_real	12.30 Å
Rg uncertainty (real space) rg_real_error	0.25 Å
I(0) (real space) i0_real	1.5520e+06
I(0) uncertainty (real space) i0_real_error	1.5540e+04
Rg (reciprocal space) rg_reciprocal	12.30 Å
I(0) (reciprocal space) i0_reciprocal	1552000.0000
Solution quality estimate total_estimate	0.8945
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.0 Å
Skewness Skewness skewness	0.175
Kurtosis Kurtosis kurtosis	-0.314
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	229400.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.879; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.989

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1bcga_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.7 — Scorpion toxin-like
Family Family family	g.3.7.1 — Long-chain scorpion toxins

CATH v4.4 (1 domains)

Domain ID domain_id	1bcgA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	30 — Defensin A-like
Homologous superfamily homologous superfamily	10 — Knottin, scorpion toxin-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	40.828 Å
Unit-cell length b length_b	40.828 Å
Unit-cell length c length_c	191.360 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 41 2 2
Space-group number int_tables_number	98
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2090
R_work r_work	0.2090
R_free r_free	0.2560

Description description	TOXIN BJXTR-IT
Molecular weight formula_weight	8597.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	663

SCORPION TOXIN BJXTR-IT

1. Protein Identity and Related Structures Protein Identity & Related Structures

TOXIN BJXTR-IT

State in the Current Structure

Other States of the Same Protein in the Database

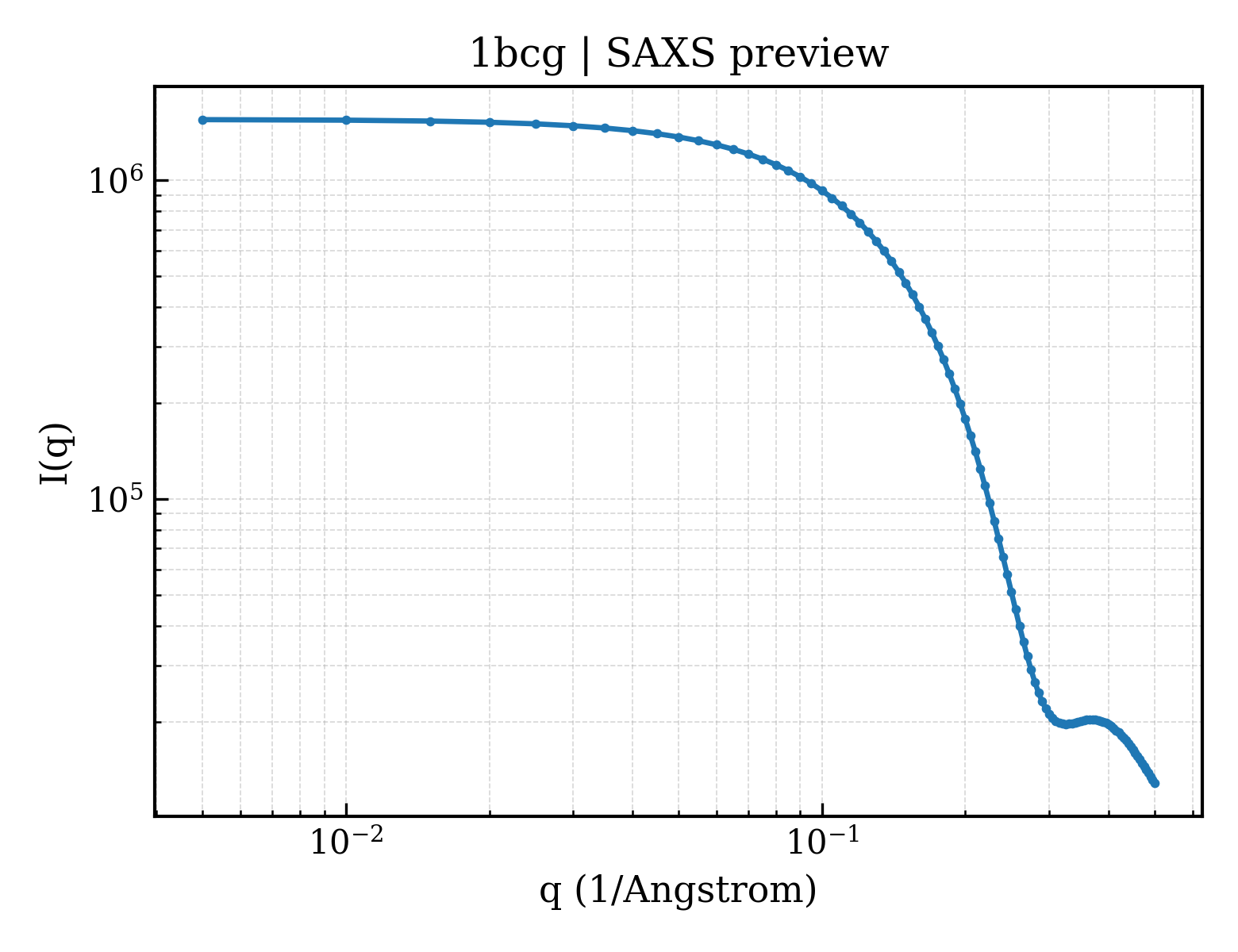

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	72

fit	/app/data/saxs_computation/bc/1bcg/1bcg.fit
pddf	/app/data/pr_computation/bc/1bcg/1bcg.pr.out
profile	/app/data/saxs_computation/bc/1bcg/1bcg.dat
