1bd3

STRUCTURE OF THE APO URACIL PHOSPHORIBOSYLTRANSFERASE, 2 MUTANT C128V

Method: X-RAY DIFFRACTION D_max: 106.6 Å Quality: GOOD

SAXS Profile

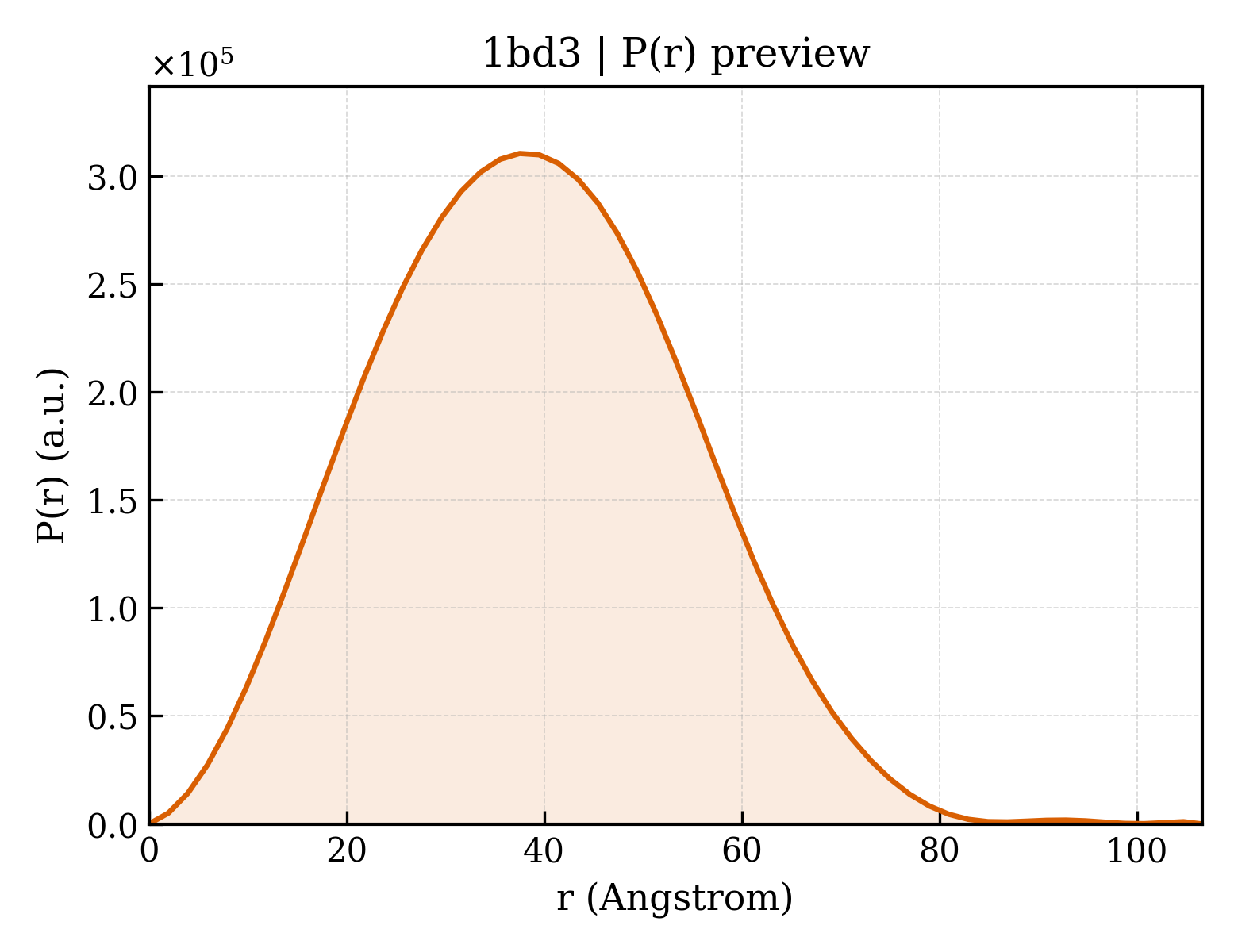

P(r) Distribution

▼

1. Structure Basics

entry_id	1bd3
deposition_date	1998-05-12
title	STRUCTURE OF THE APO URACIL PHOSPHORIBOSYLTRANSFERASE, 2 MUTANT C128V
keywords	TRANSFERASE, GLYCOSYLTRANSFERASE, UPRTASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.61 Å
rg_electron	28.35 Å
i0	161397000.00
molecular_weight	102810.0 kDa
excluded_volume	130010 Å³
envelope_volume	157720 Å³
shell_volume	44201 Å³
envelope_diameter	111.1 Å
shell_rg	37.43 Å
envelope_rg	28.55 Å
shape_rg	28.35 Å
total_rg	29.22 Å
total_atoms	7192
n_residues	896
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	106.6 Å
rg_real	29.45 Å
rg_real_error	0.67 Å
i0_real	1.6140e+08
i0_real_error	2.3710e+06
rg_reciprocal	29.52 Å
i0_reciprocal	161400000.0000
total_estimate	0.8406
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	37.5 Å
skewness	0.175
kurtosis	-0.311
angular_range	— – 0.2700 Å⁻¹
current_alpha	0.0000
highest_alpha	58290000.0000
n_real_points	55
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.647; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.982

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	URACIL PHOSPHORIBOSYLTRANSFERASE
formula_weight	27558.2 kDa
ec_number	2.4.2.9
mutation	C128V
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	D,C,B,A
atom_count	7604

AQVPASGKLLVDPRYSTNDQEESILQDIITRFPNVVLMKQTAQLRAMMTIIRDKETPKEEFVFYADRLIRLLIEEALNELPFQKKEVTTPLDVSYHGVSFYSKICGVSIVRAGESMESGLRAVCRGVRIGKILIQRDETTAEPKLIYEKLPADIRERWVMLLDPMCATAGSVCKAIEVLLRLGVKEERIIFVNILAAPQGIERVFKEYPKVRMVTAAVDICLNSRYYIVPGIGDFGDRYFGTM

Source

organism	Toxoplasma gondii
ncbi_taxonomy_id	5811
host_organism	Escherichia coli

Entity 2 non-polymer

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	syn
entity_count	8

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	412

▶

6. Citations (1)

▶

length_a	60.600 Å
length_b	141.690 Å
length_c	71.370 Å
angle_alpha	90.00 °
angle_beta	115.13 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.930 Å
resolution_low	10.000 Å
r_factor	—
r_work	0.1860
r_free	—

fit	/app/data/saxs_computation/bd/1bd3/1bd3.fit
pddf	/app/data/pr_computation/bd/1bd3/1bd3.pr.out
profile	/app/data/saxs_computation/bd/1bd3/1bd3.dat
