1bei
Shk-dnp22: A Potent Kv1.3-specific immunosuppressive polypeptide, NMR, 20 structures

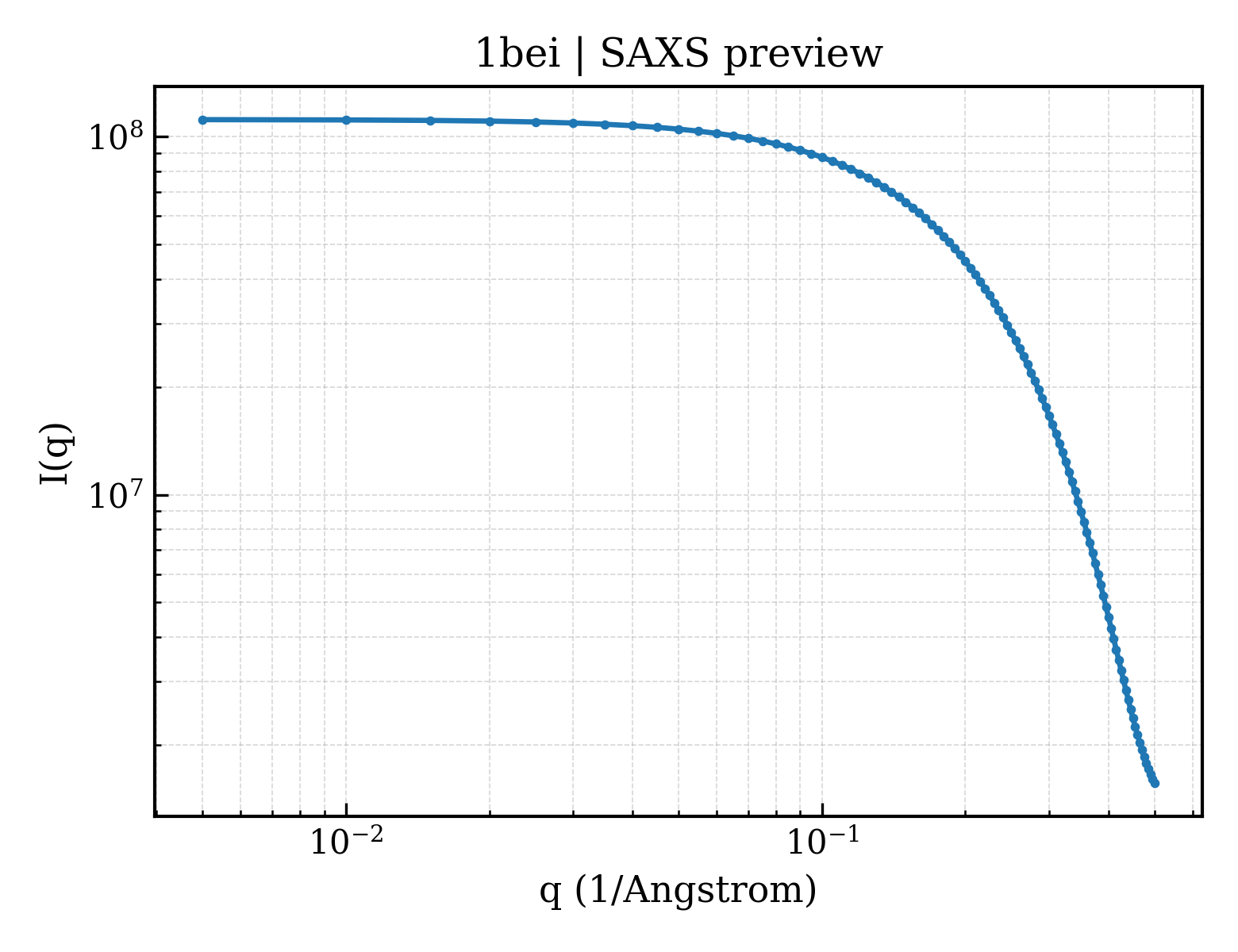

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bei |
| deposition_date | 1998-05-14 |
| title | Shk-dnp22: A Potent Kv1.3-specific immunosuppressive polypeptide, NMR, 20 structures |
| keywords | POTASSIUM CHANNEL INHIBITOR, SEA ANEMONE, IMMUNOSUPPRESSANT NEUROTOXIN; POTASSIUM CHANNEL INHIBITOR |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.50 Å |
| rg_electron | 9.00 Å |
| i0 | 111613000.00 |
| molecular_weight | 80537.0 kDa |
| excluded_volume | 97825 ų |
| envelope_volume | 8000 ų |
| shell_volume | 6773 ų |
| envelope_diameter | 39.7 Å |
| shell_rg | 15.87 Å |
| envelope_rg | 12.08 Å |
| shape_rg | 9.01 Å |
| total_rg | 9.18 Å |
| total_atoms | 11000 |
| n_residues | 680 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 33.8 Å |
| rg_real | 8.63 Å |
| rg_real_error | 0.41 Å |
| i0_real | 1.1160e+08 |
| i0_real_error | 1.0520e+06 |
| rg_reciprocal | 8.62 Å |
| i0_reciprocal | 111600000.0000 |
| total_estimate | 0.7260 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 9.8 Å |
| skewness | 0.839 |
| kurtosis | 0.968 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 26420.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.352; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.518; Smooth: 0.863 |
