OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | CHLORIDE ION × 4 GLYCEROL × 1 water × 1 | Consistent with protein count |
| UniProt name | TXSHK_STOHE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–35； UniProt 1–35 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 4lfs |
| Deposition date deposition_date | 2013-06-27 |
| Structure title title | High resolution x-ray structure of racemic ShK toxin |
| Keywords keywords | ShK toxin, chemical protein synthesis, racemic protein crystallography, TOXIN; TOXIN |
| Experimental Method method | X-RAY DIFFRACTION |

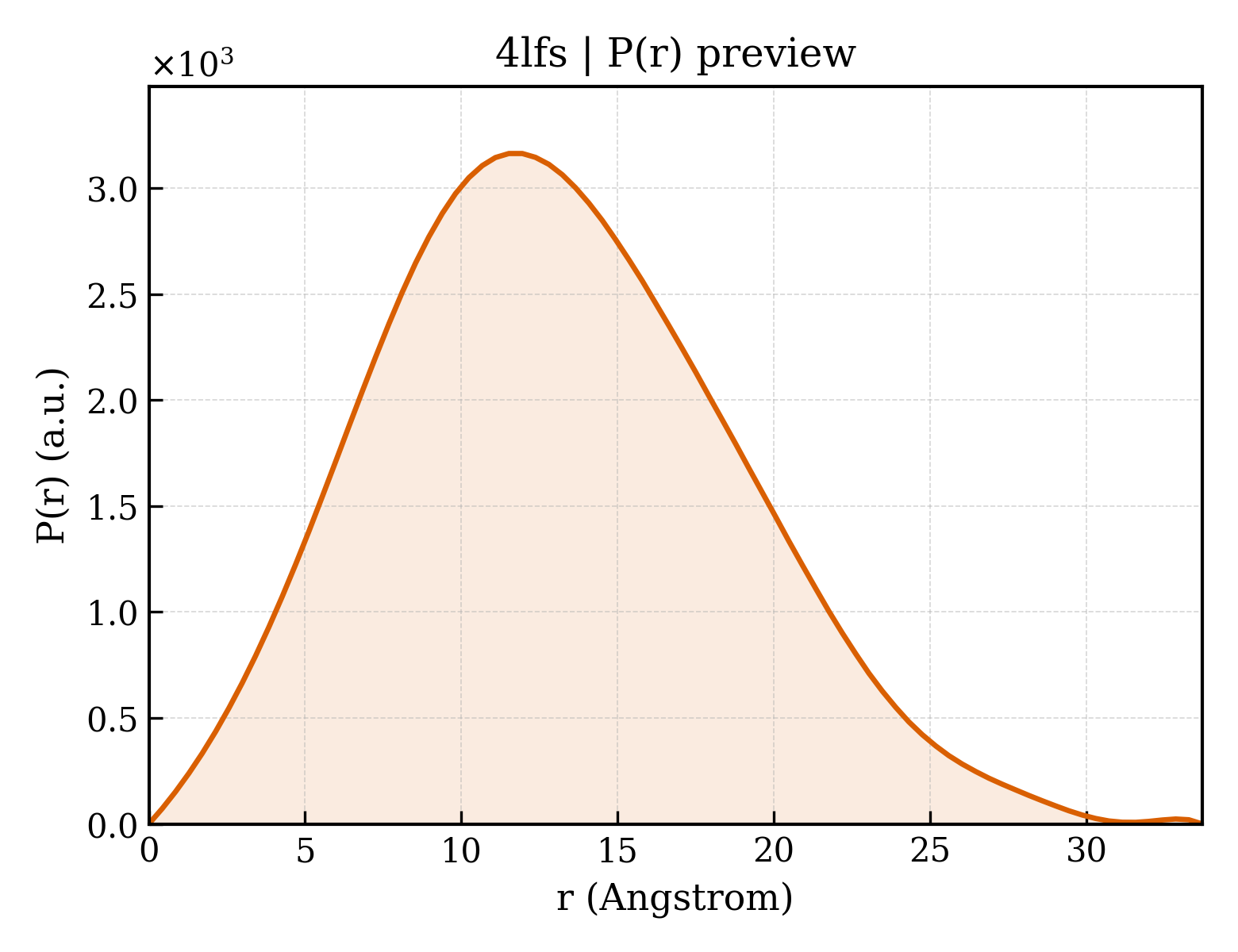

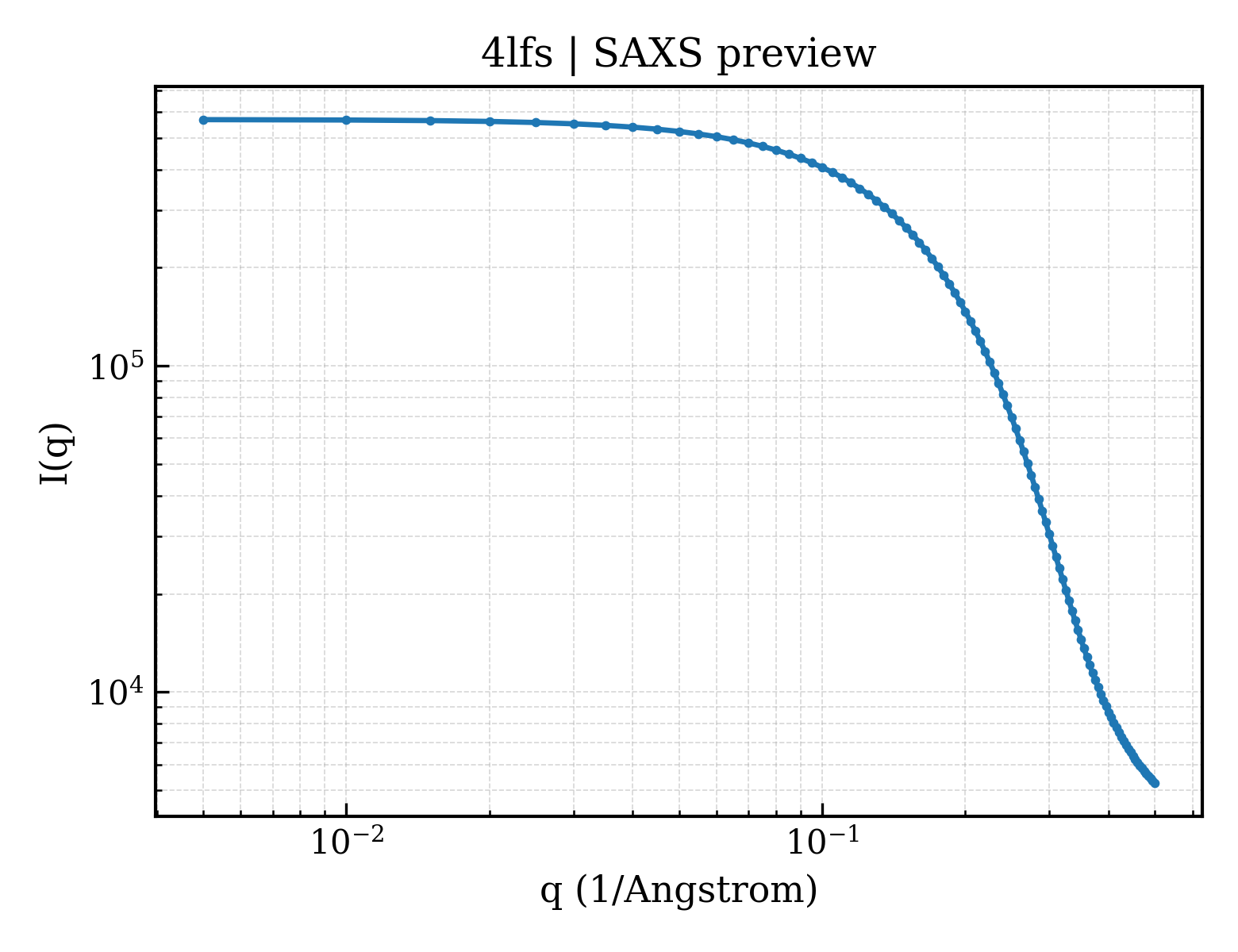

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 10.06 Å |
| Rg (electron density) | 8.97 Å |
| Total Rg | 10.59 Å |
| Atom count | 578 |
| Residues | 35 |
| Excluded volume | 5173 ų |
| Maximum q | 0.500 Å⁻¹ |
