1bet
NEW PROTEIN FOLD REVEALED BY A 2.3 ANGSTROM RESOLUTION CRYSTAL STRUCTURE OF NERVE GROWTH FACTOR
SAXS Profile

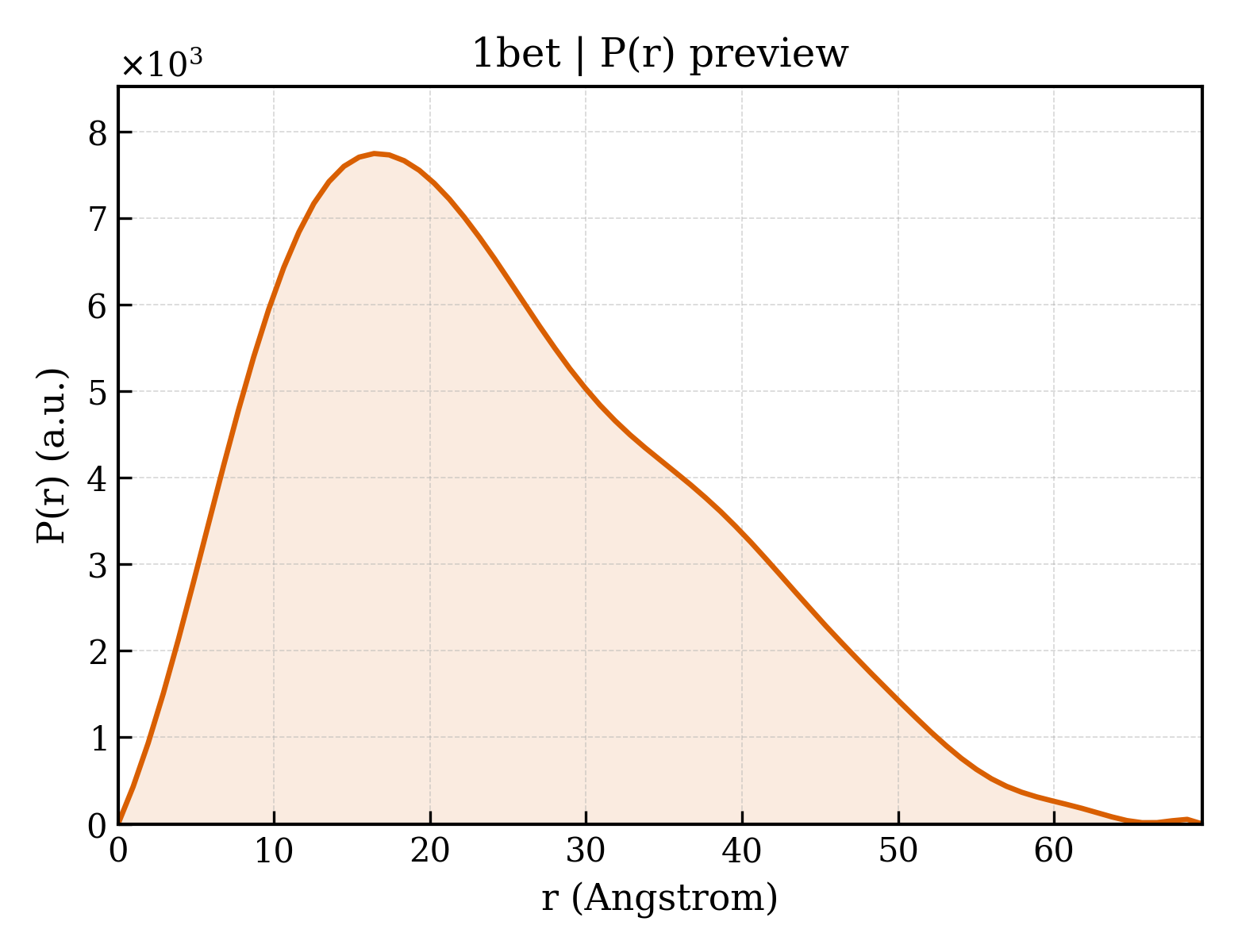

P(r) Distribution
1. Structure Basics
| entry_id | 1bet |
| deposition_date | 1993-04-08 |
| title | NEW PROTEIN FOLD REVEALED BY A 2.3 ANGSTROM RESOLUTION CRYSTAL STRUCTURE OF NERVE GROWTH FACTOR |
| keywords | GROWTH FACTOR; GROWTH FACTOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.05 Å |
| rg_electron | 18.51 Å |
| i0 | 3009090.00 |
| molecular_weight | 11979.0 kDa |
| excluded_volume | 14847 ų |
| envelope_volume | 18740 ų |
| shell_volume | 9749 ų |
| envelope_diameter | 69.1 Å |
| shell_rg | 22.35 Å |
| envelope_rg | 19.04 Å |
| shape_rg | 18.52 Å |
| total_rg | 19.21 Å |
| total_atoms | 840 |
| n_residues | 107 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 69.5 Å |
| rg_real | 19.33 Å |
| rg_real_error | 0.63 Å |
| i0_real | 3.0090e+06 |
| i0_real_error | 4.4700e+04 |
| rg_reciprocal | 19.29 Å |
| i0_reciprocal | 3009000.0000 |
| total_estimate | 0.7888 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.4 Å |
| skewness | 0.538 |
| kurtosis | -0.351 |
| angular_range | — – 0.4150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 248000.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.677; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.301; Smooth: 0.918 |
