1sgf

CRYSTAL STRUCTURE OF 7S NGF: A COMPLEX OF NERVE GROWTH FACTOR WITH FOUR BINDING PROTEINS (SERINE PROTEINASES)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NERVE GROWTH FACTOR

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 其他Polymer 2	NERVE GROWTH FACTOR × 2 （P01139） NERVE GROWTH FACTOR × 2 （P00756） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KLK4_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–240； UniProt 17–256 Author chain X； PDBConstruct 1–240； UniProt 17–256

NERVE GROWTH FACTOR

OrganismNot specified

UniProt P01139

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 其他Polymer 2	NERVE GROWTH FACTOR × 2 （P00757） NERVE GROWTH FACTOR × 2 （P00756） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NGF_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–118； UniProt 122–239 Author chain Y； PDBConstruct 1–118； UniProt 122–239

NERVE GROWTH FACTOR

OrganismNot specified

UniProt P00756

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 6 其他Polymer 2	NERVE GROWTH FACTOR × 2 （P00757） NERVE GROWTH FACTOR × 2 （P01139） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KLK3_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–237； UniProt 25–261 Author chain Z； PDBConstruct 1–237； UniProt 25–261

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sgf
Deposition date deposition_date	1997-08-08
Structure title title	CRYSTAL STRUCTURE OF 7S NGF: A COMPLEX OF NERVE GROWTH FACTOR WITH FOUR BINDING PROTEINS (SERINE PROTEINASES)
Keywords keywords	GROWTH FACTOR (BETA-NGF), HYDROLASE - SERINE PROTEINASE (GAMMA-NGF), INACTIVE SERINE PROTEINASE (ALPHA-NGF), GROWTH FACTOR; GROWTH FACTOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1sgf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1sgf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

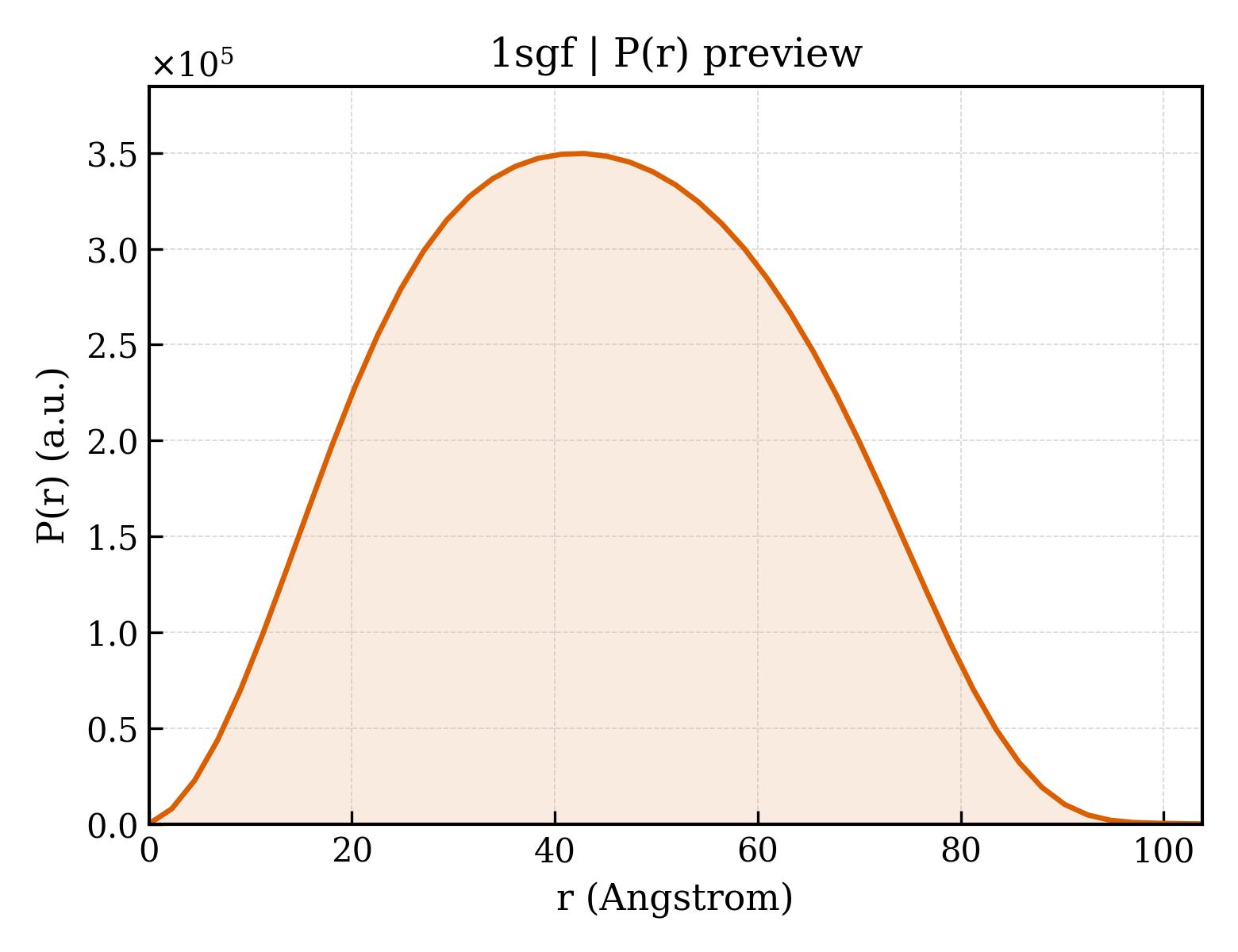

1sgf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.33 Å
Rg (electron density)	33.84 Å
Total Rg	34.43 Å
Atom count	8549
Residues	1089
Excluded volume	151860 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1sgf__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	NERVE GROWTH FACTOR
Molecular weight formula_weight	26783.1 kDa
EC 编号 ec_number	3.4.21.35
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,X
Atom count atom_count	8549

AAPPVQSQVDCENSQPWHVAVYRFNKYQCGGVLLDRNWVLTAAHCYNDKYQVWLGKNNFLEDEPSDQHRLVSKAIPHPDFNMSLLNEHTPQPEDDYSNDLMLLRLSKPADITDVVKPITLPTEEPKLGSTCLASGWGSTTPIKFKYPDDLQCVNLKLLPNEDCDKAHEMKVTDAMLCAGEMDGGSYTCEHDSGGPLICDGILQGITSWGPEPCGEPTEPSVYTKLIKFSSWIRETMANNP

Entity 2 Entity 2 polymer

Description description	NERVE GROWTH FACTOR
Molecular weight formula_weight	13277.0 kDa
EC 编号 ec_number	3.4.21.35
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,Y

SSTHPVFHMGEFSVCDSVSVWVGDKTTATDIKGKEVTVLAEVNINNSVFRQYFFETKCRASNPVESGCRGIDSKHWNSYCTTTHTFVKALTTDEKQAAWRFIRIDTACVCVLSRKATR

Entity 3 Entity 3 polymer

Description description	NERVE GROWTH FACTOR
Molecular weight formula_weight	26432.3 kDa
EC 编号 ec_number	3.4.21.35
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,Z

IVGGFKCEKNSQPWHVAVYRYTQYLCGGVLLDPNWVLTAAHCYDDNYKVWLGKNNLFKDEPSAQHRFVSKAIPHPGFNMSLMRKHIRFLEYDYSNDLMLLRLSKPADITDTVKPITLPTEEPKLGSTCLASGWGSITPTKFQFTDDLYCVNLKLLPNEDCAKAHIEKVTDAMLCAGEMDGGKDTCKGDSGGPLICDGVLQGITSWGHTPCGEPDMPGVYTKLNKFTSWIKDTMAKNP

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1sgfa_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1sgfb_
Class class	g — Small proteins
Fold Fold fold	g.17 — Cystine-knot cytokines
Superfamily Superfamily superfamily	g.17.1 — Cystine-knot cytokines
Family Family family	g.17.1.3 — Neurotrophin

Domain ID domain_id	d1sgfg_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1sgfx_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1sgfy_
Class class	g — Small proteins
Fold Fold fold	g.17 — Cystine-knot cytokines
Superfamily Superfamily superfamily	g.17.1 — Cystine-knot cytokines
Family Family family	g.17.1.3 — Neurotrophin

Domain ID domain_id	d1sgfz_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

CATH v4.4 (10 domains)

Domain ID domain_id	1sgfA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1sgfA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1sgfB00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

Domain ID domain_id	1sgfG01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1sgfG02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1sgfX01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1sgfX02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1sgfY00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

Domain ID domain_id	1sgfZ01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1sgfZ02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

Unit-cell length a length_a	95.680 Å
Unit-cell length b length_b	96.590 Å
Unit-cell length c length_c	147.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.150 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2460
R_work r_work	0.2460
R_free r_free	0.2820
