1bhc

BOVINE PANCREATIC TRYPSIN INHIBITOR CRYSTALLIZED FROM THIOCYANATE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BOVINE PANCREATIC TRYPSIN INHIBITOR

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 10	THIOCYANATE ION × 10 water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BPT1_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–58； UniProt 36–93 Author chain B； PDBConstruct 1–58； UniProt 36–93 Author chain C； PDBConstruct 1–58； UniProt 36–93 Author chain D； PDBConstruct 1–58； UniProt 36–93 Author chain E； PDBConstruct 1–58； UniProt 36–93 Author chain F； PDBConstruct 1–58； UniProt 36–93 Author chain G； PDBConstruct 1–58； UniProt 36–93 Author chain H； PDBConstruct 1–58； UniProt 36–93 Author chain I； PDBConstruct 1–58； UniProt 36–93 Author chain J； PDBConstruct 1–58； UniProt 36–93

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bhc
Deposition date deposition_date	1998-06-05
Structure title title	BOVINE PANCREATIC TRYPSIN INHIBITOR CRYSTALLIZED FROM THIOCYANATE
Keywords keywords	PROTEASE INHIBITOR, TRYPSIN; PROTEASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1bhc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1bhc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

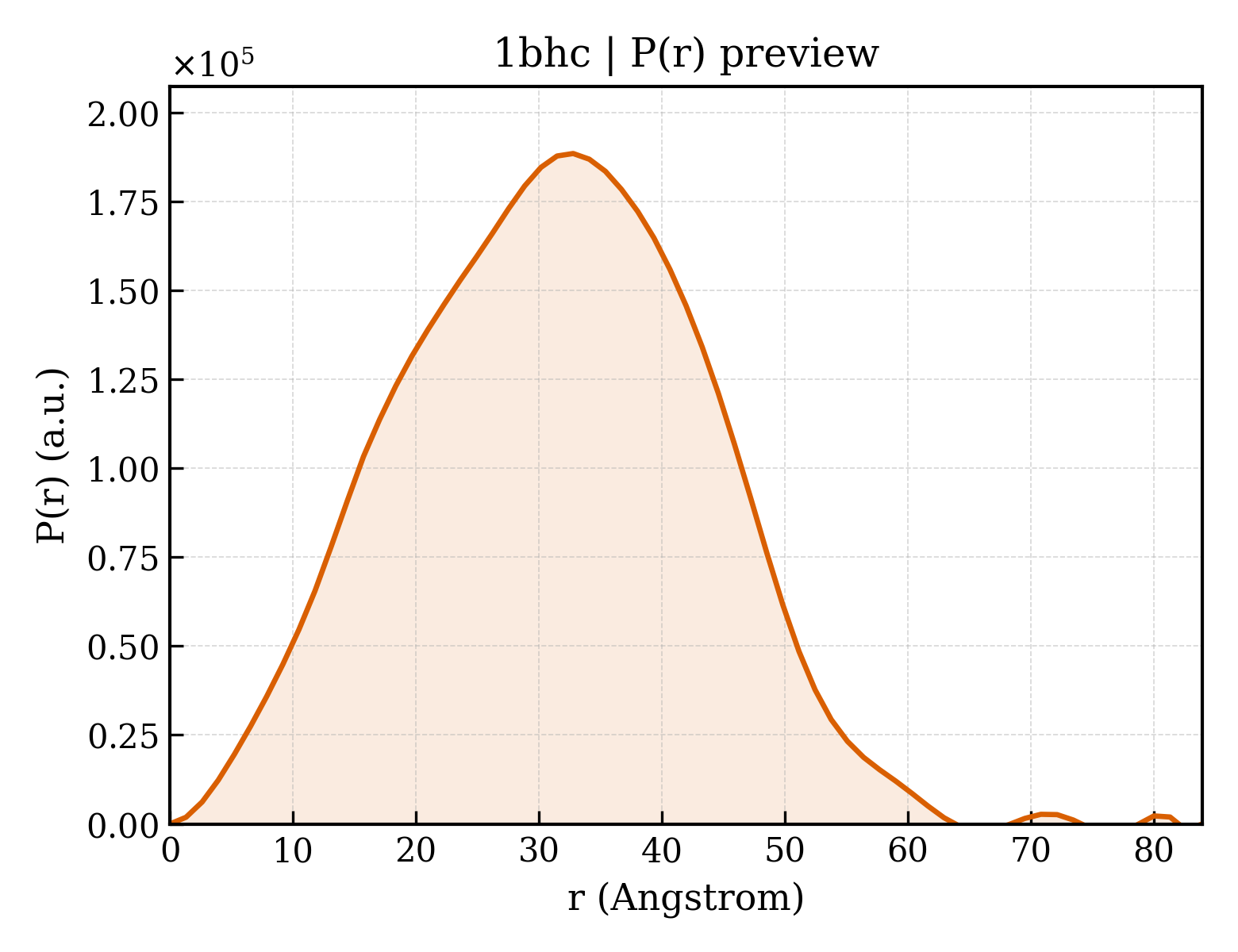

1bhc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.71 Å
Rg (electron density)	22.83 Å
Total Rg	23.67 Å
Atom count	4470
Residues	560
Excluded volume	79034 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1bhc__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (10 domains)

Domain ID domain_id	d1bhca_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1bhcb_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1bhcc_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1bhcd_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1bhce_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1bhcf_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1bhcg_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1bhch_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1bhci_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1bhcj_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

CATH v4.4 (10 domains)

Domain ID domain_id	1bhcA00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	1bhcB00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	1bhcC00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	1bhcD00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	1bhcE00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	1bhcF00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	1bhcG00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	1bhcH00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	1bhcI00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	1bhcJ00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

▶

Unit-cell length a length_a	71.560 Å
Unit-cell length b length_b	73.830 Å
Unit-cell length c length_c	64.470 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.91 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	20

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2010
R_work r_work	0.2010
R_free r_free	0.2650

Description description	BOVINE PANCREATIC TRYPSIN INHIBITOR
Molecular weight formula_weight	6527.6 kDa
Source method src_method	nat
Copy count entity_count	10

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J
Atom count atom_count	4628

BOVINE PANCREATIC TRYPSIN INHIBITOR CRYSTALLIZED FROM THIOCYANATE

1. Protein Identity and Related Structures Protein Identity & Related Structures

BOVINE PANCREATIC TRYPSIN INHIBITOR

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1bhc__assembly_1__model_1

1bhc__assembly_1__model_1 | I(q)

1bhc__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (10 domains)

CATH v4.4 (10 domains)

7. Citations (5)

Description description	THIOCYANATE ION
Molecular weight formula_weight	58.1 kDa
Source method src_method	syn
Copy count entity_count	10

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	118
