1bhd
SECOND CALPONIN HOMOLOGY DOMAIN FROM UTROPHIN
SAXS Profile

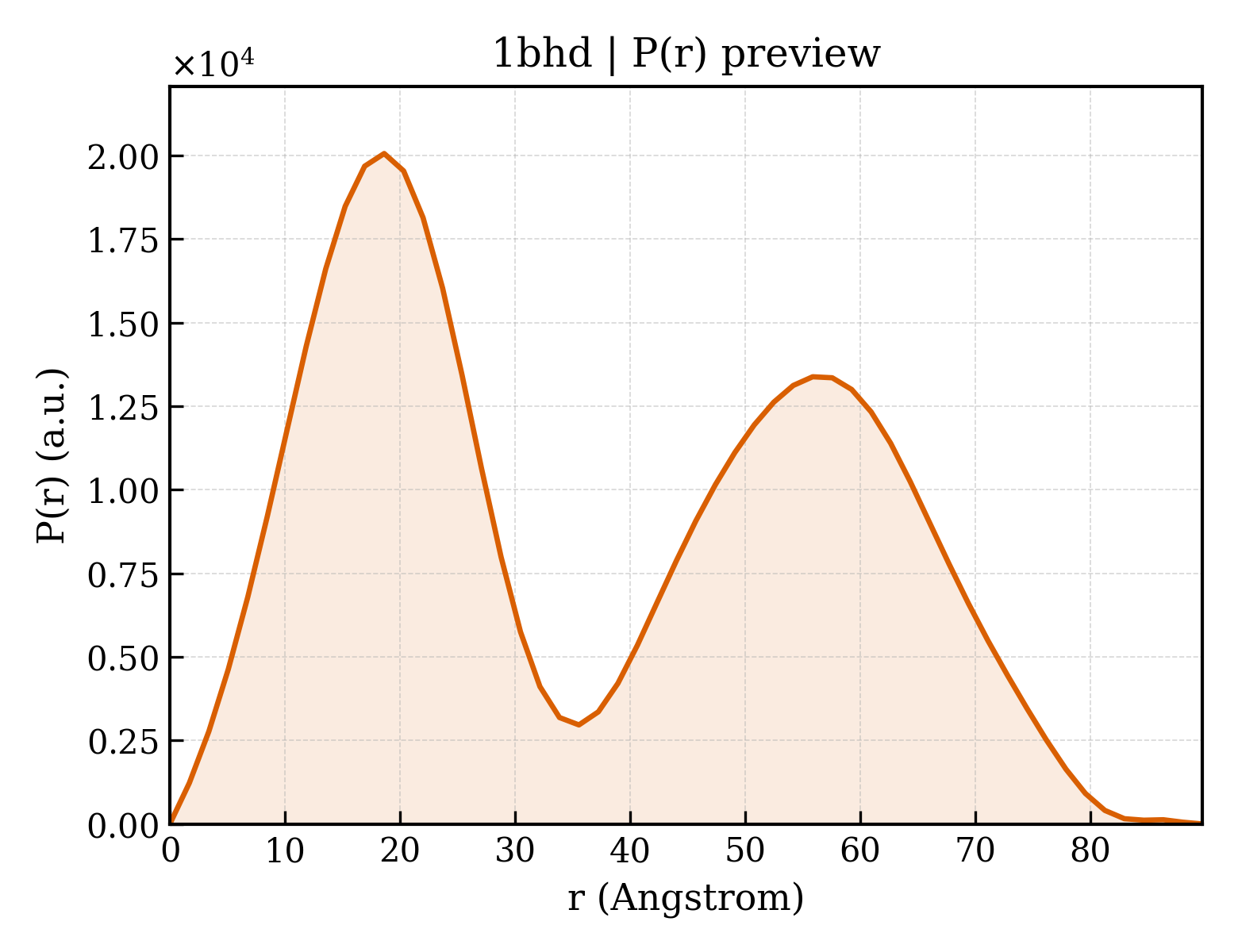

P(r) Distribution
1. Structure Basics
| entry_id | 1bhd |
| deposition_date | 1998-06-05 |
| title | SECOND CALPONIN HOMOLOGY DOMAIN FROM UTROPHIN |
| keywords | CALPONIN HOMOLOGY, ACTIN BINDING, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 29.68 Å |
| rg_electron | 29.19 Å |
| i0 | 9342850.00 |
| molecular_weight | 25045.0 kDa |
| excluded_volume | 31942 ų |
| envelope_volume | 43691 ų |
| shell_volume | 12431 ų |
| envelope_diameter | 89.5 Å |
| shell_rg | 36.61 Å |
| envelope_rg | 28.04 Å |
| shape_rg | 29.19 Å |
| total_rg | 30.07 Å |
| total_atoms | 1771 |
| n_residues | 216 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 89.8 Å |
| rg_real | 29.96 Å |
| rg_real_error | 0.92 Å |
| i0_real | 9.3430e+06 |
| i0_real_error | 1.6050e+05 |
| rg_reciprocal | 29.85 Å |
| i0_reciprocal | 9342000.0000 |
| total_estimate | 0.6208 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 18.6 Å |
| skewness | 0.197 |
| kurtosis | -1.348 |
| angular_range | — – 0.2650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5343000.0000 |
| n_real_points | 54 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.017; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.118; Smooth: 0.900 |
