CHALCONE SYNTHASE FROM ALFALFA

Method: X-RAY DIFFRACTION D_max: 81.1 Å Quality: GOOD

SAXS Profile

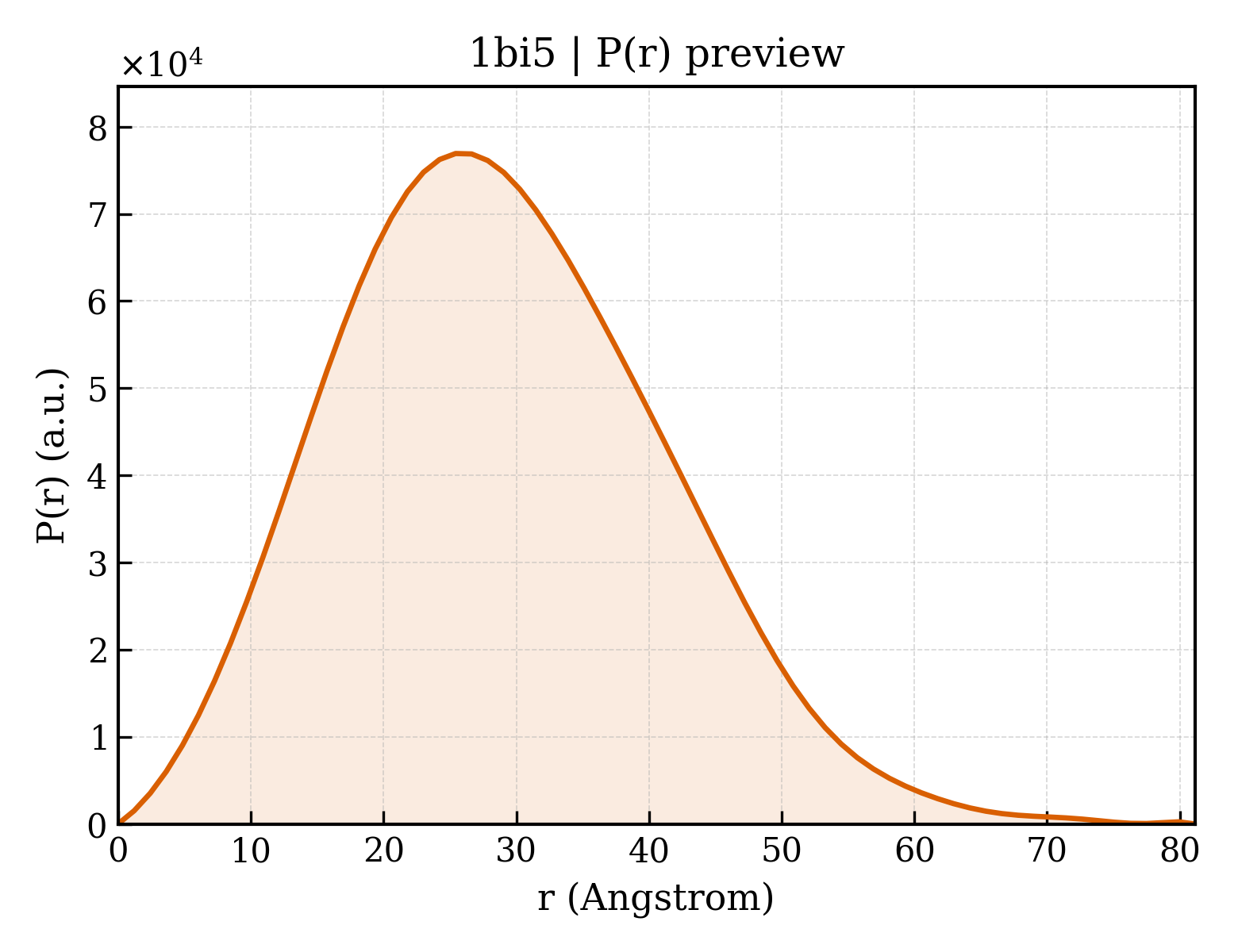

P(r) Distribution

▼

1. Structure Basics

entry_id	1bi5
deposition_date	1998-06-22
title	CHALCONE SYNTHASE FROM ALFALFA
keywords	POLYKETIDE SYNTHASE, CHALCONE BIOSYNTHESIS; POLYKETIDE SYNTHASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	22.19 Å
rg_electron	21.18 Å
i0	29999100.00
molecular_weight	42735.0 kDa
excluded_volume	53862 Å³
envelope_volume	62210 Å³
shell_volume	24263 Å³
envelope_diameter	83.9 Å
shell_rg	28.29 Å
envelope_rg	21.73 Å
shape_rg	21.16 Å
total_rg	22.11 Å
total_atoms	2997
n_residues	388
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	81.1 Å
rg_real	22.14 Å
rg_real_error	0.61 Å
i0_real	3.0000e+07
i0_real_error	4.0370e+05
rg_reciprocal	22.15 Å
i0_reciprocal	30000000.0000
total_estimate	0.8306
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	25.4 Å
skewness	0.370
kurtosis	-0.054
angular_range	— – 0.3600 Å⁻¹
current_alpha	0.0000
highest_alpha	6730000.0000
n_real_points	68
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.629; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.925; Smooth: 0.981

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	97.540 Å
length_b	97.540 Å
length_c	65.520 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 32 2 1
int_tables_number	154
crystal_system	—

resolution	1.560 Å
resolution_low	10.000 Å
r_factor	0.1355
r_work	—
r_free	0.1928

description	CHALCONE SYNTHASE
formula_weight	42787.3 kDa
ec_number	2.3.1.74
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	3612

CHALCONE SYNTHASE FROM ALFALFA

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Medicago sativa
ncbi_taxonomy_id	3879
host_organism	Escherichia coli BL21

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	479

fit	/app/data/saxs_computation/bi/1bi5/1bi5.fit
pddf	/app/data/pr_computation/bi/1bi5/1bi5.pr.out
profile	/app/data/saxs_computation/bi/1bi5/1bi5.dat
