1biy
STRUCTURE OF DIFERRIC BUFFALO LACTOFERRIN
SAXS Profile

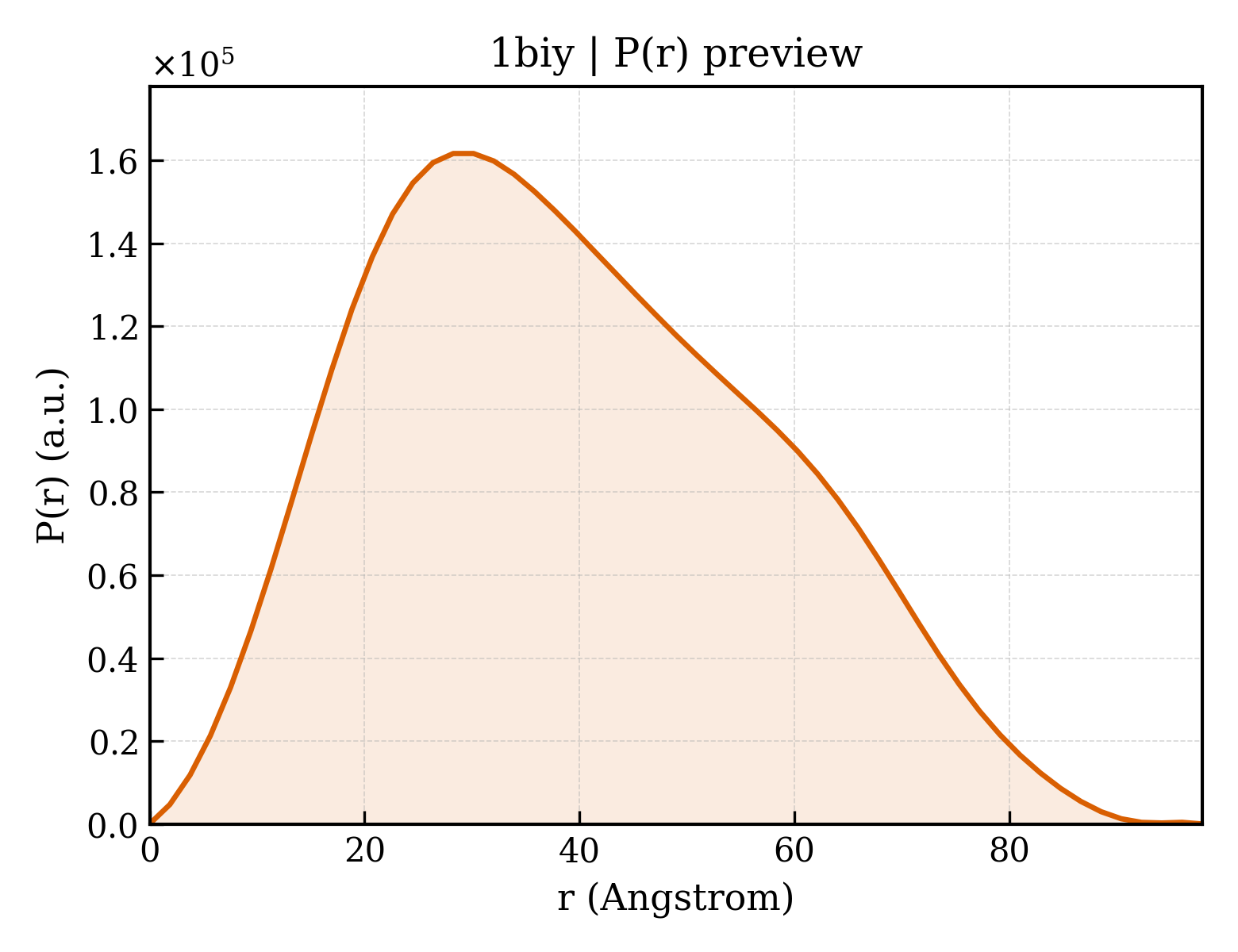

P(r) Distribution
1. Structure Basics
| entry_id | 1biy |
| deposition_date | 1998-06-21 |
| title | STRUCTURE OF DIFERRIC BUFFALO LACTOFERRIN |
| keywords | IRON BINDING PROTEIN, LACTOFERRIN, ANTIBACTERIAL, IRON-BINDING PROTEIN; IRON-BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 30.65 Å |
| rg_electron | 29.82 Å |
| i0 | 96823700.00 |
| molecular_weight | 76006.0 kDa |
| excluded_volume | 94422 ų |
| envelope_volume | 116940 ų |
| shell_volume | 33122 ų |
| envelope_diameter | 100.1 Å |
| shell_rg | 36.53 Å |
| envelope_rg | 29.52 Å |
| shape_rg | 29.82 Å |
| total_rg | 30.41 Å |
| total_atoms | 5326 |
| n_residues | 689 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 98.0 Å |
| rg_real | 30.71 Å |
| rg_real_error | 0.59 Å |
| i0_real | 9.6820e+07 |
| i0_real_error | 1.2180e+06 |
| rg_reciprocal | 30.69 Å |
| i0_reciprocal | 96820000.0000 |
| total_estimate | 0.8901 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 96.1 Å |
| skewness | 0.322 |
| kurtosis | -0.634 |
| angular_range | — – 0.2600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 23570000.0000 |
| n_real_points | 53 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.945; Smooth: 0.897 |
