1bll
;X-RAY CRYSTALLOGRAPHIC DETERMINATION OF THE STRUCTURE OF BOVINE LENS LEUCINE AMINOPEPTIDASE COMPLEXED WITH AMASTATIN: FORMULATION OF A CATALYTIC MECHANISM FEATURING A GEM-DIOLATE TRANSITION STATE ;

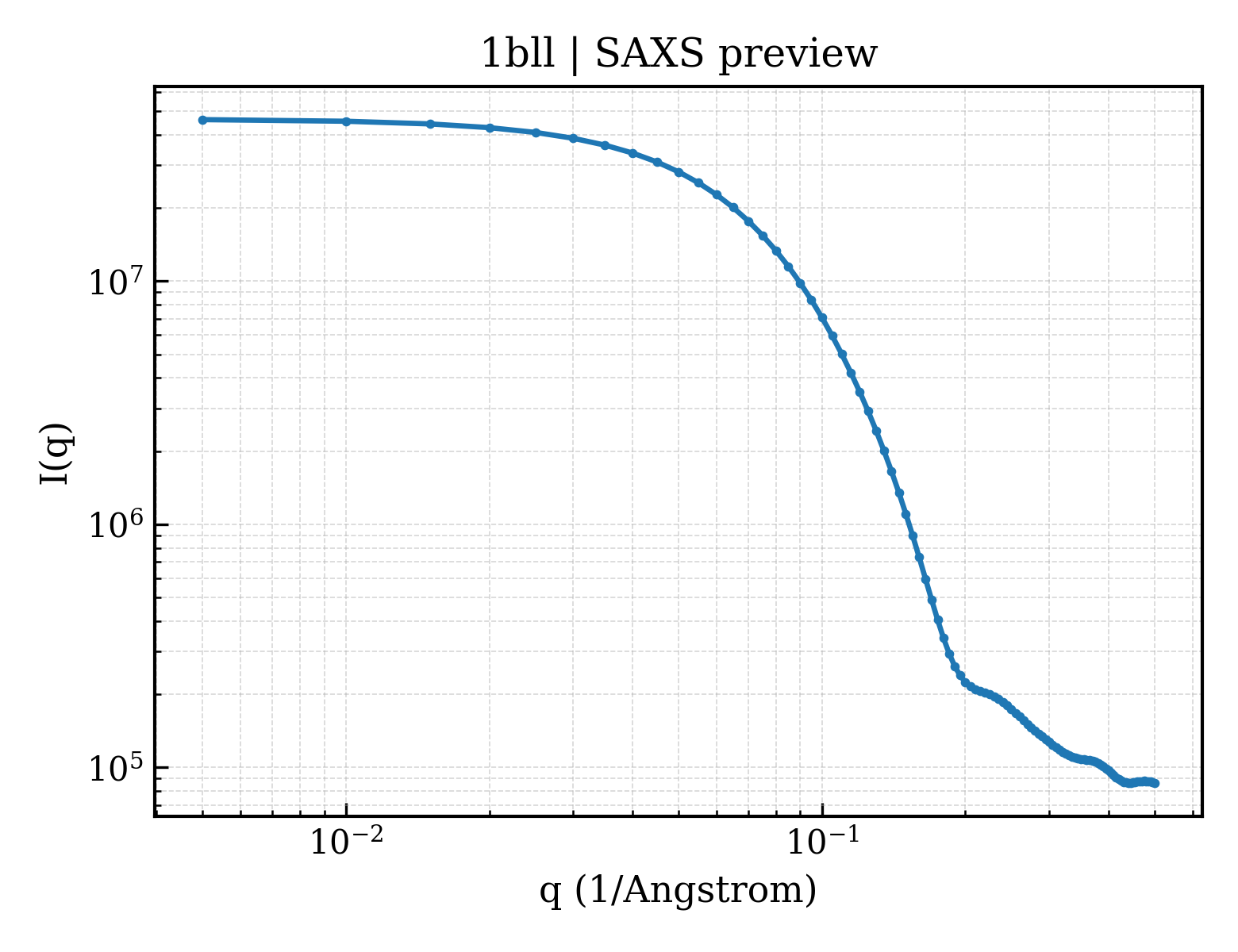

SAXS Profile

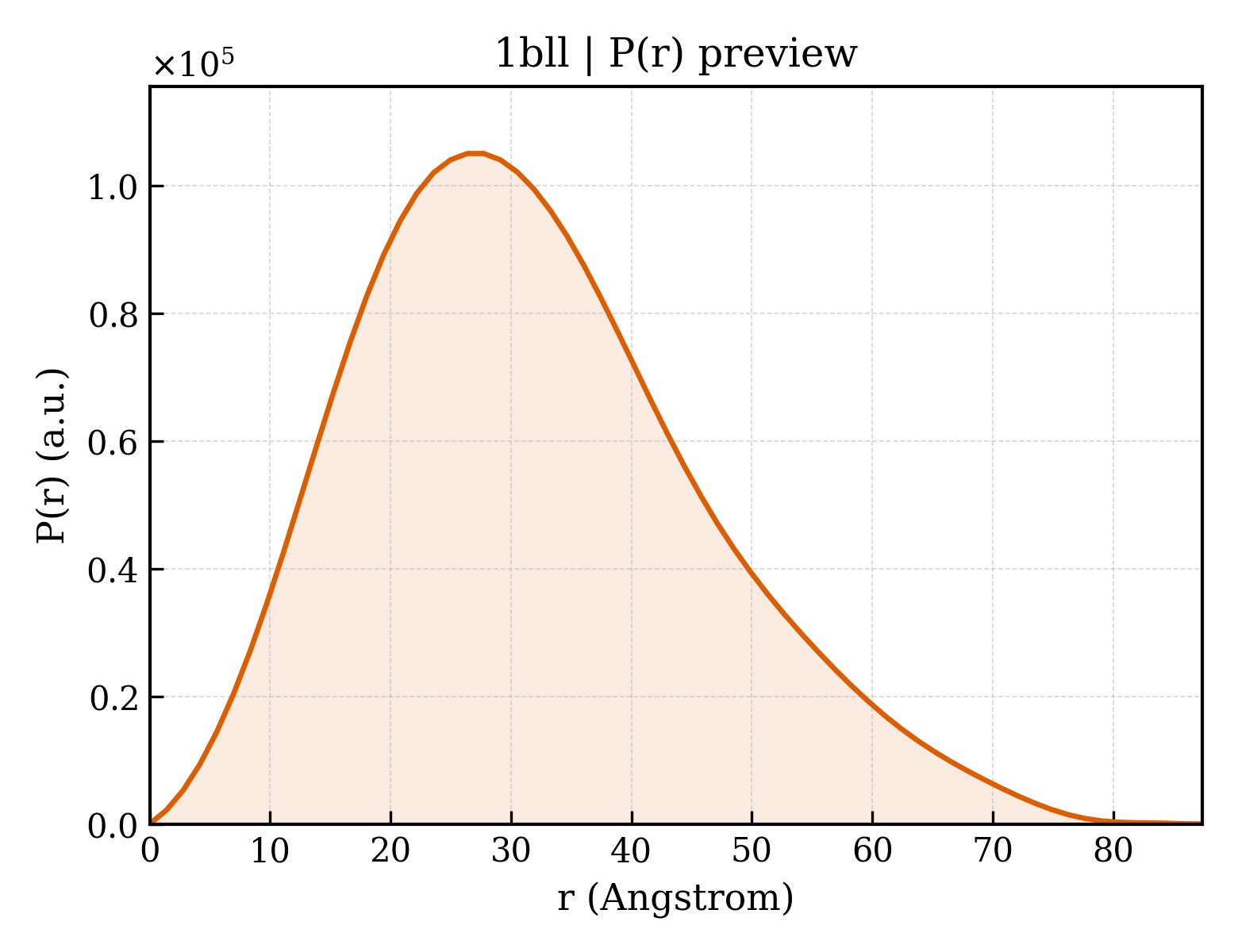

P(r) Distribution
1. Structure Basics
| entry_id | 1bll |
| deposition_date | 1993-03-02 |
| title | ;X-RAY CRYSTALLOGRAPHIC DETERMINATION OF THE STRUCTURE OF BOVINE LENS LEUCINE AMINOPEPTIDASE COMPLEXED WITH AMASTATIN: FORMULATION OF A CATALYTIC MECHANISM FEATURING A GEM-DIOLATE TRANSITION STATE ; |
| keywords | ALPHA-AMINOACYLPEPTIDE, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.54 Å |
| rg_electron | 23.88 Å |
| i0 | 46301400.00 |
| molecular_weight | 52802.0 kDa |
| excluded_volume | 66085 ų |
| envelope_volume | 76062 ų |
| shell_volume | 26965 ų |
| envelope_diameter | 88.0 Å |
| shell_rg | 30.73 Å |
| envelope_rg | 24.27 Å |
| shape_rg | 23.90 Å |
| total_rg | 24.57 Å |
| total_atoms | 3706 |
| n_residues | 484 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 87.4 Å |
| rg_real | 24.62 Å |
| rg_real_error | 0.68 Å |
| i0_real | 4.6300e+07 |
| i0_real_error | 7.1650e+05 |
| rg_reciprocal | 24.61 Å |
| i0_reciprocal | 46300000.0000 |
| total_estimate | 0.8388 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 0 |
| r_peak_primary | — Å |
| skewness | 0.495 |
| kurtosis | -0.116 |
| angular_range | — – 0.3250 Å−1 |
| current_alpha | 0.0001 |
| highest_alpha | 12690000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.679; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.868; Smooth: 0.994 |
