1bq8
Rubredoxin (Methionine Mutant) from Pyrococcus Furiosus

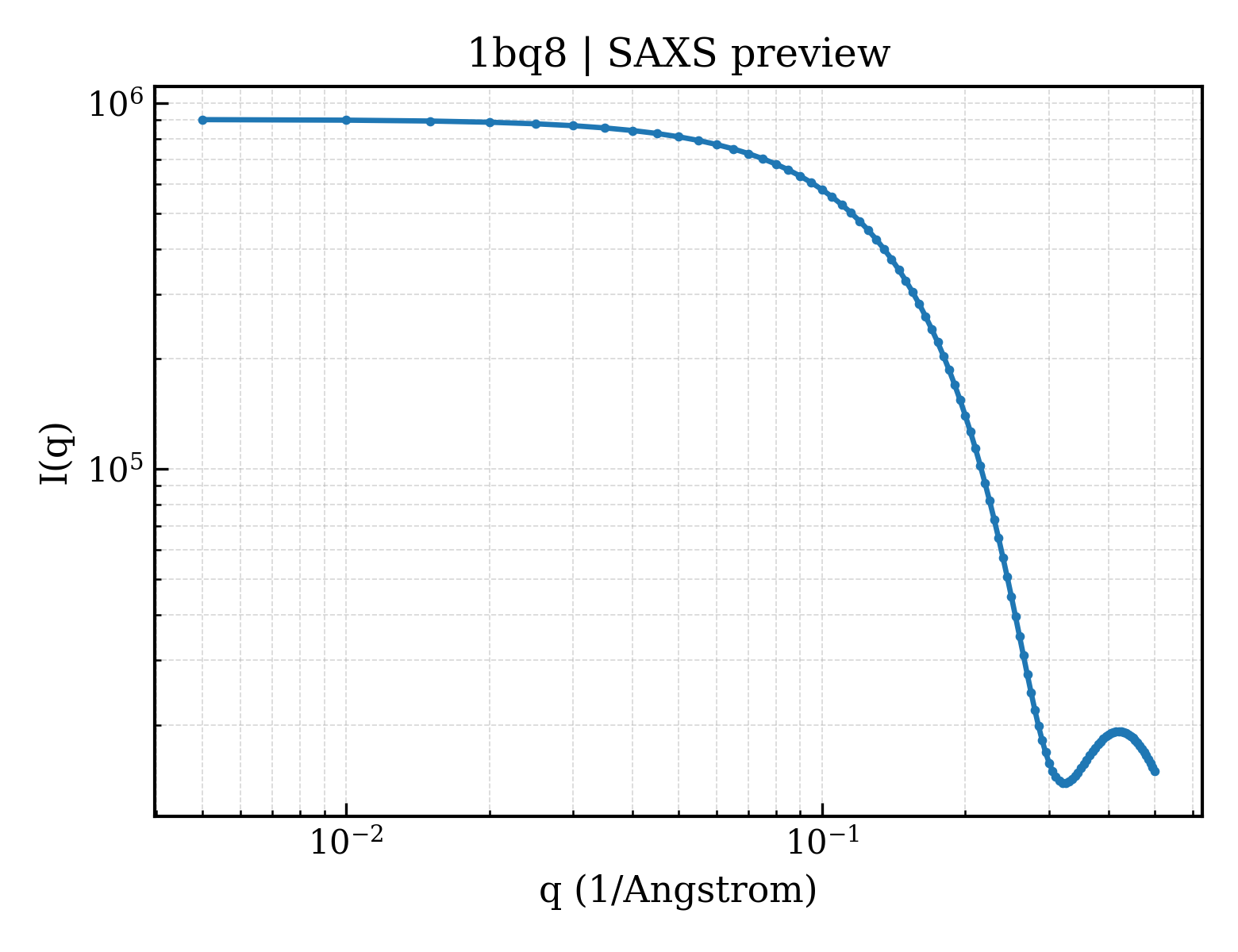

SAXS Profile

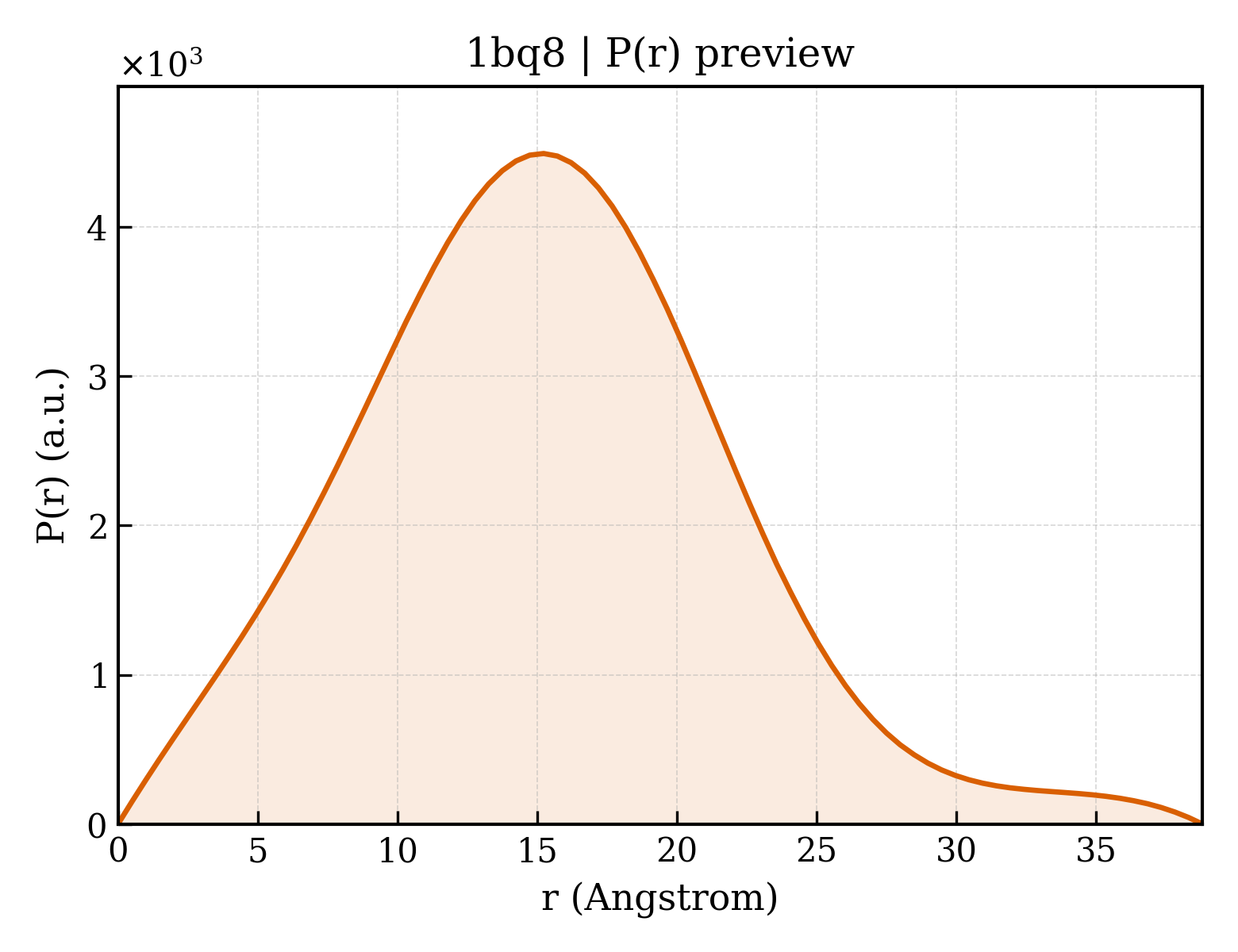

P(r) Distribution
1. Structure Basics
| entry_id | 1bq8 |
| deposition_date | 1998-08-22 |
| title | Rubredoxin (Methionine Mutant) from Pyrococcus Furiosus |
| keywords | IRON-SULFUR PROTEIN, HIGH-RESOLUTION STRUCTURE, METAL BINDING PROTEIN; METAL BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.48 Å |
| rg_electron | 9.98 Å |
| i0 | 902230.00 |
| molecular_weight | 6075.0 kDa |
| excluded_volume | 7474 ų |
| envelope_volume | 7806 ų |
| shell_volume | 6969 ų |
| envelope_diameter | 36.1 Å |
| shell_rg | 15.09 Å |
| envelope_rg | 10.37 Å |
| shape_rg | 9.93 Å |
| total_rg | 11.48 Å |
| total_atoms | 422 |
| n_residues | 54 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 38.8 Å |
| rg_real | 11.80 Å |
| rg_real_error | 0.08 Å |
| i0_real | 9.0090e+05 |
| i0_real_error | 7.5790e+03 |
| rg_reciprocal | 11.41 Å |
| i0_reciprocal | 902200.0000 |
| total_estimate | 0.6483 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 15.2 Å |
| skewness | 0.369 |
| kurtosis | 0.241 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 5.9620 |
| highest_alpha | 95640.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.784; Stabil: 0.931; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.317 |
