1brf
Rubredoxin (Wild Type) from Pyrococcus Furiosus
SAXS Profile

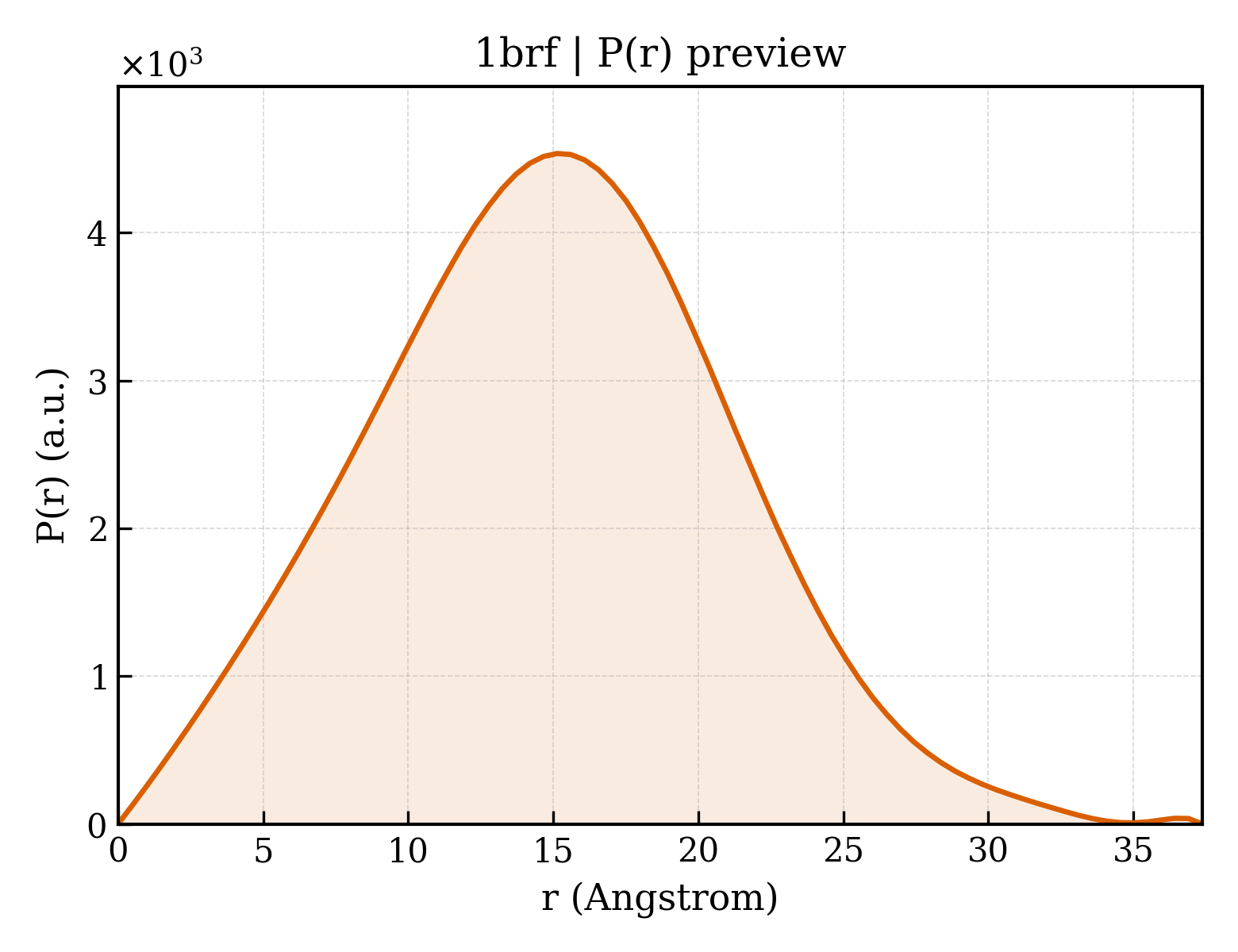

P(r) Distribution
1. Structure Basics
| entry_id | 1brf |
| deposition_date | 1998-08-24 |
| title | Rubredoxin (Wild Type) from Pyrococcus Furiosus |
| keywords | IRON-SULFUR PROTEIN, HIGH-RESOLUTION STRUCTURE, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.50 Å |
| rg_electron | 9.95 Å |
| i0 | 878538.00 |
| molecular_weight | 5943.0 kDa |
| excluded_volume | 7314 ų |
| envelope_volume | 7800 ų |
| shell_volume | 6965 ų |
| envelope_diameter | 35.5 Å |
| shell_rg | 15.08 Å |
| envelope_rg | 10.37 Å |
| shape_rg | 9.91 Å |
| total_rg | 11.48 Å |
| total_atoms | 414 |
| n_residues | 53 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 37.4 Å |
| rg_real | 11.43 Å |
| rg_real_error | 0.27 Å |
| i0_real | 8.7850e+05 |
| i0_real_error | 9.1850e+03 |
| rg_reciprocal | 11.43 Å |
| i0_reciprocal | 878500.0000 |
| total_estimate | 0.8761 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.1 Å |
| skewness | 0.135 |
| kurtosis | -0.220 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 102500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.814; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.944 |
