1bqk
OXIDIZED PSEUDOAZURIN
SAXS Profile

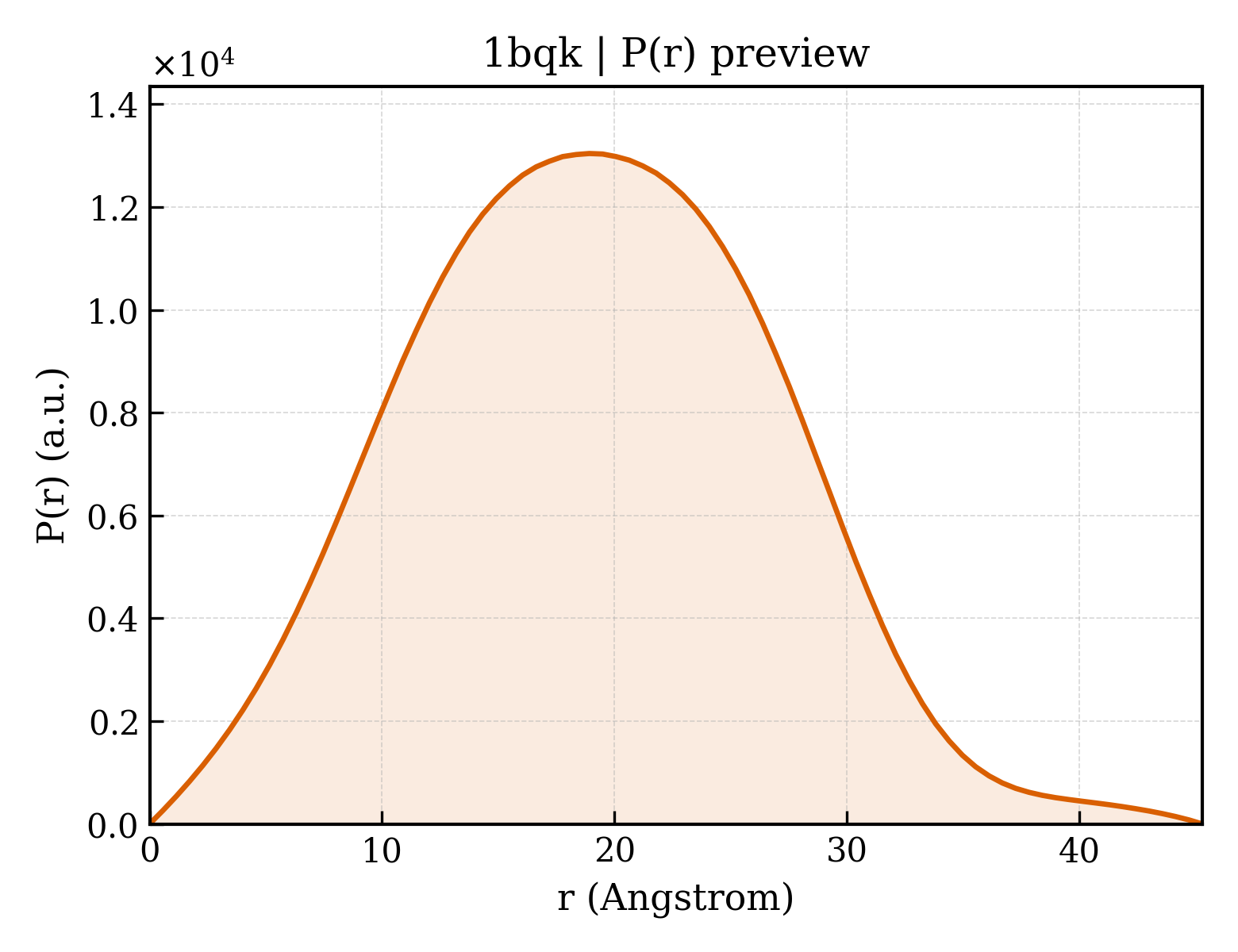

P(r) Distribution
1. Structure Basics
| entry_id | 1bqk |
| deposition_date | 1998-08-17 |
| title | OXIDIZED PSEUDOAZURIN |
| keywords | CUPROPROTEIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.45 Å |
| rg_electron | 13.12 Å |
| i0 | 3496610.00 |
| molecular_weight | 13080.0 kDa |
| excluded_volume | 16371 ų |
| envelope_volume | 18018 ų |
| shell_volume | 11609 ų |
| envelope_diameter | 42.7 Å |
| shell_rg | 18.99 Å |
| envelope_rg | 13.35 Å |
| shape_rg | 13.09 Å |
| total_rg | 14.48 Å |
| total_atoms | 914 |
| n_residues | 124 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.3 Å |
| rg_real | 14.54 Å |
| rg_real_error | 0.08 Å |
| i0_real | 3.4410e+06 |
| i0_real_error | 2.8520e+04 |
| rg_reciprocal | 14.35 Å |
| i0_reciprocal | 3497000.0000 |
| total_estimate | 0.7011 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 18.9 Å |
| skewness | 0.145 |
| kurtosis | -0.300 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 8.3550 |
| highest_alpha | 886100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.900; Stabil: 0.943; Sysdev: 0.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.642 |
