1bqr
REDUCED PSEUDOAZURIN

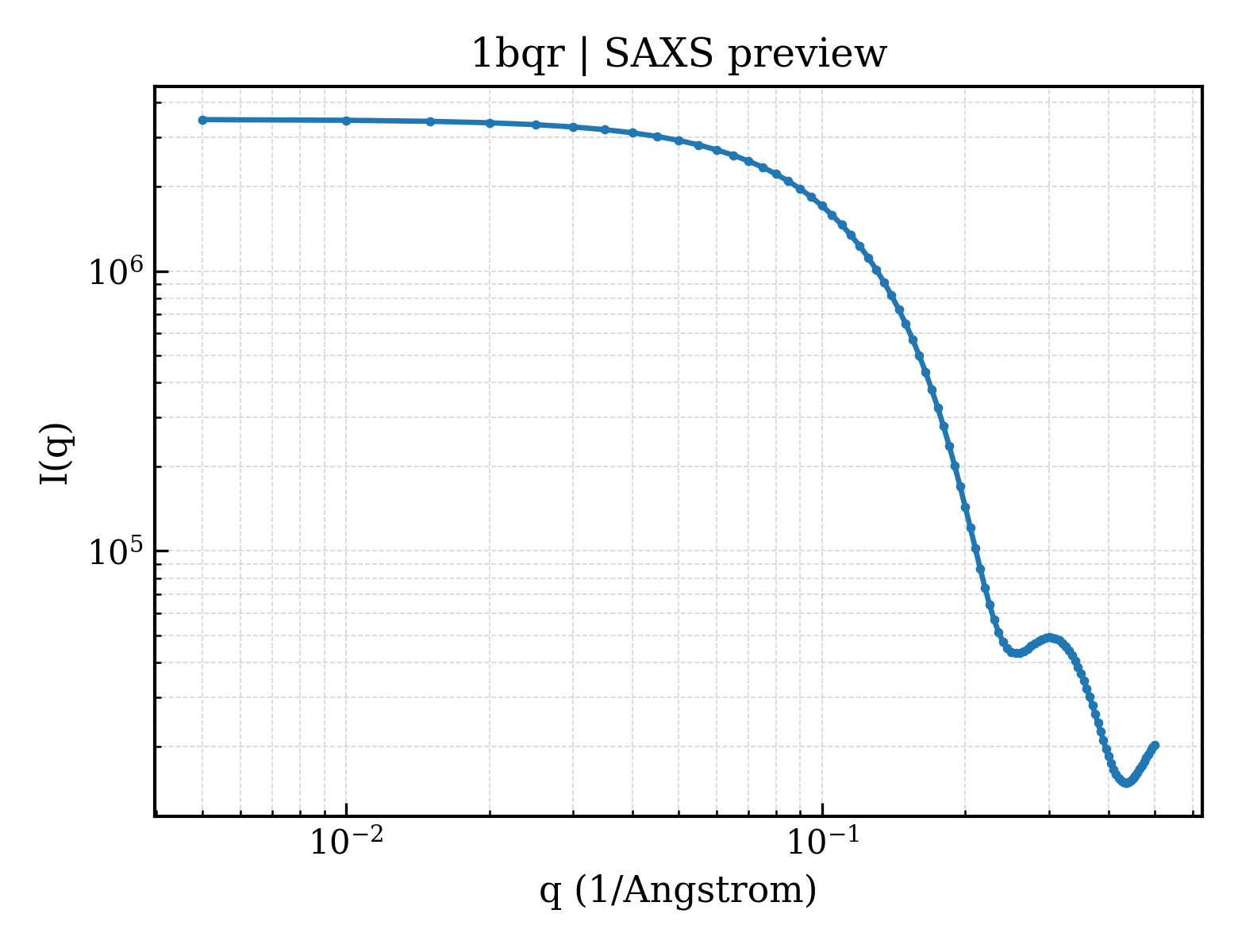

SAXS Profile

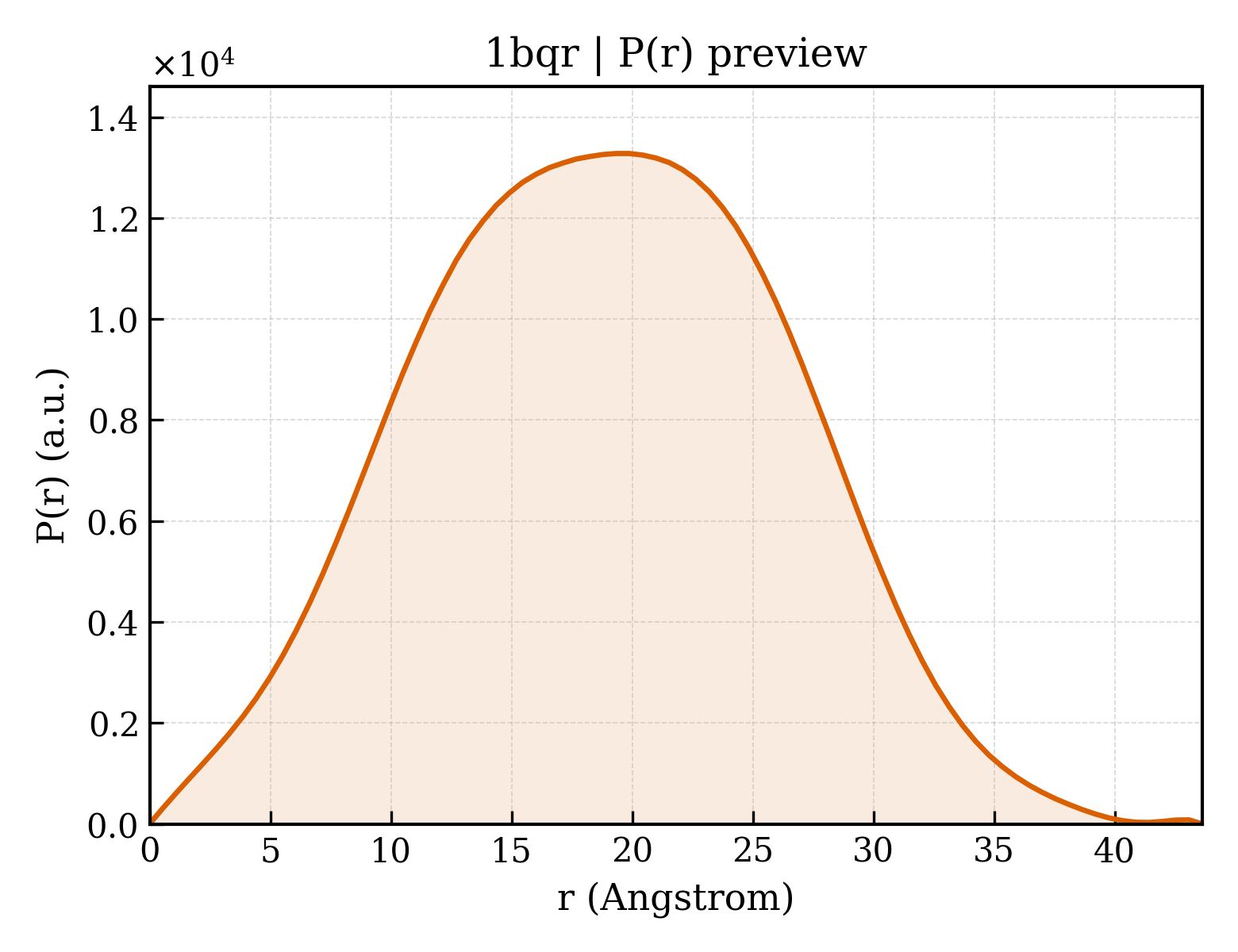

P(r) Distribution
1. Structure Basics
| entry_id | 1bqr |
| deposition_date | 1998-08-17 |
| title | REDUCED PSEUDOAZURIN |
| keywords | ELECTRON TRANSPORT, CUPROPROTEIN; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.43 Å |
| rg_electron | 13.11 Å |
| i0 | 3479480.00 |
| molecular_weight | 13080.0 kDa |
| excluded_volume | 16371 ų |
| envelope_volume | 17925 ų |
| shell_volume | 11567 ų |
| envelope_diameter | 41.1 Å |
| shell_rg | 18.97 Å |
| envelope_rg | 13.33 Å |
| shape_rg | 13.08 Å |
| total_rg | 14.46 Å |
| total_atoms | 914 |
| n_residues | 124 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 43.6 Å |
| rg_real | 14.32 Å |
| rg_real_error | 0.19 Å |
| i0_real | 3.4790e+06 |
| i0_real_error | 3.2920e+04 |
| rg_reciprocal | 14.33 Å |
| i0_reciprocal | 3479000.0000 |
| total_estimate | 0.9019 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 1 |
| r_peak_primary | 43.1 Å |
| skewness | 0.039 |
| kurtosis | -0.497 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 870300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.922; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.968 |
