1bs8
PEPTIDE DEFORMYLASE AS ZN2+ CONTAINING FORM IN COMPLEX WITH TRIPEPTIDE MET-ALA-SER

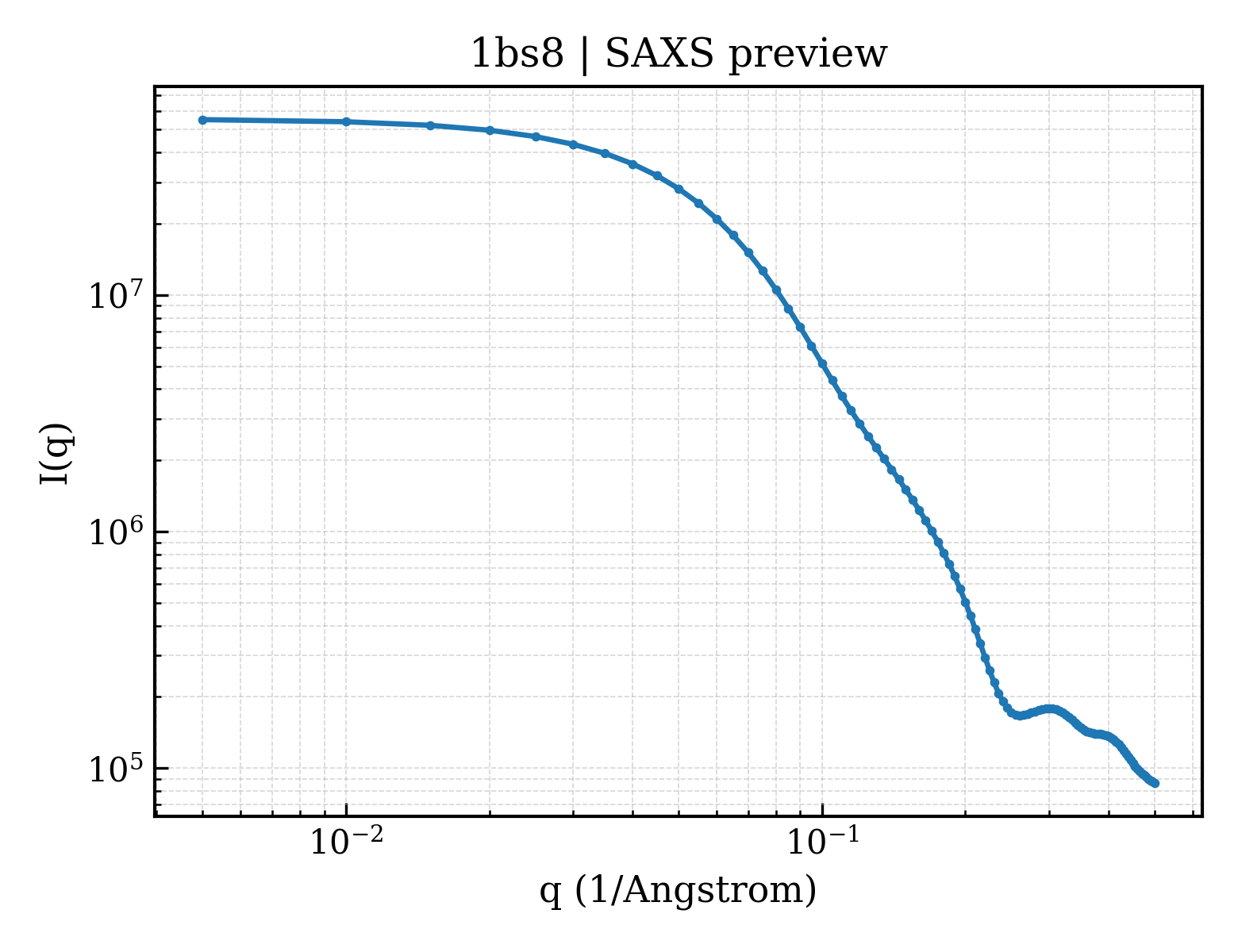

SAXS Profile

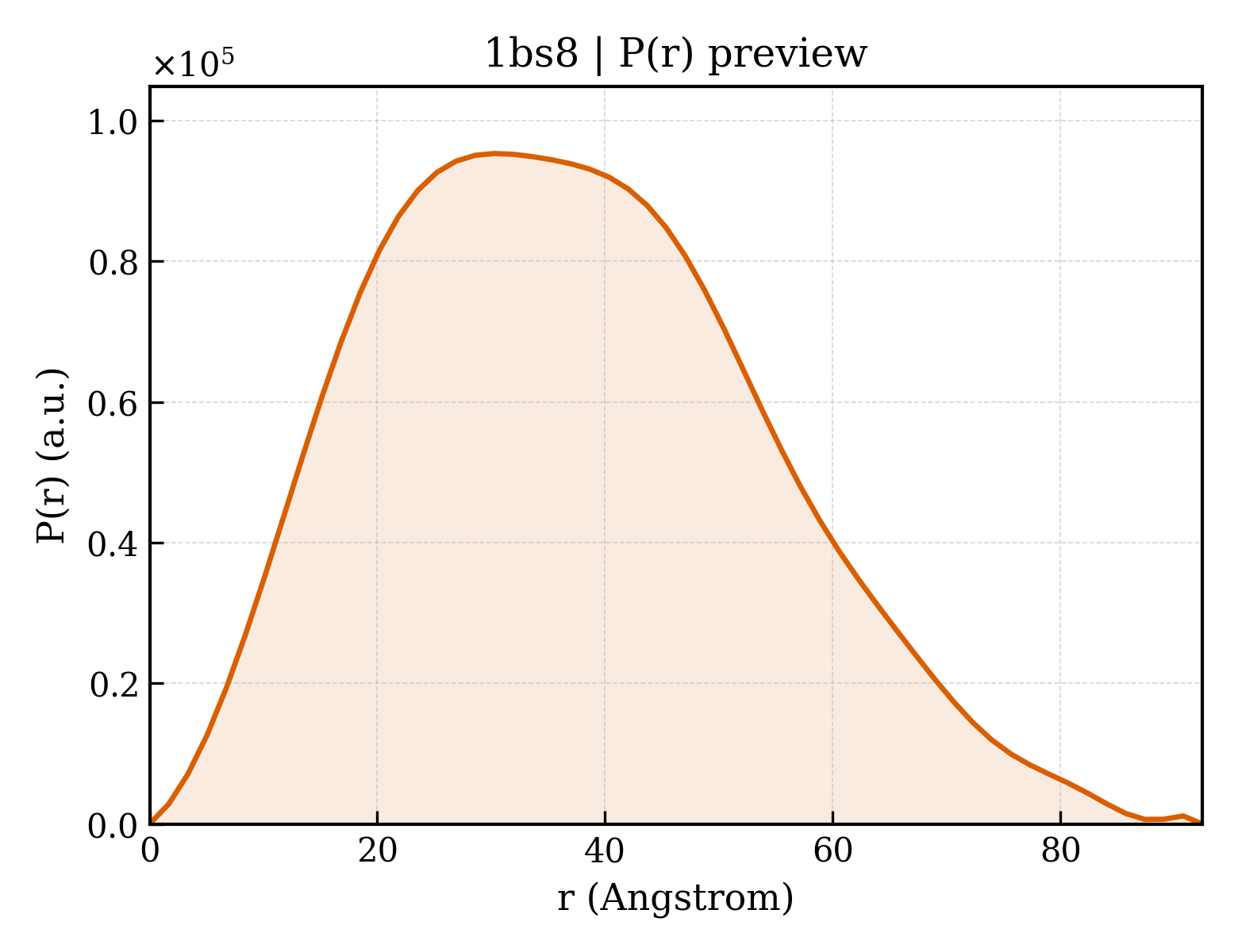

P(r) Distribution
1. Structure Basics
| entry_id | 1bs8 |
| deposition_date | 1998-09-01 |
| title | PEPTIDE DEFORMYLASE AS ZN2+ CONTAINING FORM IN COMPLEX WITH TRIPEPTIDE MET-ALA-SER |
| keywords | HYDROLASE, IRON METALLOPROTEASE; PROTEIN SYNTHESIS; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.66 Å |
| rg_electron | 28.16 Å |
| i0 | 55459200.00 |
| molecular_weight | 57878.0 kDa |
| excluded_volume | 72539 ų |
| envelope_volume | 94190 ų |
| shell_volume | 28608 ų |
| envelope_diameter | 96.0 Å |
| shell_rg | 34.52 Å |
| envelope_rg | 27.86 Å |
| shape_rg | 28.17 Å |
| total_rg | 28.78 Å |
| total_atoms | 4042 |
| n_residues | 513 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 92.5 Å |
| rg_real | 28.69 Å |
| rg_real_error | 0.76 Å |
| i0_real | 5.5460e+07 |
| i0_real_error | 8.7730e+05 |
| rg_reciprocal | 28.68 Å |
| i0_reciprocal | 55460000.0000 |
| total_estimate | 0.8888 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 30.3 Å |
| skewness | 0.336 |
| kurtosis | -0.405 |
| angular_range | — – 0.2750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 11070000.0000 |
| n_real_points | 56 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.929; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.948; Smooth: 0.816 |
