1bv1
BIRCH POLLEN ALLERGEN BET V 1

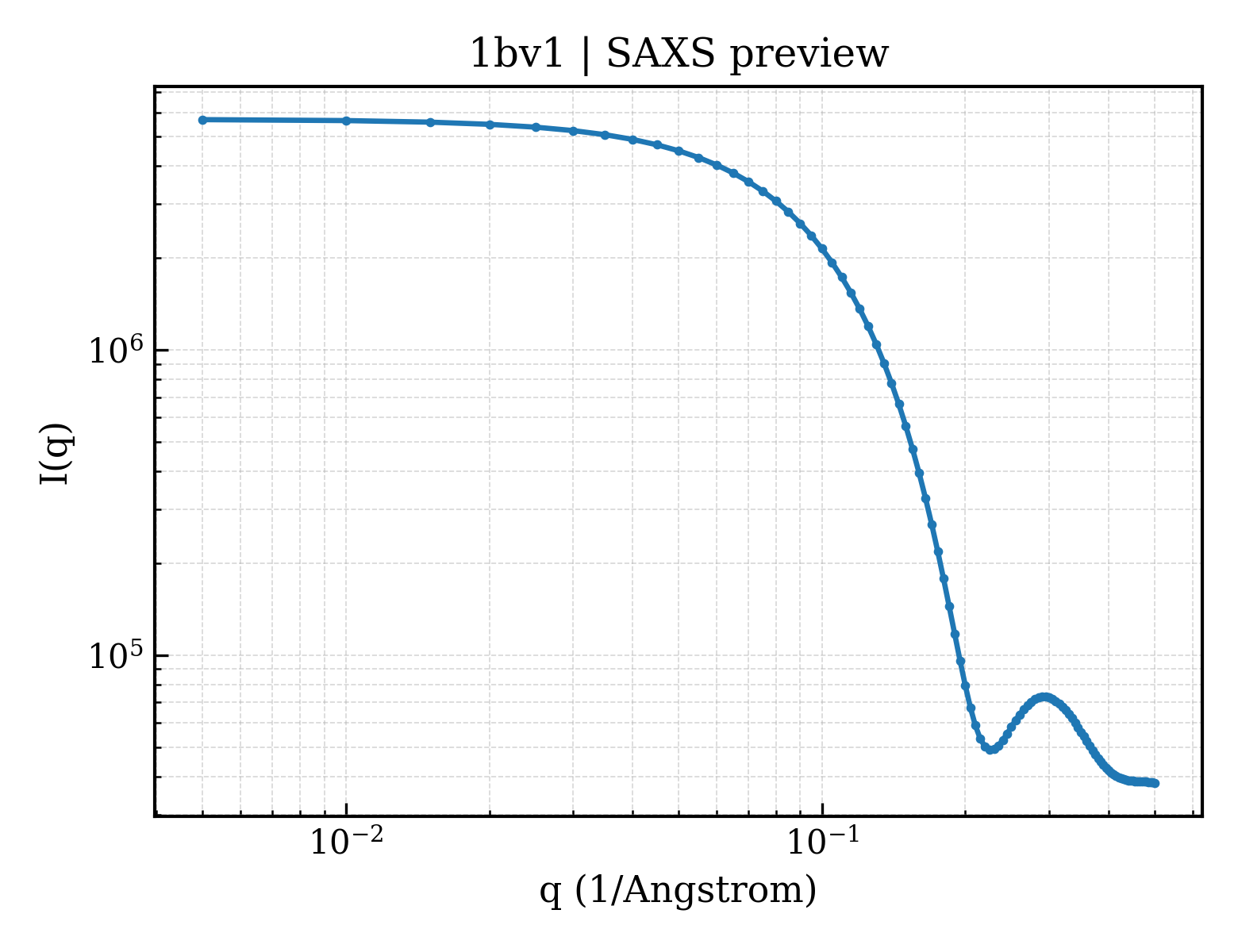

SAXS Profile

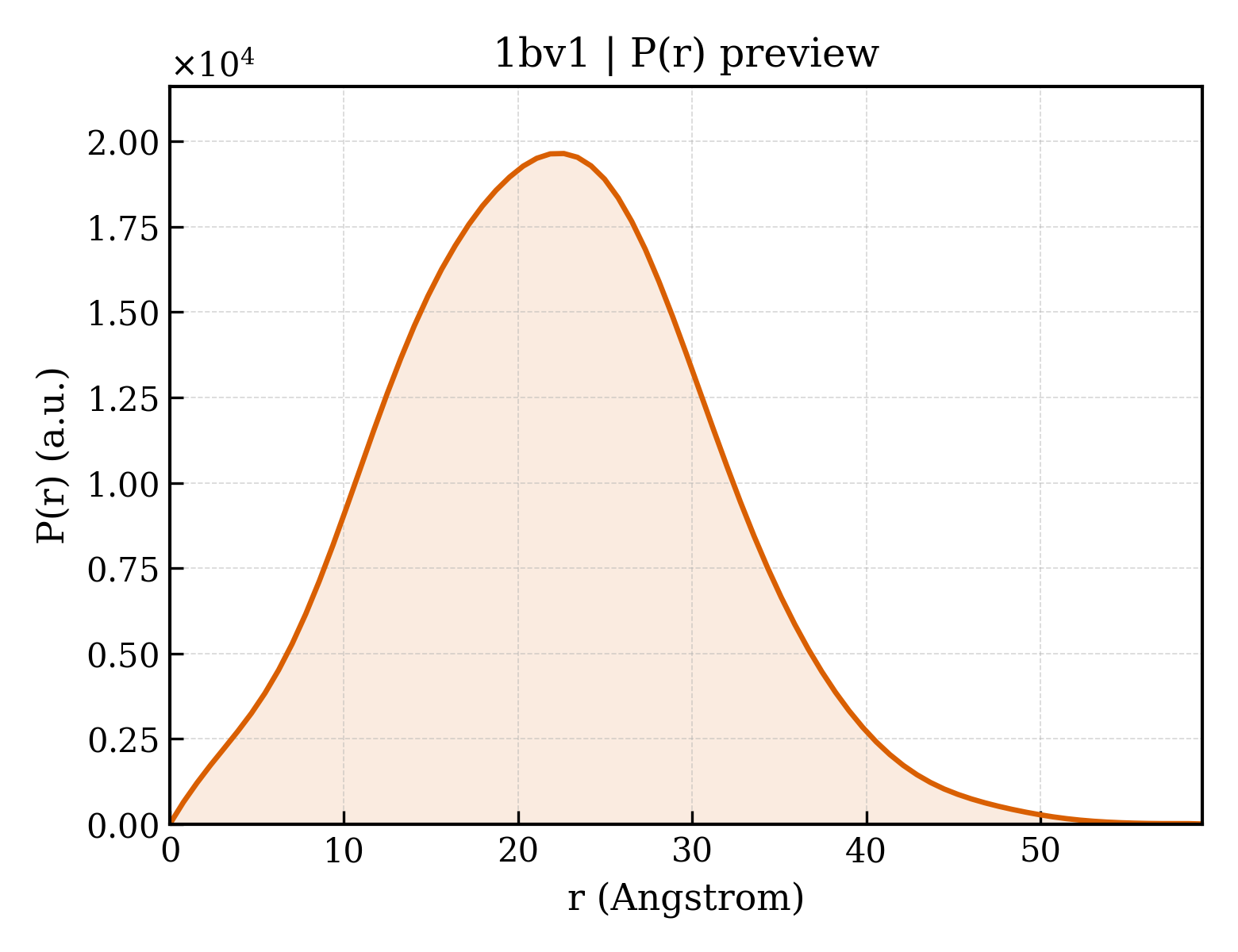

P(r) Distribution
1. Structure Basics
| entry_id | 1bv1 |
| deposition_date | 1997-07-08 |
| title | BIRCH POLLEN ALLERGEN BET V 1 |
| keywords | ALLERGEN, PATHOGENESIS-RELATED PROTEIN; ALLERGEN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.90 Å |
| rg_electron | 15.56 Å |
| i0 | 5692360.00 |
| molecular_weight | 17401.0 kDa |
| excluded_volume | 21925 ų |
| envelope_volume | 25485 ų |
| shell_volume | 14147 ų |
| envelope_diameter | 57.0 Å |
| shell_rg | 21.08 Å |
| envelope_rg | 15.67 Å |
| shape_rg | 15.55 Å |
| total_rg | 16.66 Å |
| total_atoms | 1230 |
| n_residues | 159 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 59.3 Å |
| rg_real | 16.81 Å |
| rg_real_error | 0.39 Å |
| i0_real | 5.6920e+06 |
| i0_real_error | 5.8220e+04 |
| rg_reciprocal | 16.82 Å |
| i0_reciprocal | 5692000.0000 |
| total_estimate | 0.7196 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 22.6 Å |
| skewness | 0.206 |
| kurtosis | -0.150 |
| angular_range | — – 0.4700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 940600.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.663; Stabil: 1.000; Sysdev: 0.456; Positv: 1.000; Valcen: 0.996; Smooth: 1.000 |
