SAXSdb — 7n0v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Major pollen allergen Bet v 1-A

Betula pendula

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	REGN5715 Fab heavy chain × 1 REGN5715 Fab light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BEV1A_BETPN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–159； UniProt 2–160

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7n0v
Deposition date deposition_date	2021-05-26
Structure title title	Complex of recombinant Bet v 1 with Fab fragment of REGN5715
Keywords keywords	Birch pollen, allergy, neutralizing antibody, immunotherapy, ALLERGEN; ALLERGEN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7n0v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7n0v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

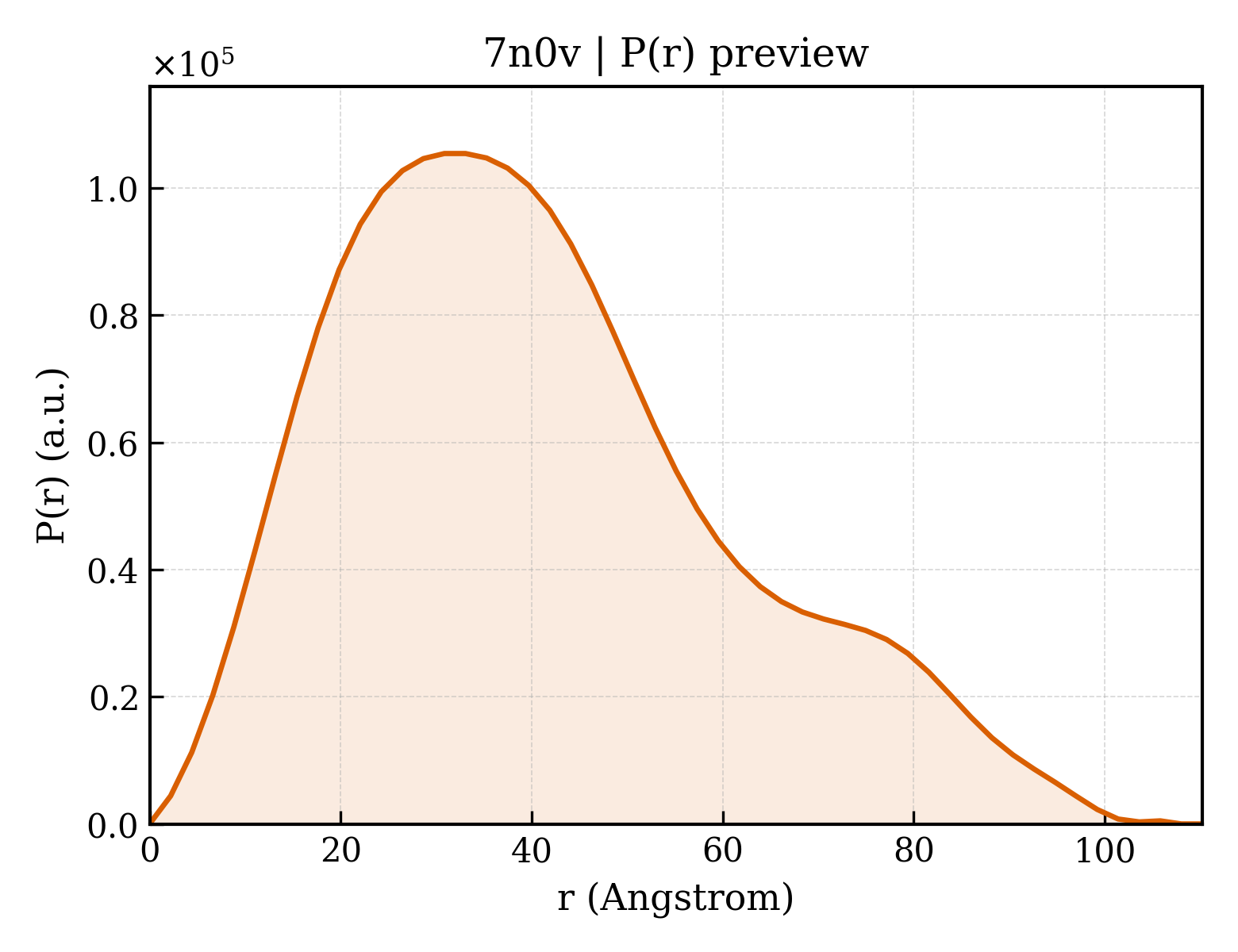

7n0v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.71 Å
Rg (electron density)	31.75 Å
Total Rg	32.26 Å
Atom count	4482
Residues	584
Excluded volume	79383 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7n0v__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	REGN5715 Fab heavy chain
Molecular weight formula_weight	24322.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	4482

QVQLVQSGAEVKKPGASVKVSCKASGYTFISYNIFWVRQATGQGLDWMGWMNPFRNNAGYAQKFQGRVTVTWDTSISTAYMELSSLSSEDTAIYYCAREHGSSWGFFDYWGQGTLVTVSSASTKGPSVFPLAPCSRSTSESTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTKTYTCNVDHKPSNTKVDKRVESKYGPP

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	REGN5715 Fab light chain
Molecular weight formula_weight	23447.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

EIVLTQSPGTLSLSPGERATLSCRASQSVSSSYLAWYQQKPGQAPRLLIYGASSRATGIPDRFSGSGSGTDFTLTISRLEPEDFAVYYCQQYGSSPWTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	Major pollen allergen Bet v 1-A
Molecular weight formula_weight	20743.1 kDa
Mutation mutation	F63L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GVFNYETETTSVIPAARLFKAFILDGDNLFPKVAPQAISSVENIEGNGGPGTIKKISFPEGLPFKYVKDRVDEVDHTNFKYNYSVIEGGPIGDTLEKISNEIKIVATPDGGSILKISNKYHTKGDHEVKAEQVKASKEMGETLLRAVESYLLAHSDAYNEQKLISEEDLGGEQKLISEEDLHHHHHH

Source Source

Source organism organism	Betula pendula
Common name common_name	European white birch, Betula verrucosa
NCBI taxonomy ID ncbi_taxonomy_id	3505
Host organism host_organism	Cricetulus griseus

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	7n0vH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7n0vH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7n0vL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7n0vL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	133.105 Å
Unit-cell length b length_b	133.105 Å
Unit-cell length c length_c	145.420 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	3.710 Å
Low-resolution limit resolution_low	49.090 Å
R factor r_factor	0.3294
R_work r_work	0.3268
R_free r_free	0.3777
