1bwo
THE CRYSTAL STRUCTURE OF WHEAT NON-SPECIFIC TRANSFER PROTEIN COMPLEXED WITH TWO MOLECULES OF PHOSPHOLIPID AT 2.1 A RESOLUTION

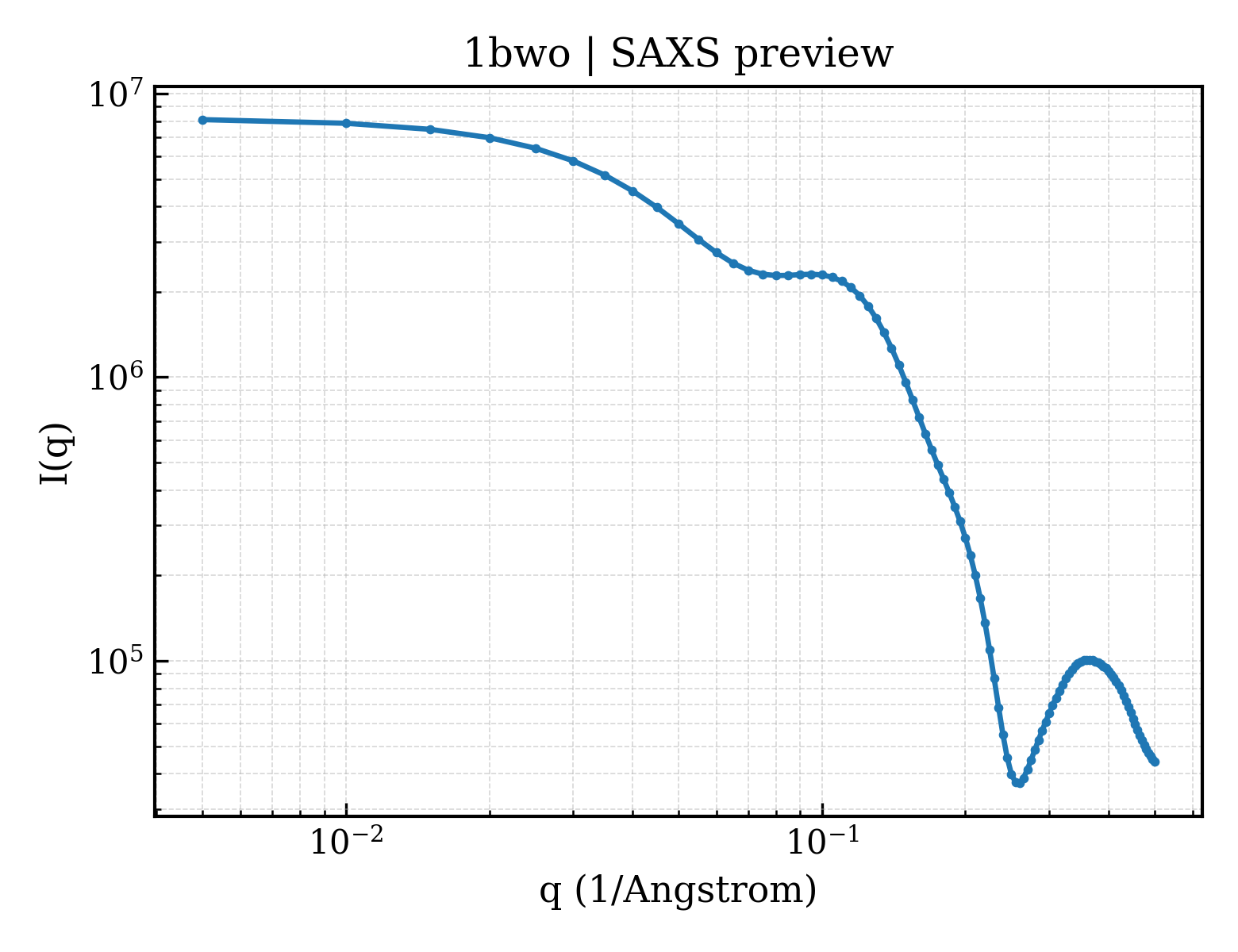

SAXS Profile

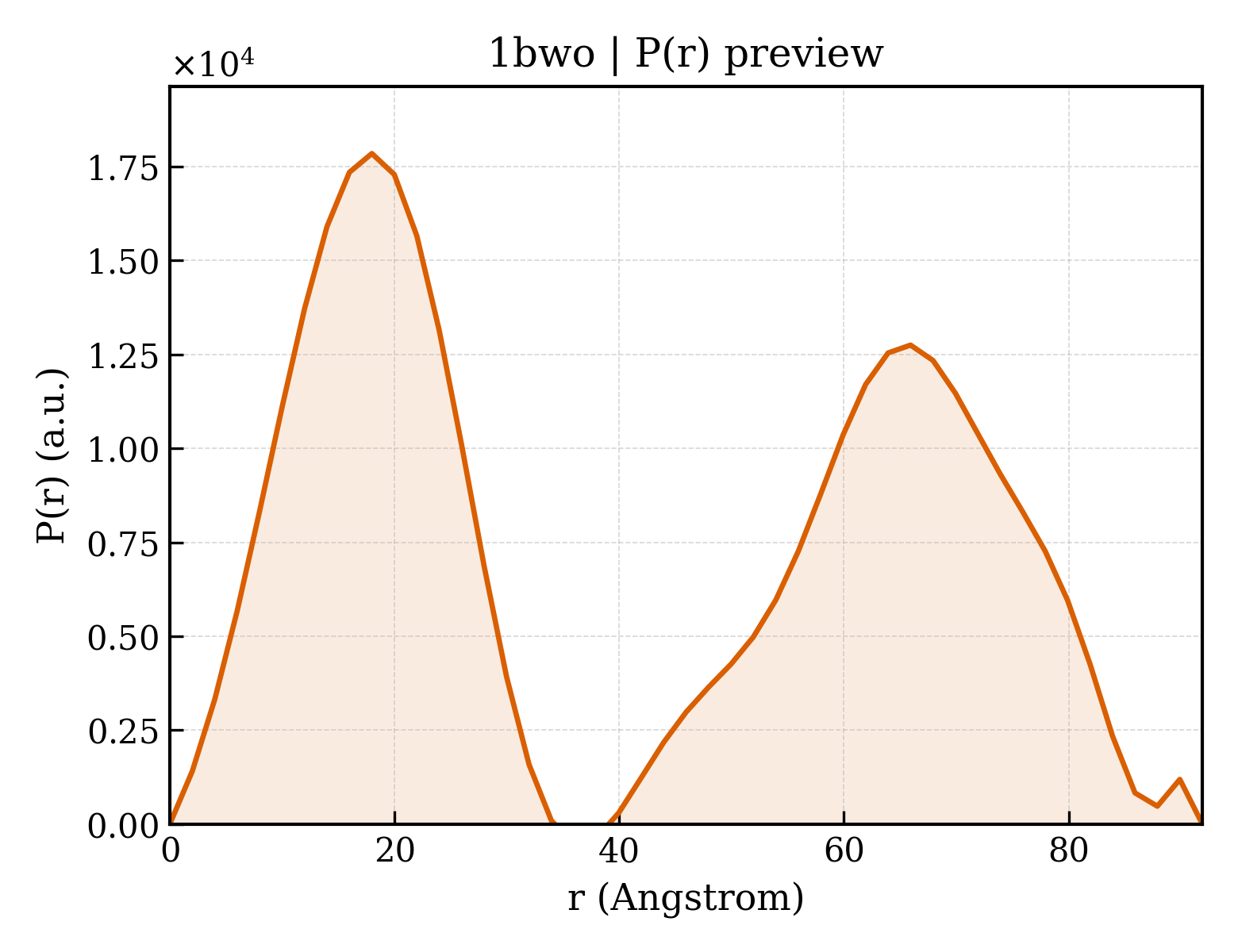

P(r) Distribution
1. Structure Basics
| entry_id | 1bwo |
| deposition_date | 1998-09-25 |
| title | THE CRYSTAL STRUCTURE OF WHEAT NON-SPECIFIC TRANSFER PROTEIN COMPLEXED WITH TWO MOLECULES OF PHOSPHOLIPID AT 2.1 A RESOLUTION |
| keywords | LIPID TRANSFER PROTEIN, WHEAT, LIPID BINDING; LIPID TRANSFER PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 34.08 Å |
| rg_electron | 33.48 Å |
| i0 | 8169880.00 |
| molecular_weight | 21092.0 kDa |
| excluded_volume | 25892 ų |
| envelope_volume | 39733 ų |
| shell_volume | 9875 ų |
| envelope_diameter | 98.0 Å |
| shell_rg | 40.90 Å |
| envelope_rg | 31.22 Å |
| shape_rg | 33.48 Å |
| total_rg | 34.16 Å |
| total_atoms | 1458 |
| n_residues | 180 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 91.9 Å |
| rg_real | 34.42 Å |
| rg_real_error | 0.93 Å |
| i0_real | 8.1700e+06 |
| i0_real_error | 1.2930e+05 |
| rg_reciprocal | 34.22 Å |
| i0_reciprocal | 8168000.0000 |
| total_estimate | 0.5390 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 18.0 Å |
| skewness | 0.119 |
| kurtosis | -1.598 |
| angular_range | — – 0.2300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 543900.0000 |
| n_real_points | 47 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.001; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.000; Smooth: 0.000 |
