1bws

;CRYSTAL STRUCTURE OF GDP-4-KETO-6-DEOXY-D-MANNOSE EPIMERASE/REDUCTASE FROM ESCHERICHIA COLI A KEY ENZYME IN THE BIOSYNTHESIS OF GDP-L-FUCOSE ;

Method: X-RAY DIFFRACTION Dmax: 70.3 Å Quality: REASONABLE

SAXS Profile

SAXS profile for 1bws

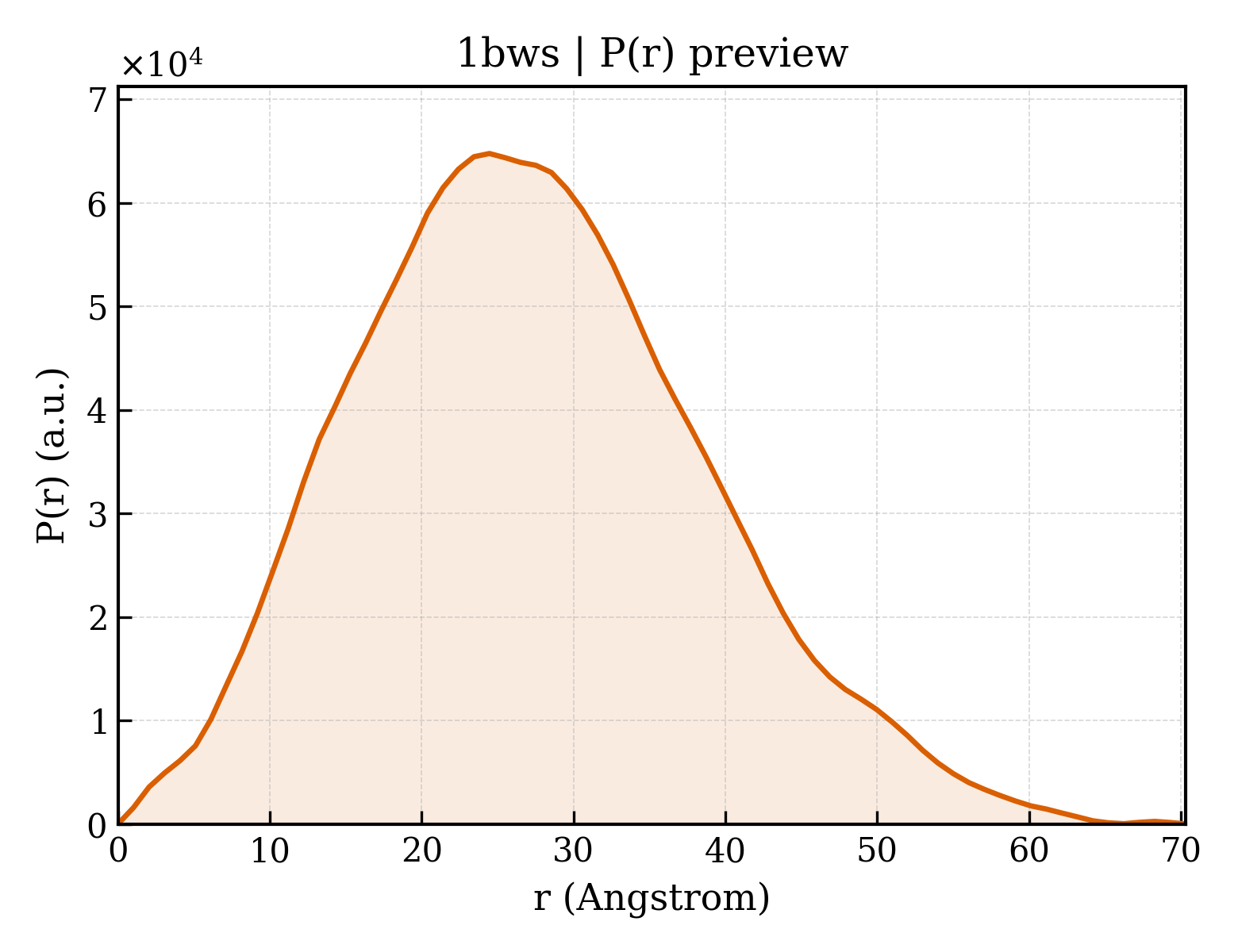

P(r) Distribution

P(r) distribution for 1bws
▼

1. Structure Basics

entry_id1bws
deposition_date1998-09-25
title;CRYSTAL STRUCTURE OF GDP-4-KETO-6-DEOXY-D-MANNOSE EPIMERASE/REDUCTASE FROM ESCHERICHIA COLI A KEY ENZYME IN THE BIOSYNTHESIS OF GDP-L-FUCOSE ;
keywordsEPIMERASE/REDUCTASE, GDP-L-FUCOSE BIOSYNTHESIS, OXIDOREDUCTASE; OXIDOREDUCTASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier20.91 Å
rg_electron19.88 Å
i023329300.00
molecular_weight35928.0 kDa
excluded_volume44548 ų
envelope_volume51896 ų
shell_volume21797 ų
envelope_diameter72.4 Å
shell_rg26.57 Å
envelope_rg20.09 Å
shape_rg19.90 Å
total_rg20.67 Å
total_atoms2527
n_residues314
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax70.3 Å
rg_real20.86 Å
rg_real_error0.53 Å
i0_real2.3330e+07
i0_real_error2.8880e+05
rg_reciprocal20.87 Å
i0_reciprocal23330000.0000
total_estimate0.6702
solution_quality REASONABLE a REASONABLE solution
n_peaks2
r_peak_primary24.5 Å
skewness0.334
kurtosis-0.156
angular_range— – 0.3800 Å−1
current_alpha0.0000
highest_alpha4705000.0000
n_real_points70
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.747; Stabil: 0.990; Sysdev: 0.177; Positv: 1.000; Valcen: 0.999; Smooth: 0.966
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (1)

▶

7. Files & Curves (10)
