SAXSdb — 1bxw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (OUTER MEMBRANE PROTEIN A)

Escherichia coli BL21(DE3)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 21–192	Fragment：TRANSMEMBRANE DOMAIN Mutation：F23L, Q34K, K107Y	C8E (HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5；10 % PEG-8000 10 % MPD 0.05 M POTASSIUM PHOSPHATE PH 5.0	Resolution 2.50 Å R-free 0.235

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BXW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1G90 NMR Solution Structure of Outer Membrane Protein A Transmembrane Domain: 10 conformers Deposited 2000-11-21	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–197（176 aa） Fragment：TRANSMEMBRANE DOMAIN, RESIDUES 1-176	Mutation：W15F, W57F, W102F, W103F.	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.3；323 K；Ionic strength (raw mmCIF value) 0.050；Pressure ambient NMR sample composition 1mM OmpA(0-176) U-15N,13C,2H; 600 mM D38-DPC; 10 mM phosphate buffer; pH 6.3; 50 mM NaCl \| 95% H2O/5% D2O	Resolution not provided
2GE4 High-resolution solution structure of outer membrane protein A transmembrane domain Deposited 2006-03-17	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–197（176 aa） Fragment：transmembrane domain	Mutation：W15F, W57F, W102F, W143F	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.3；223 K；Ionic strength (raw mmCIF value) 50mM NaCl；Pressure ambient NMR sample composition 1mM OmpA U-2H,13C,15N; 500mM DPC; 10mM phosphate buffer; pH 6.3; 50mM NaCl \| 90% H2O/10% D2O	Resolution not provided
2JMM NMR solution structure of a minimal transmembrane beta-barrel platform protein Deposited 2006-11-20	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 43–197（155 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；303 K；Ionic strength (raw mmCIF value) 20；Pressure ambient NMR sample composition 1 mM [U-100% 13C; U-100% 15N; 80% 2H] BBP+EF, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
3NB3 The host outer membrane proteins OmpA and OmpC are packed at specific sites in the Shigella phage Sf6 virion as structural components Deposited 2010-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 240 PDB declaration: 240-MERIC	Chain A 1–346（346 aa） Fragment：outer membrane protein A Chain B 1–346（346 aa） Fragment：outer membrane protein A Chain C 1–346（346 aa） Fragment：outer membrane protein A	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 10 mM Tris-HCl, pH 7.4, 10 mM MgCl2；pH 7.4；10 mM Tris-HCl, pH 7.4, 10 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE；Vitrification was carried out with a standard cryoEM method. The sample of 4 microlitres was applied to a holey EM grid, blotted for 3-4 seconds with a Whatman #2 filter paper, and plunged into ethane slush incubated in liquid nitrogen. The grid was stored in liquid nitrogen.	Resolution 19.00 Å
3NB3 The host outer membrane proteins OmpA and OmpC are packed at specific sites in the Shigella phage Sf6 virion as structural components Deposited 2010-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–346（346 aa） Fragment：outer membrane protein A Chain B 1–346（346 aa） Fragment：outer membrane protein A Chain C 1–346（346 aa） Fragment：outer membrane protein A	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 10 mM Tris-HCl, pH 7.4, 10 mM MgCl2；pH 7.4；10 mM Tris-HCl, pH 7.4, 10 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE；Vitrification was carried out with a standard cryoEM method. The sample of 4 microlitres was applied to a holey EM grid, blotted for 3-4 seconds with a Whatman #2 filter paper, and plunged into ethane slush incubated in liquid nitrogen. The grid was stored in liquid nitrogen.	Resolution 19.00 Å
3NB3 The host outer membrane proteins OmpA and OmpC are packed at specific sites in the Shigella phage Sf6 virion as structural components Deposited 2010-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain A 1–346（346 aa） Fragment：outer membrane protein A Chain B 1–346（346 aa） Fragment：outer membrane protein A Chain C 1–346（346 aa） Fragment：outer membrane protein A	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 10 mM Tris-HCl, pH 7.4, 10 mM MgCl2；pH 7.4；10 mM Tris-HCl, pH 7.4, 10 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE；Vitrification was carried out with a standard cryoEM method. The sample of 4 microlitres was applied to a holey EM grid, blotted for 3-4 seconds with a Whatman #2 filter paper, and plunged into ethane slush incubated in liquid nitrogen. The grid was stored in liquid nitrogen.	Resolution 19.00 Å
3NB3 The host outer membrane proteins OmpA and OmpC are packed at specific sites in the Shigella phage Sf6 virion as structural components Deposited 2010-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain A 1–346（346 aa） Fragment：outer membrane protein A Chain B 1–346（346 aa） Fragment：outer membrane protein A Chain C 1–346（346 aa） Fragment：outer membrane protein A	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 10 mM Tris-HCl, pH 7.4, 10 mM MgCl2；pH 7.4；10 mM Tris-HCl, pH 7.4, 10 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE；Vitrification was carried out with a standard cryoEM method. The sample of 4 microlitres was applied to a holey EM grid, blotted for 3-4 seconds with a Whatman #2 filter paper, and plunged into ethane slush incubated in liquid nitrogen. The grid was stored in liquid nitrogen.	Resolution 19.00 Å
3NB3 The host outer membrane proteins OmpA and OmpC are packed at specific sites in the Shigella phage Sf6 virion as structural components Deposited 2010-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–346（346 aa） Fragment：outer membrane protein A Chain B 1–346（346 aa） Fragment：outer membrane protein A Chain C 1–346（346 aa） Fragment：outer membrane protein A	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 10 mM Tris-HCl, pH 7.4, 10 mM MgCl2；pH 7.4；10 mM Tris-HCl, pH 7.4, 10 mM MgCl2 cryo-EM vitrification conditions Cryogen ETHANE；Vitrification was carried out with a standard cryoEM method. The sample of 4 microlitres was applied to a holey EM grid, blotted for 3-4 seconds with a Whatman #2 filter paper, and plunged into ethane slush incubated in liquid nitrogen. The grid was stored in liquid nitrogen.	Resolution 19.00 Å
5M2Q Structure of cobinamide-bound BtuF mutant W66F, the periplasmic vitamin B12 binding protein in E.coli Deposited 2016-10-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–22（22 aa）	Mutation：W66F	CBY COB(II)INAMIDE × 1 CYN CYANIDE ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；PEG3350 HEPES pH 7 Tryptone	Resolution 1.70 Å R-free 0.249
5M2Q Structure of cobinamide-bound BtuF mutant W66F, the periplasmic vitamin B12 binding protein in E.coli Deposited 2016-10-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–22（22 aa）	Mutation：W66F	CBY COB(II)INAMIDE × 1 CYN CYANIDE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；PEG3350 HEPES pH 7 Tryptone	Resolution 1.70 Å R-free 0.249
6LYR Structure of the BAM complex Deposited 2020-02-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain P 180–188（9 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；27-30% PEG 400, 100mM NaCl	Resolution 3.28 Å R-free 0.280
9FZC Structure of OmpA-short in complex with nanobody Nb01 Deposited 2024-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 22–191（170 aa）	Not recorded	OCT N-OCTANE × 6 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1 M sodium acetate pH 5.5, 0.2 M calcium acetate, 25 % PEG MME 2K	Resolution 2.27 Å R-free 0.234
9FZC Structure of OmpA-short in complex with nanobody Nb01 Deposited 2024-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 22–191（170 aa）	Not recorded	OCT N-OCTANE × 11 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1 M sodium acetate pH 5.5, 0.2 M calcium acetate, 25 % PEG MME 2K	Resolution 2.27 Å R-free 0.234

7 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	OMPA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–172； UniProt 21–192

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bxw
Deposition date deposition_date	1998-10-03
Structure title title	OUTER MEMBRANE PROTEIN A (OMPA) TRANSMEMBRANE DOMAIN
Keywords keywords	OUTER MEMBRANE, TRANSMEMBRANE PROTEIN, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

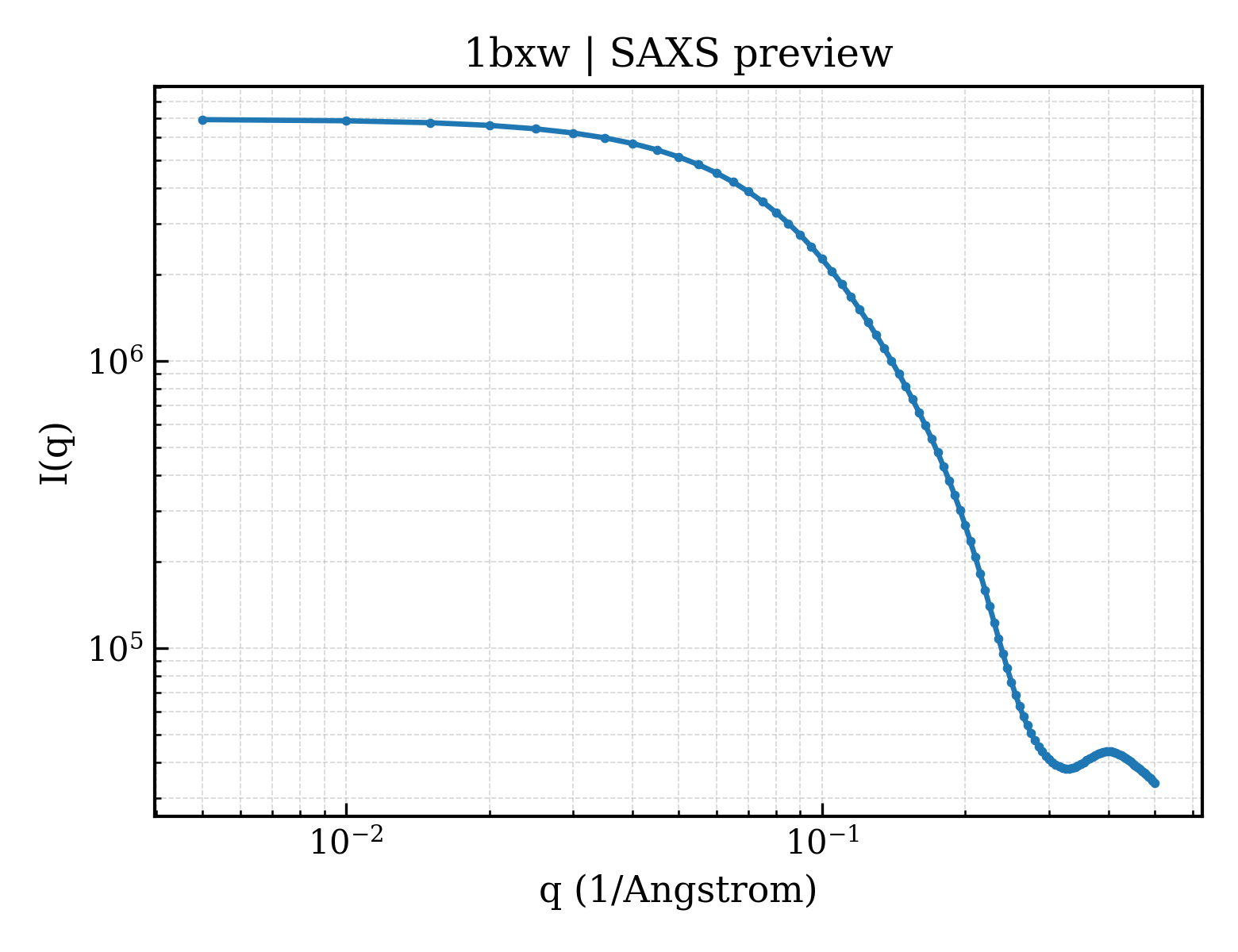

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.03 Å
Radius of gyration Rg (electron density) rg_electron	18.63 Å
Forward intensity I(0) i0	6942760.00
Molecular weight molecular_weight	19112.0 kDa
Excluded volume excluded_volume	23817 Å³
Envelope volume envelope_volume	29870 Å³
Hydration-shell volume shell_volume	14423 Å³
Envelope diameter envelope_diameter	69.1 Å
Shell Rg shell_rg	23.64 Å
Envelope Rg envelope_rg	19.27 Å
Shape Rg shape_rg	18.61 Å
Total Rg total_rg	19.54 Å
Total atoms total_atoms	1351
Residues n_residues	172
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

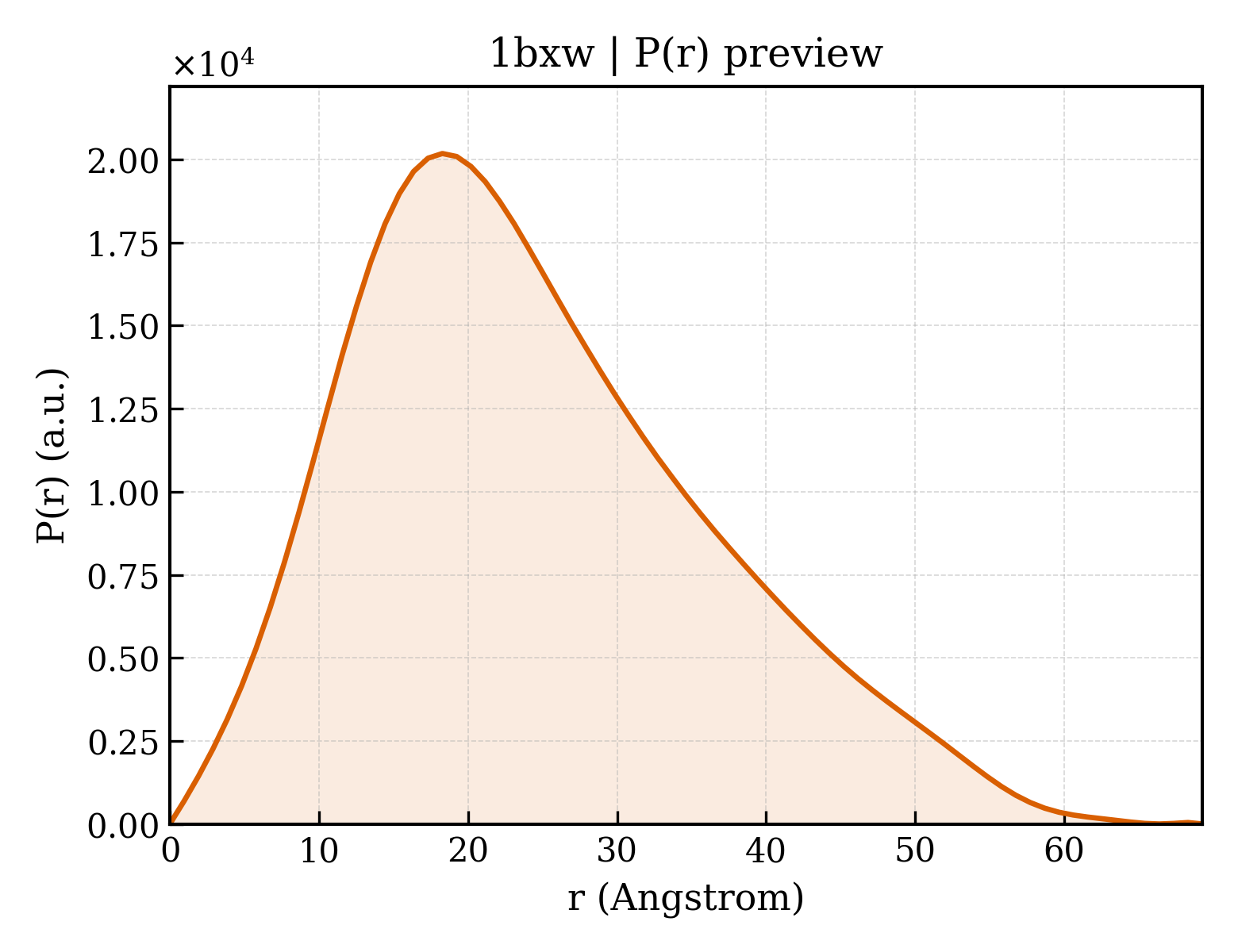

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	69.3 Å
Rg (real space) rg_real	19.20 Å
Rg uncertainty (real space) rg_real_error	0.57 Å
I(0) (real space) i0_real	6.9430e+06
I(0) uncertainty (real space) i0_real_error	9.0530e+04
Rg (reciprocal space) rg_reciprocal	19.17 Å
I(0) (reciprocal space) i0_reciprocal	6943000.0000
Solution quality estimate total_estimate	0.7986
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.3 Å
Skewness Skewness skewness	0.561
Kurtosis Kurtosis kurtosis	-0.190
Angular range angular_range	— – 0.4200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1781000.0000
Real-space data points n_real_points	73
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.596; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.614; Smooth: 0.974

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PROTEIN (OUTER MEMBRANE PROTEIN A)
Molecular weight formula_weight	18892.9 kDa
Mutation mutation	F23L, Q34K, K107Y
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1390

MAPKDNTWYTGAKLGWSQYHDTGLINNNGPTHENKLGAGAFGGYQVNPYVGFEMGYDWLGRMPYKGSVENGAYKAQGVQLTAKLGYPITDDLDIYTRLGGMVWRADTYSNVYGKNHDTGVSPVFAGGVEYAITPEIATRLEYQWTNNIGDAHTIGTRPDNGMLSLGVSYRFG

来源 Source

来源生物 organism	Escherichia coli BL21(DE3)
NCBI Class编号 ncbi_taxonomy_id	469008
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	(HYDROXYETHYLOXY)TRI(ETHYLOXY)OCTANE
Molecular weight formula_weight	306.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1bxwa_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.4 — Transmembrane beta-barrels
Superfamily Superfamily superfamily	f.4.1 — OMPA-like
Family Family family	f.4.1.1 — Outer membrane protein

CATH v4.4 (1 domains)

Domain ID domain_id	1bxwA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	160 — Porin
Homologous superfamily homologous superfamily	20 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	69.180 Å
Unit-cell length b length_b	77.950 Å
Unit-cell length c length_c	50.930 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.52 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.1890
R_free r_free	0.2350

fit	/app/data/saxs_computation/bx/1bxw/1bxw.fit
pddf	/app/data/pr_computation/bx/1bxw/1bxw.pr.out
profile	/app/data/saxs_computation/bx/1bxw/1bxw.dat
