1byf
STRUCTURE OF TC14; A C-TYPE LECTIN FROM THE TUNICATE POLYANDROCARPA MISAKIENSIS

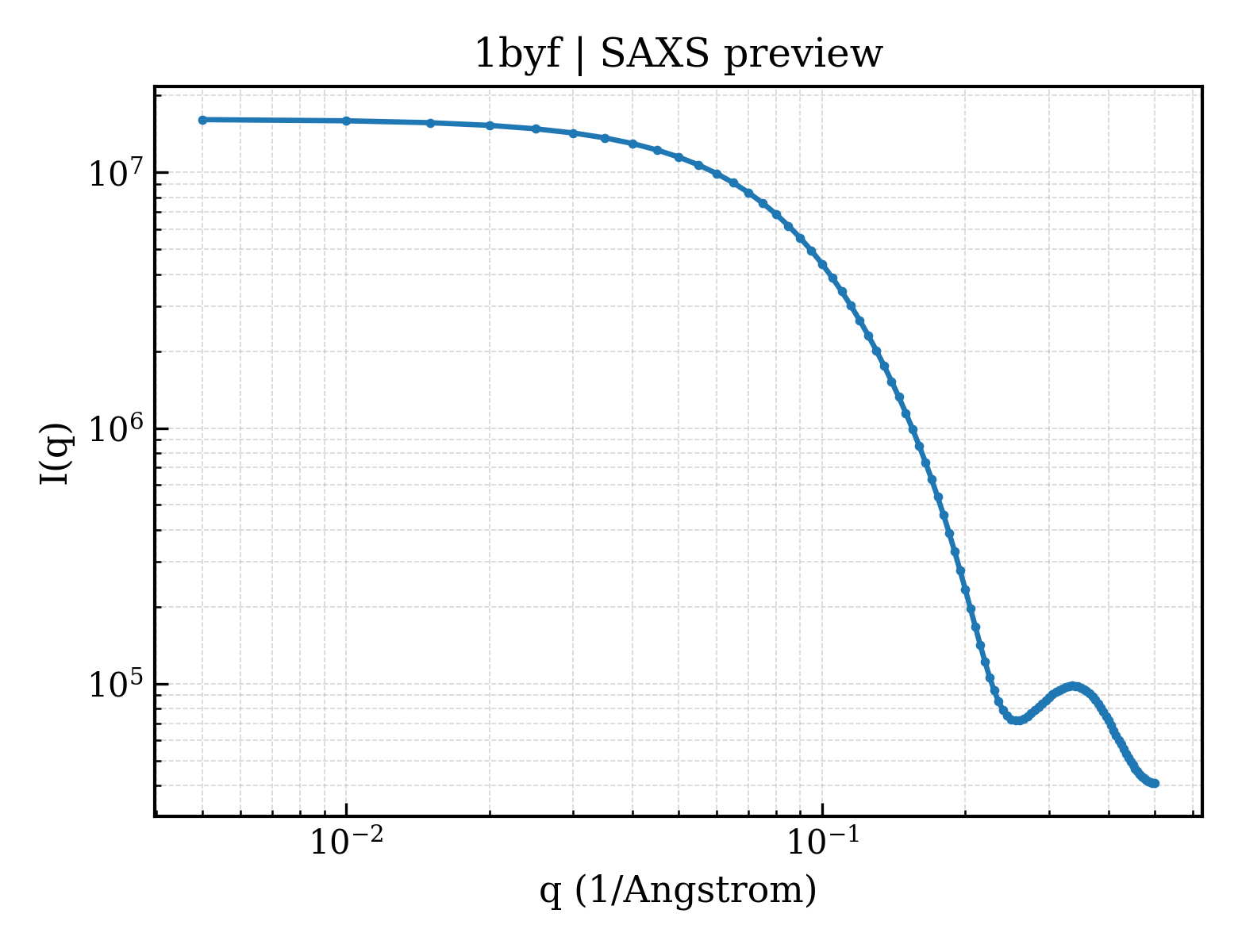

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1byf |
| deposition_date | 1998-10-14 |
| title | STRUCTURE OF TC14; A C-TYPE LECTIN FROM THE TUNICATE POLYANDROCARPA MISAKIENSIS |
| keywords | C-TYPE LECTIN, GALACTOSE-SPECIFIC, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.24 Å |
| rg_electron | 19.38 Å |
| i0 | 16151200.00 |
| molecular_weight | 28499.0 kDa |
| excluded_volume | 34705 ų |
| envelope_volume | 38835 ų |
| shell_volume | 17628 ų |
| envelope_diameter | 72.2 Å |
| shell_rg | 24.90 Å |
| envelope_rg | 19.69 Å |
| shape_rg | 19.42 Å |
| total_rg | 20.01 Å |
| total_atoms | 1967 |
| n_residues | 246 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

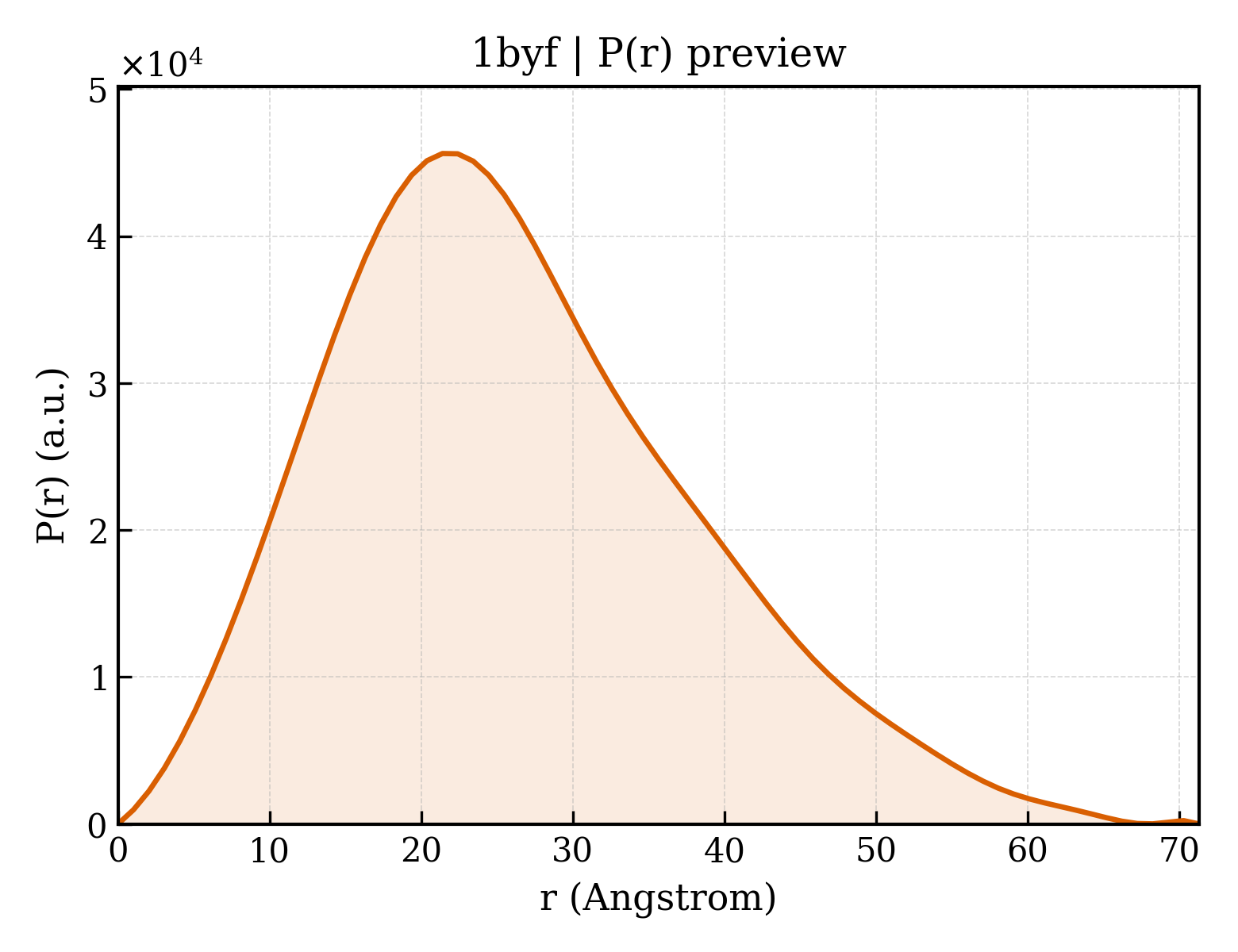

3. P(r) Analysis (GNOM)
| dmax | 71.3 Å |
| rg_real | 20.32 Å |
| rg_real_error | 0.56 Å |
| i0_real | 1.6150e+07 |
| i0_real_error | 2.1180e+05 |
| rg_reciprocal | 20.31 Å |
| i0_reciprocal | 16150000.0000 |
| total_estimate | 0.6667 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 21.4 Å |
| skewness | 0.525 |
| kurtosis | -0.062 |
| angular_range | — – 0.3950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3328000.0000 |
| n_real_points | 71 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.676; Stabil: 1.000; Sysdev: 0.260; Positv: 1.000; Valcen: 0.934; Smooth: 0.920 |
