1byi
STRUCTURE OF APO-DETHIOBIOTIN SYNTHASE AT 0.97 ANGSTROMS RESOLUTION
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1byi |
| deposition_date | 1998-10-15 |
| title | STRUCTURE OF APO-DETHIOBIOTIN SYNTHASE AT 0.97 ANGSTROMS RESOLUTION |
| keywords | BIOTIN SYNTHESIS, CYCLO-LIGASE, LIGASE; LIGASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.15 Å |
| rg_electron | 16.95 Å |
| i0 | 10192700.00 |
| molecular_weight | 24004.0 kDa |
| excluded_volume | 30219 ų |
| envelope_volume | 34501 ų |
| shell_volume | 16998 ų |
| envelope_diameter | 57.9 Å |
| shell_rg | 23.12 Å |
| envelope_rg | 17.18 Å |
| shape_rg | 16.93 Å |
| total_rg | 18.01 Å |
| total_atoms | 1692 |
| n_residues | 224 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

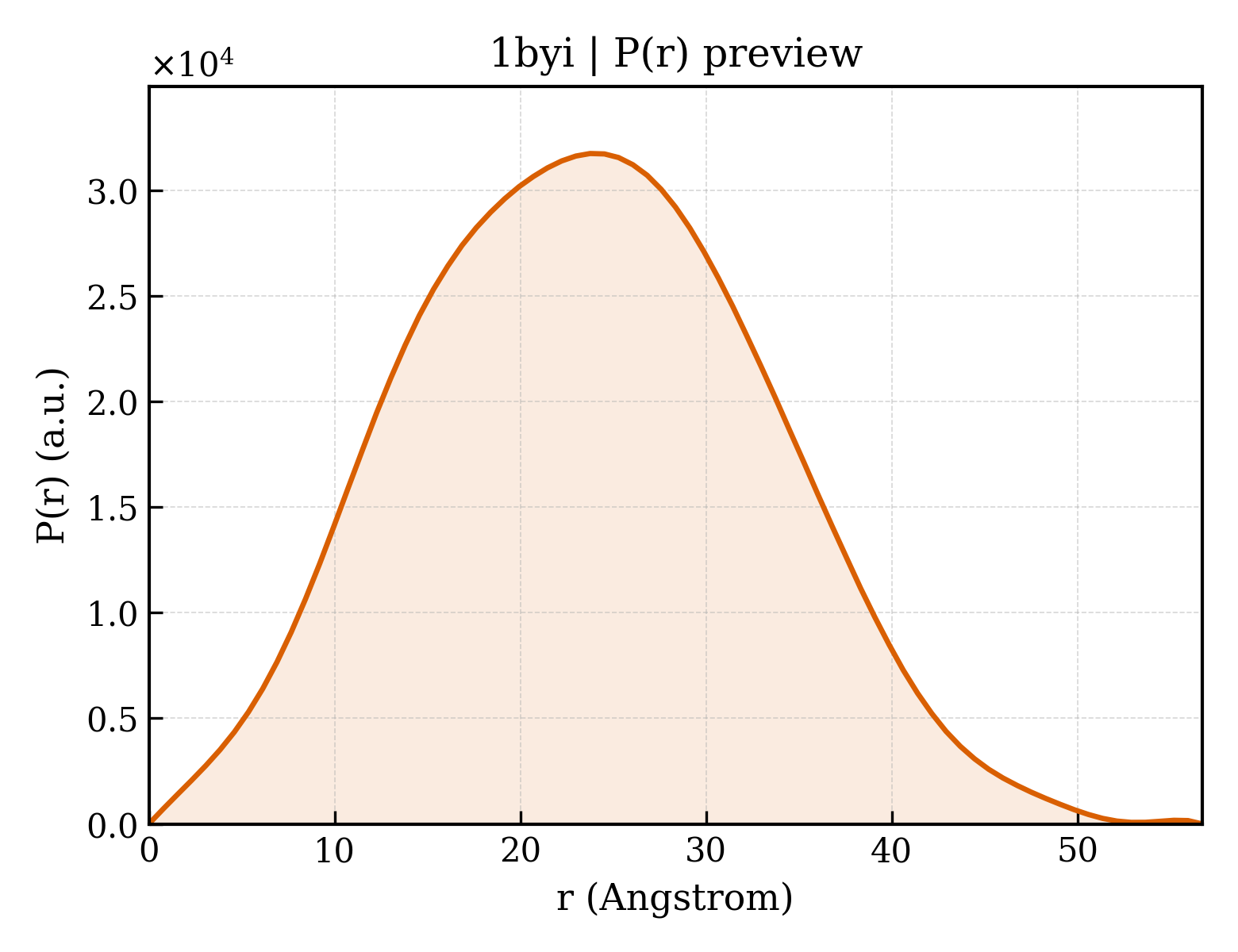

3. P(r) Analysis (GNOM)
| dmax | 56.7 Å |
| rg_real | 18.01 Å |
| rg_real_error | 0.25 Å |
| i0_real | 1.0190e+07 |
| i0_real_error | 1.0860e+05 |
| rg_reciprocal | 18.03 Å |
| i0_reciprocal | 10190000.0000 |
| total_estimate | 0.8969 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.8 Å |
| skewness | 0.128 |
| kurtosis | -0.415 |
| angular_range | — – 0.4400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2914000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.894; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.987 |
