1dag
;DETHIOBIOTIN SYNTHETASE COMPLEXED WITH 7-(CARBOXYAMINO)-8-AMINO-NONANOIC ACID AND 5'-ADENOSYL-METHYLENE-TRIPHOSPHATE ;
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dag |
| deposition_date | 1995-05-08 |
| title | ;DETHIOBIOTIN SYNTHETASE COMPLEXED WITH 7-(CARBOXYAMINO)-8-AMINO-NONANOIC ACID AND 5'-ADENOSYL-METHYLENE-TRIPHOSPHATE ; |
| keywords | LIGASE, BIOTIN BIOSYNTHESIS, MAGNESIUM, ATP-BINDING; LIGASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.91 Å |
| rg_electron | 16.84 Å |
| i0 | 11137000.00 |
| molecular_weight | 24742.0 kDa |
| excluded_volume | 30940 ų |
| envelope_volume | 35043 ų |
| shell_volume | 17273 ų |
| envelope_diameter | 58.1 Å |
| shell_rg | 23.20 Å |
| envelope_rg | 17.19 Å |
| shape_rg | 16.84 Å |
| total_rg | 17.85 Å |
| total_atoms | 1739 |
| n_residues | 224 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

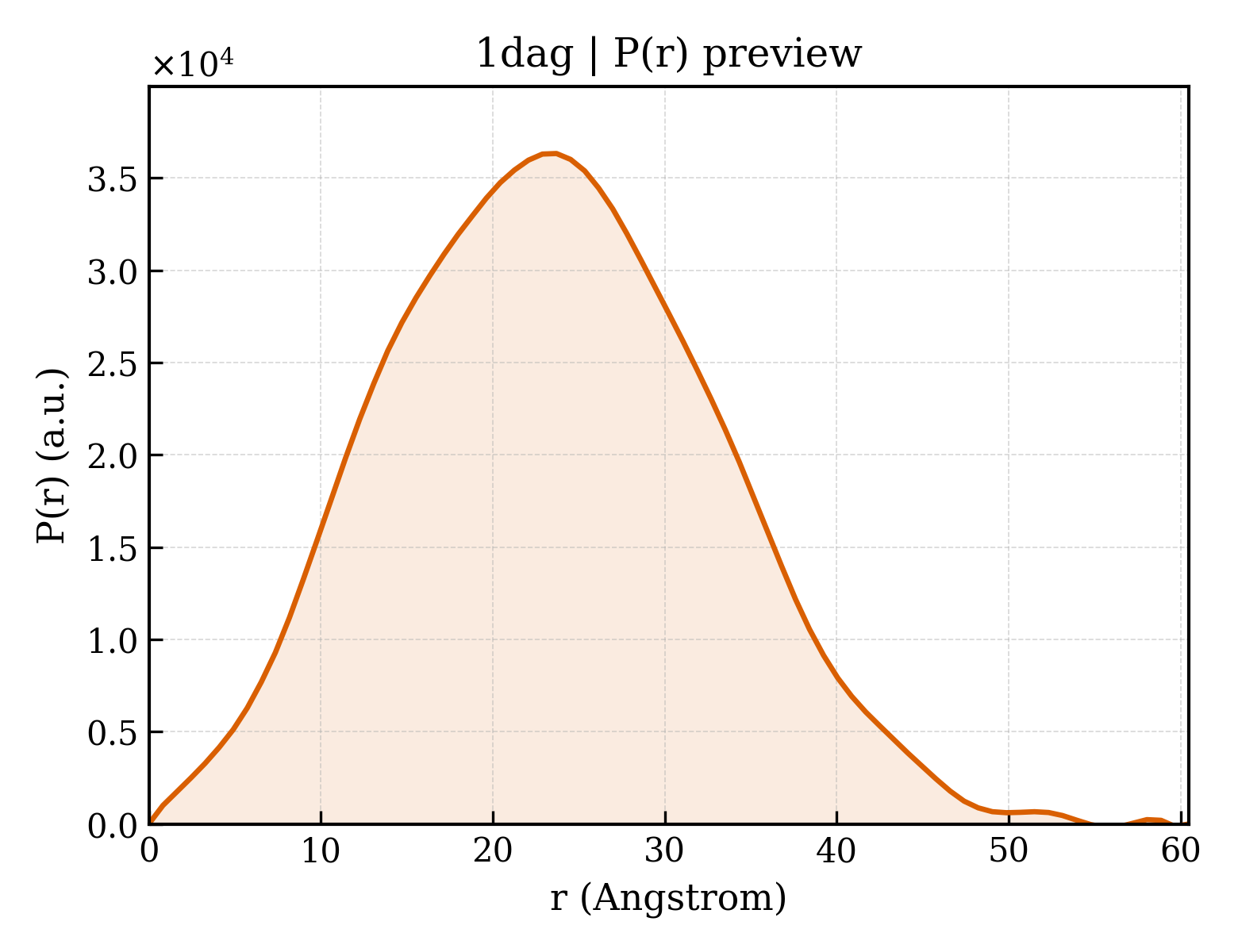

3. P(r) Analysis (GNOM)
| dmax | 60.5 Å |
| rg_real | 17.80 Å |
| rg_real_error | 0.43 Å |
| i0_real | 1.1140e+07 |
| i0_real_error | 1.5060e+05 |
| rg_reciprocal | 17.81 Å |
| i0_reciprocal | 11140000.0000 |
| total_estimate | 0.7874 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 23.7 Å |
| skewness | 0.174 |
| kurtosis | -0.321 |
| angular_range | — – 0.4450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2826000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.747; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
