SAXSdb — 1c4k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (ORNITHINE DECARBOXYLASE)

Lactobacillus sp. 30A

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PYRIDOXAL-5'-PHOSPHATE × 2 GUANOSINE-5'-TRIPHOSPHATE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	PYRIDOXAL-5'-PHOSPHATE × 2 GUANOSINE-5'-TRIPHOSPHATE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DCOR_LACS3
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–730； UniProt 1–730

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1c4k
Deposition date deposition_date	1999-08-26
Structure title title	ORNITHINE DECARBOXYLASE MUTANT (GLY121TYR)
Keywords keywords	DECARBOXYLASE, ORNITHINE, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1c4k__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1c4k__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

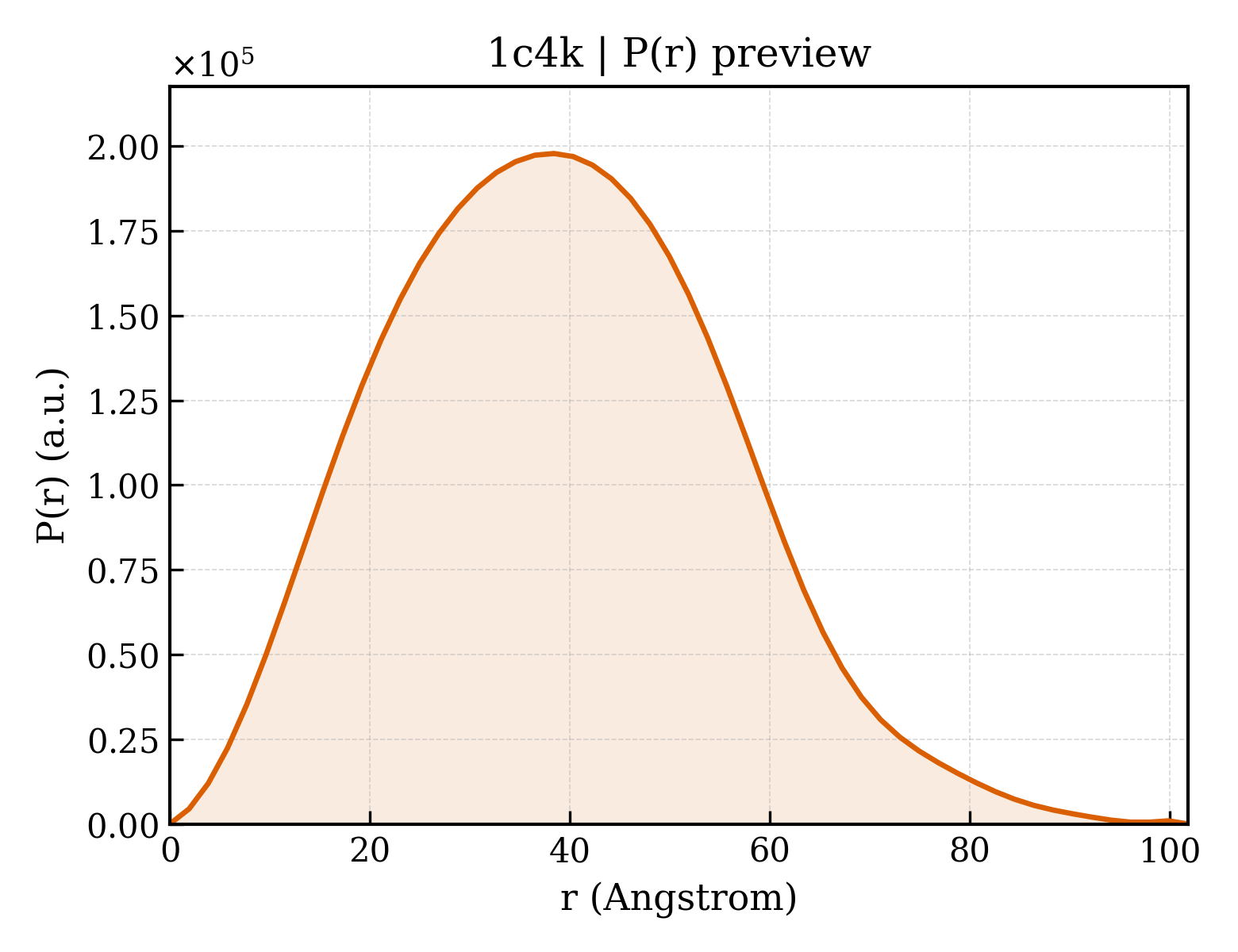

1c4k__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.99 Å
Rg (electron density)	41.54 Å
Total Rg	41.77 Å
Atom count	11744
Residues	1456
Excluded volume	207460 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1c4k__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1c4k__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PROTEIN (ORNITHINE DECARBOXYLASE)
Molecular weight formula_weight	82755.8 kDa
EC 编号 ec_number	4.1.1.17
Mutation mutation	G121Y
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6122

SSSLKIASTQEARQYFDTDRVVVDAVGSDFTDVGAVIAMDYETDVIDAADATKFGIPVFAVTKDAQAISADELKKIFHIIDLENKFDATVNAREIETAVNNYEDSILPPFFKSLKEYVSRYLIQFDCPGHQGGQYYRKHPAGREFYDFFGETVFRADLCNADVALGDLLIHEGPAVAAEKHAARVYNADKTYFVLGGSSNANNTVTSALVSNGDLVLFDRNNHKSVYNSALAMAGGRPVYLQTNRNPYGFIGGIYDSDFDEKKIRELAAKVDPERAKWKRPFRLAVIQLGTYDGTIYNAHEVVKRIGHLCDYIEFDSAWVGYEQFIPMMRNSSPLLIDDLGPEDPGIIVVQSVHKQQAGFSQTSQIHKKDSHIKGQLRYCDHKHFNNSFNLFMSTSPFYPMYAALDVNAAMQEGEAGRKLWHDLLITTIEARKKLIKAGSMFRPFVPPVVNGKKWEDGDTEDMANNIDYWRFEKGAKWHAYEGYGDNQYYVDPNKFMLTTPGINPETGDYEDFGVPATIVANYLRDHGIIPEKSDLNSILFLMTPAETPAKMNNLITQLLQLQRLIEEDAPLKQVLPSIYAANEERYNGYTIRELCQELHDFYKNNNTFTYQKRLFLREFFPEQGMLPYEARQEFIRNHNKLVPLNKIEGEIALEGALPYPPGVFCVAPGEKWSETAVKYFTILQDGINNFPGFAPEIQGVYFKQEGDKVVAYGEVYDAEVAKNDDRYNN

Source Source

Source organism organism	Lactobacillus sp. 30A
NCBI taxonomy ID ncbi_taxonomy_id	1593
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PYRIDOXAL-5'-PHOSPHATE
Molecular weight formula_weight	247.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	250

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1c4ka1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.1 — CheY-like
Family Family family	c.23.1.4 — Ornithine decarboxylase N-terminal 'wing' domain

Domain ID domain_id	d1c4ka2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.5 — Ornithine decarboxylase major domain

Domain ID domain_id	d1c4ka3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.125 — Ornithine decarboxylase C-terminal domain
Superfamily Superfamily superfamily	d.125.1 — Ornithine decarboxylase C-terminal domain
Family Family family	d.125.1.1 — Ornithine decarboxylase C-terminal domain

CATH v4.4 (4 domains)

Domain ID domain_id	1c4kA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	220 —

Domain ID domain_id	1c4kA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1c4kA03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1c4kA04
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	100 — Ornithine Decarboxylase; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — Orn/Lys/Arg decarboxylase, C-terminal domain

▶

Unit-cell length a length_a	111.800 Å
Unit-cell length b length_b	111.800 Å
Unit-cell length c length_c	135.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	7.000 Å
R factor r_factor	0.2120
R_work r_work	0.2120
R_free r_free	0.2810
