1c78
STAPHYLOKINASE (SAK) DIMER
SAXS Profile

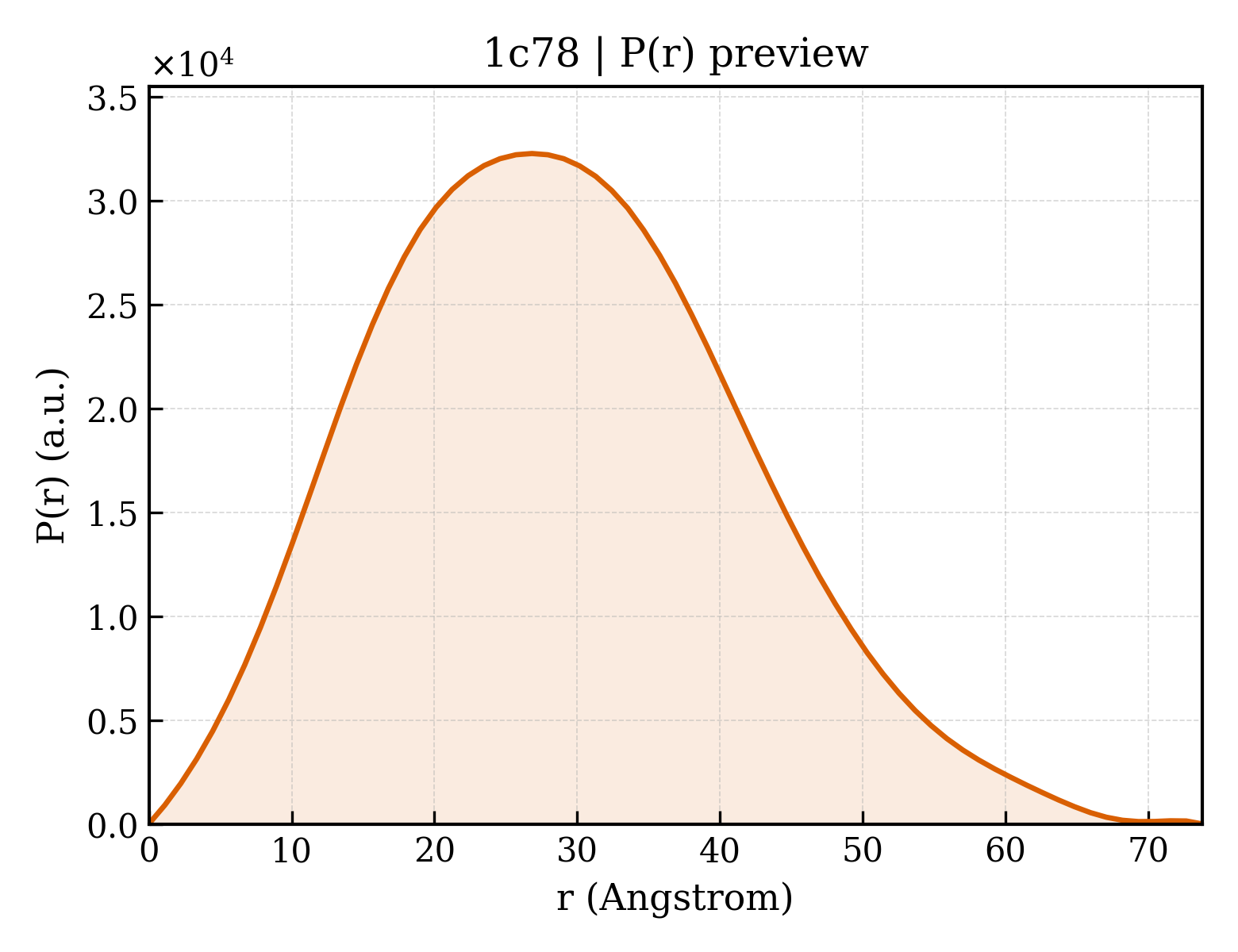

P(r) Distribution
1. Structure Basics
| entry_id | 1c78 |
| deposition_date | 2000-02-01 |
| title | STAPHYLOKINASE (SAK) DIMER |
| keywords | BETA-GRASP FAMILY, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.25 Å |
| rg_electron | 21.19 Å |
| i0 | 13566700.00 |
| molecular_weight | 29421.0 kDa |
| excluded_volume | 37653 ų |
| envelope_volume | 47948 ų |
| shell_volume | 19736 ų |
| envelope_diameter | 78.1 Å |
| shell_rg | 27.07 Å |
| envelope_rg | 21.16 Å |
| shape_rg | 21.15 Å |
| total_rg | 22.24 Å |
| total_atoms | 2084 |
| n_residues | 258 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 73.8 Å |
| rg_real | 22.22 Å |
| rg_real_error | 0.44 Å |
| i0_real | 1.3570e+07 |
| i0_real_error | 1.6400e+05 |
| rg_reciprocal | 22.23 Å |
| i0_reciprocal | 13570000.0000 |
| total_estimate | 0.8952 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 26.8 Å |
| skewness | 0.306 |
| kurtosis | -0.302 |
| angular_range | — – 0.3550 Å−1 |
| current_alpha | 0.0001 |
| highest_alpha | 2634000.0000 |
| n_real_points | 67 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.880; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.998 |
