1c77
STAPHYLOKINASE (SAK) DIMER
SAXS Profile

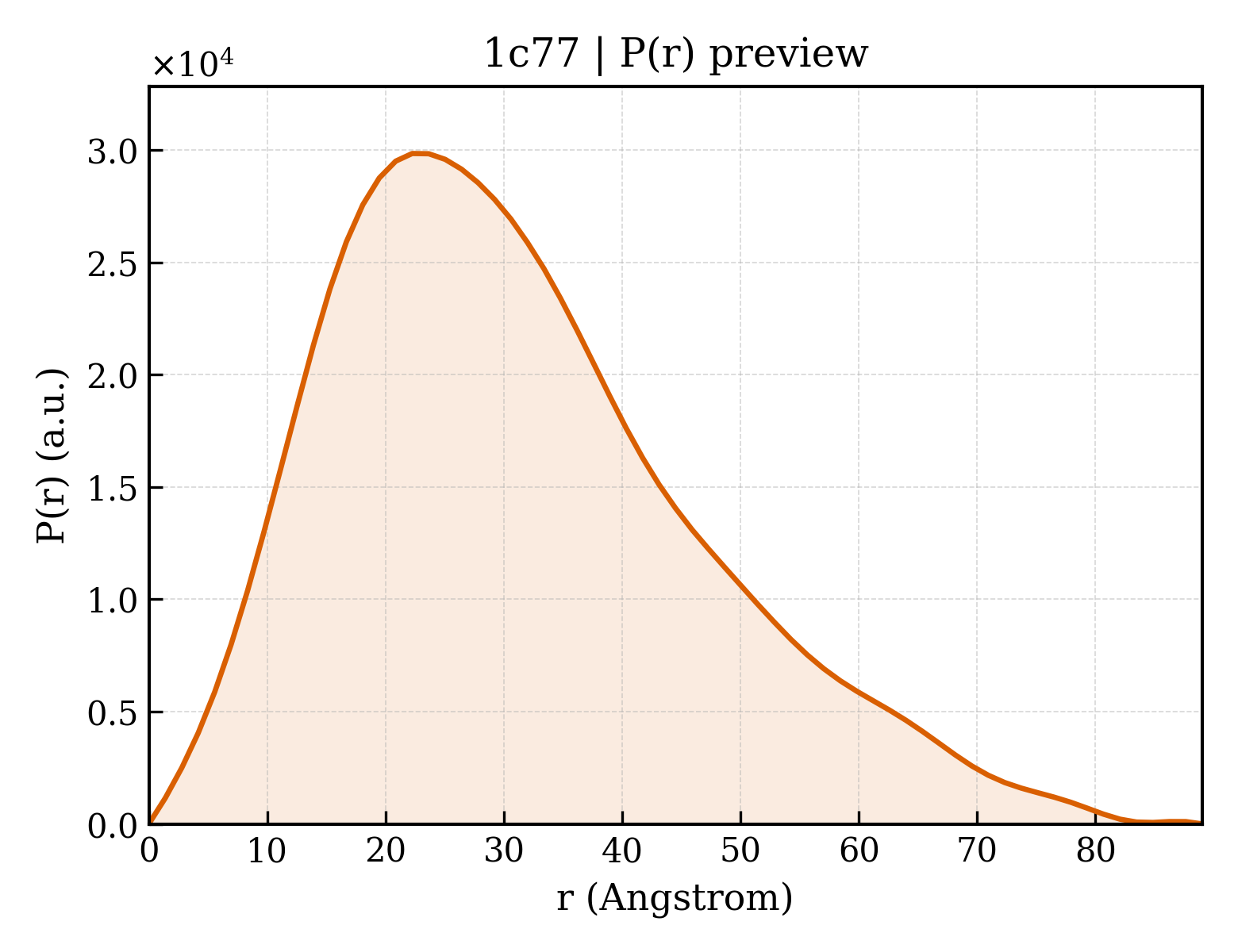

P(r) Distribution
1. Structure Basics
| entry_id | 1c77 |
| deposition_date | 2000-02-01 |
| title | STAPHYLOKINASE (SAK) DIMER |
| keywords | BETA-GRASP FAMILY, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.20 Å |
| rg_electron | 23.82 Å |
| i0 | 13579300.00 |
| molecular_weight | 29421.0 kDa |
| excluded_volume | 37653 ų |
| envelope_volume | 48443 ų |
| shell_volume | 18903 ų |
| envelope_diameter | 91.7 Å |
| shell_rg | 28.17 Å |
| envelope_rg | 24.08 Å |
| shape_rg | 23.80 Å |
| total_rg | 24.56 Å |
| total_atoms | 2084 |
| n_residues | 258 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 89.0 Å |
| rg_real | 24.51 Å |
| rg_real_error | 1.10 Å |
| i0_real | 1.3580e+07 |
| i0_real_error | 2.0480e+05 |
| rg_reciprocal | 24.44 Å |
| i0_reciprocal | 13580000.0000 |
| total_estimate | 0.7941 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.2 Å |
| skewness | 0.654 |
| kurtosis | 0.029 |
| angular_range | — – 0.3300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3537000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.593; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.543; Smooth: 0.995 |
