SAXSdb — 1c7k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ZINC ENDOPROTEASE

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–132	Not recorded	ZN ZINC ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：LIQUID DIFFUSION；pH 7；277 K；acetone, pH 7.0, LIQUID DIFFUSION, temperature 277K	Resolution 1.00 Å R-free 0.178

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1C7K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1KUH ZINC PROTEASE FROM STREPTOMYCES CAESPITOSUS Deposited 1996-02-22	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–132（132 aa）	Not recorded	ZN ZINC ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å R-free 0.225
4HX3 Crystal structure of Streptomyces caespitosus sermetstatin in complex with S. caespitosus snapalysin Deposited 2012-11-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–132（131 aa） Fragment：Mature protease Chain C 2–132（131 aa） Fragment：Mature protease	Not recorded	ZN ZINC ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M magnesium chloride, 15.0% (v/v) ethanol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.70 Å R-free 0.242
4HX3 Crystal structure of Streptomyces caespitosus sermetstatin in complex with S. caespitosus snapalysin Deposited 2012-11-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 2–132（131 aa） Fragment：Mature protease Chain G 2–132（131 aa） Fragment：Mature protease	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M magnesium chloride, 15.0% (v/v) ethanol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.70 Å R-free 0.242
4HX3 Crystal structure of Streptomyces caespitosus sermetstatin in complex with S. caespitosus snapalysin Deposited 2012-11-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain I 2–132（131 aa） Fragment：Mature protease Chain K 2–132（131 aa） Fragment：Mature protease	Not recorded	ZN ZINC ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M magnesium chloride, 15.0% (v/v) ethanol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.70 Å R-free 0.242

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SNPA_STRCS
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–132； UniProt 1–132

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1c7k
Deposition date deposition_date	2000-02-19
Structure title title	CRYSTAL STRUCTURE OF THE ZINC PROTEASE
Keywords keywords	alpha and beta protein, METALLOPROTEINASE, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.88 Å
Radius of gyration Rg (electron density) rg_electron	13.58 Å
Forward intensity I(0) i0	4989640.00
Molecular weight molecular_weight	14477.0 kDa
Excluded volume excluded_volume	17402 Å³
Envelope volume envelope_volume	19346 Å³
Hydration-shell volume shell_volume	12057 Å³
Envelope diameter envelope_diameter	45.6 Å
Shell Rg shell_rg	19.40 Å
Envelope Rg envelope_rg	13.86 Å
Shape Rg shape_rg	13.57 Å
Total Rg total_rg	14.71 Å
Total atoms total_atoms	1017
Residues n_residues	132
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

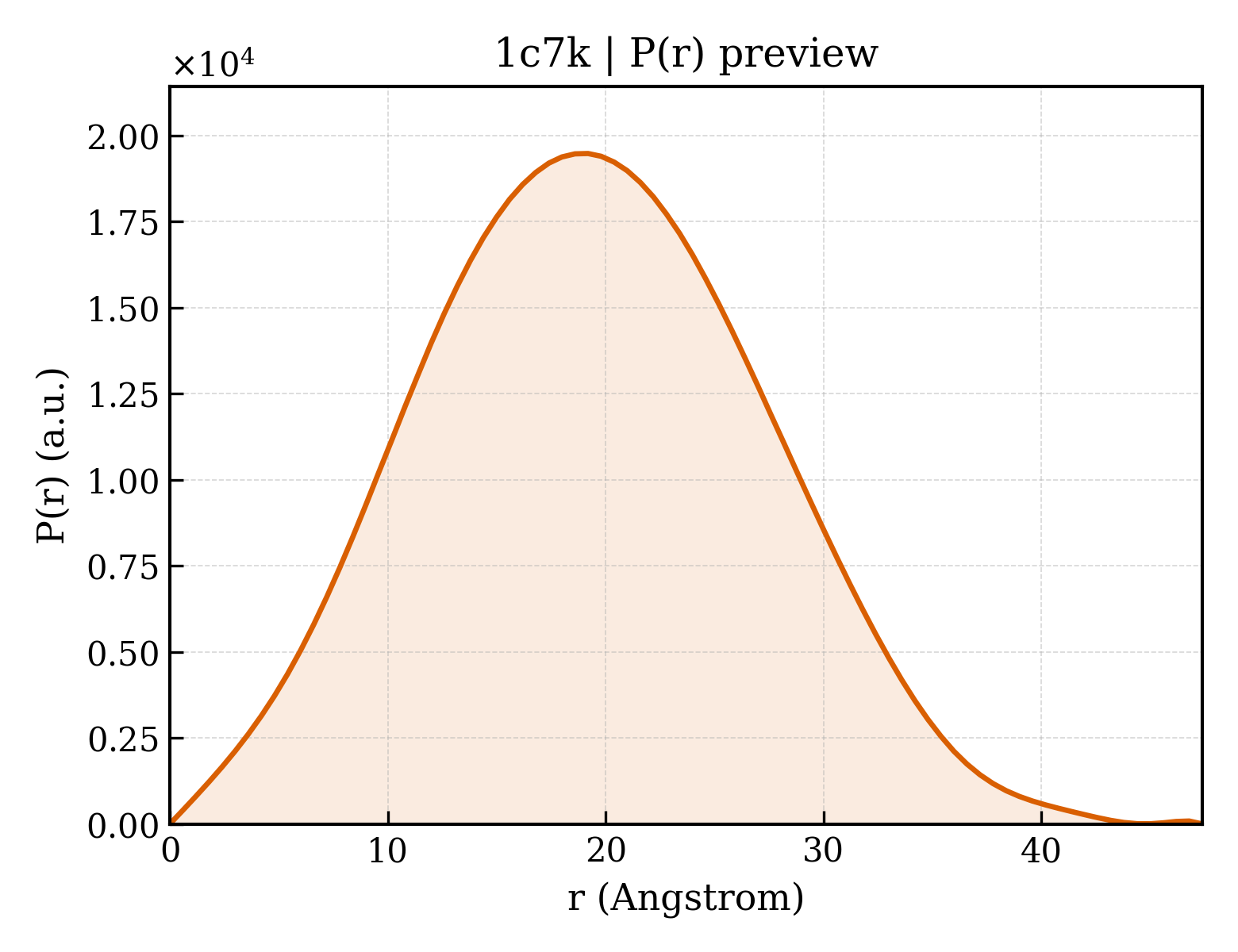

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	47.4 Å
Rg (real space) rg_real	14.77 Å
Rg uncertainty (real space) rg_real_error	0.21 Å
I(0) (real space) i0_real	4.9900e+06
I(0) uncertainty (real space) i0_real_error	5.1360e+04
Rg (reciprocal space) rg_reciprocal	14.78 Å
I(0) (reciprocal space) i0_reciprocal	4990000.0000
Solution quality estimate total_estimate	0.8884
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.2 Å
Skewness Skewness skewness	0.128
Kurtosis Kurtosis kurtosis	-0.370
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	846800.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.862; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.965

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ZINC ENDOPROTEASE
Molecular weight formula_weight	14387.3 kDa
EC 编号 ec_number	3.4.24.-
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1133

TVTVTYDPSNAPSFQQEIANAAQIWNSSVRNVQLRAGGNADFSYYEGNDSRGSYAQTDGHGRGYIFLDYQQNQQYDSTRVTAHETGHVLGLPDHYQGPCSELMSGGGPGPSCTNPYPNAQERSRVNALWANG

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	116

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1c7ka_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.1 — Zinc protease

CATH v4.4 (1 domains)

Domain ID domain_id	1c7kA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	390 — Collagenase (Catalytic Domain)
Homologous superfamily homologous superfamily	10 — Collagenase (Catalytic Domain)

▶

8. Citations (4)

▶

Unit-cell length a length_a	55.103 Å
Unit-cell length b length_b	55.199 Å
Unit-cell length c length_c	37.243 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.000 Å
Low-resolution limit resolution_low	55.000 Å
R factor r_factor	0.1480
R_work r_work	—
R_free r_free	0.1780

fit	/app/data/saxs_computation/c7/1c7k/1c7k.fit
pddf	/app/data/pr_computation/c7/1c7k/1c7k.pr.out
profile	/app/data/saxs_computation/c7/1c7k/1c7k.dat
