1cdq
STRUCTURE OF A SOLUBLE, GLYCOSYLATED FORM OF THE HUMAN COMPLEMENT REGULATORY PROTEIN CD59
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cdq |
| deposition_date | 1994-06-01 |
| title | STRUCTURE OF A SOLUBLE, GLYCOSYLATED FORM OF THE HUMAN COMPLEMENT REGULATORY PROTEIN CD59 |
| keywords | COMPLEMENT REGULATORY PROTEIN; COMPLEMENT REGULATORY PROTEIN |
| method | SOLUTION NMR |
Download Data

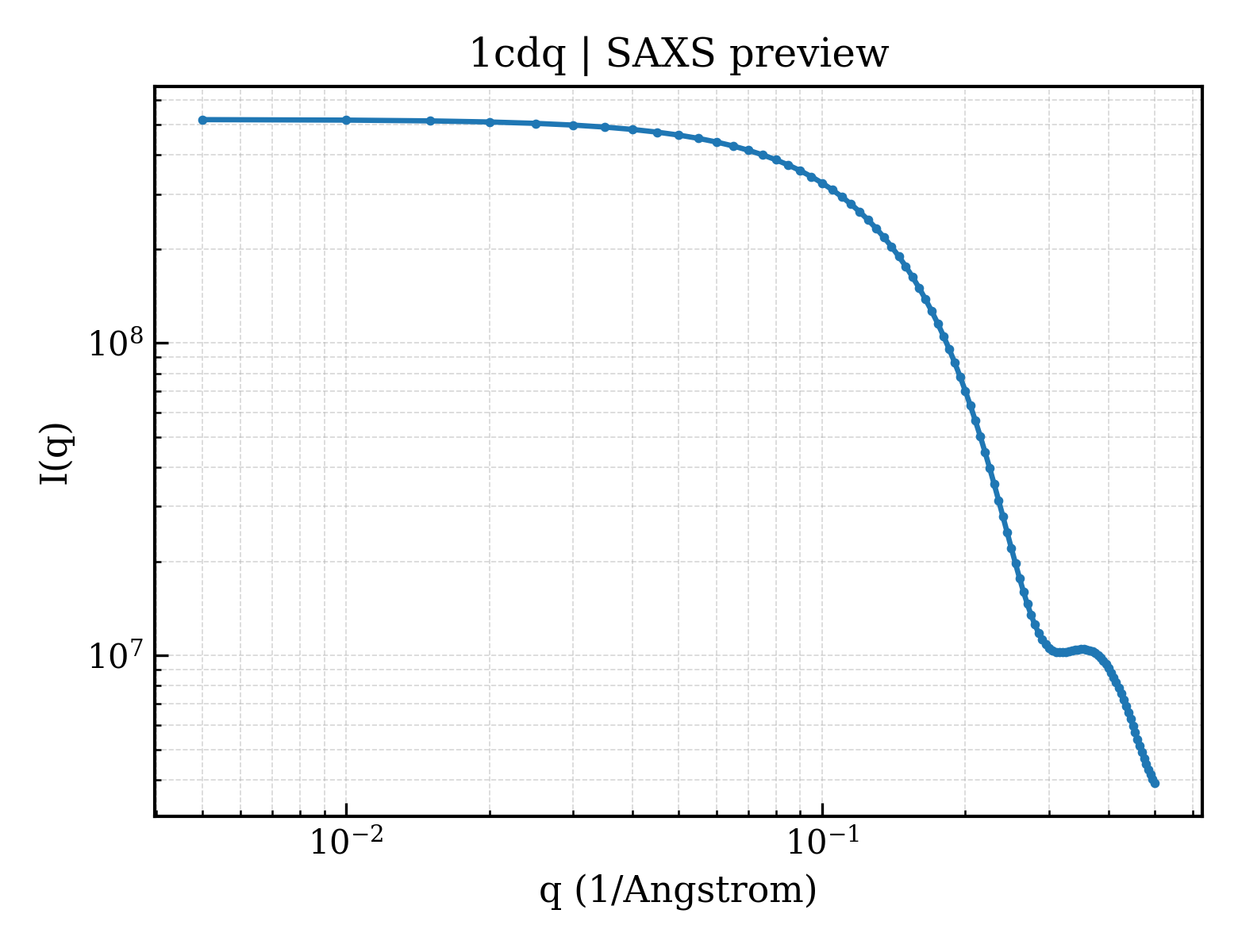

2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.80 Å |
| rg_electron | 11.66 Å |
| i0 | 519931000.00 |
| molecular_weight | 179180.0 kDa |
| excluded_volume | 218100 ų |
| envelope_volume | 19172 ų |
| shell_volume | 12081 ų |
| envelope_diameter | 41.4 Å |
| shell_rg | 19.27 Å |
| envelope_rg | 13.55 Å |
| shape_rg | 11.67 Å |
| total_rg | 11.78 Å |
| total_atoms | 23900 |
| n_residues | 1540 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

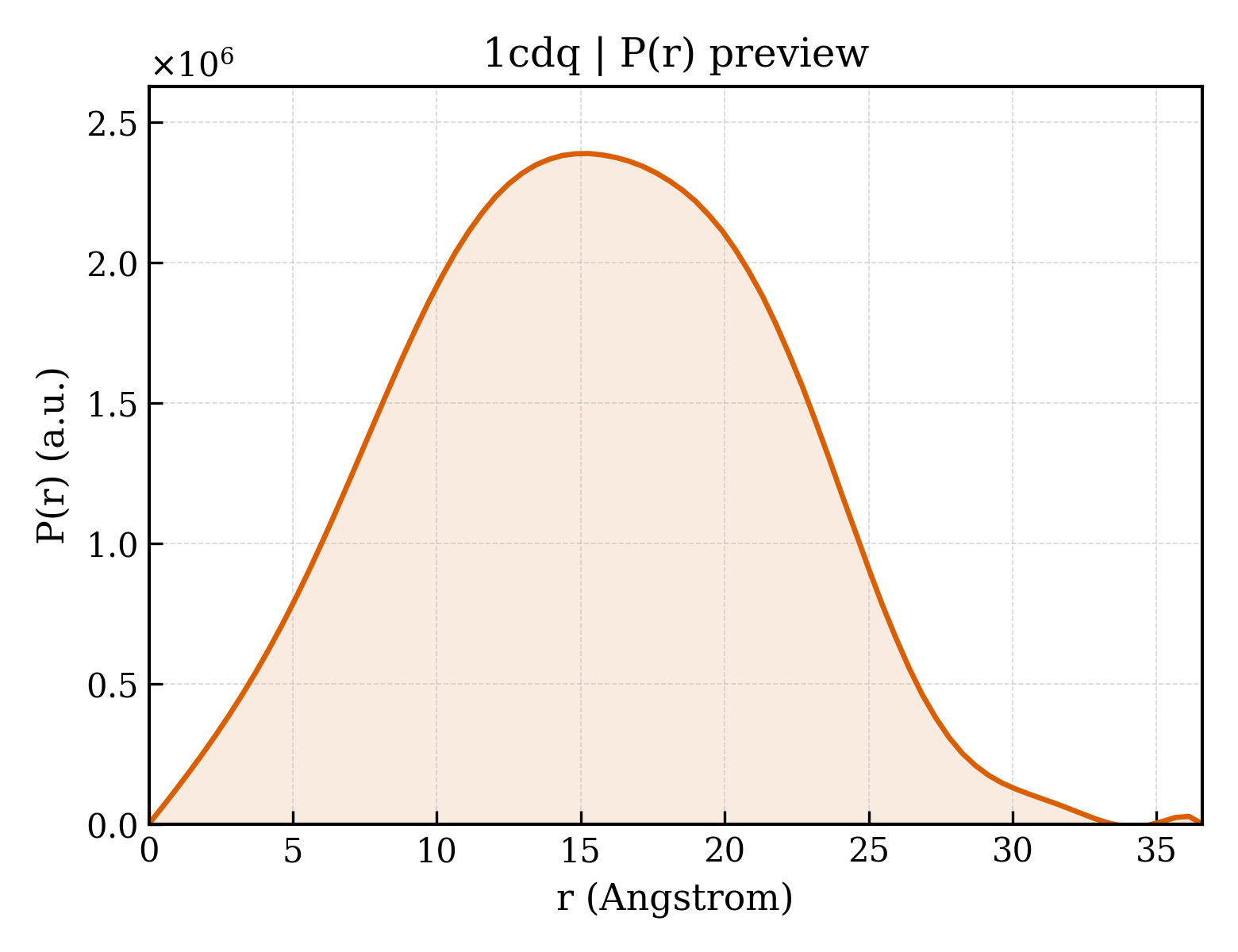

3. P(r) Analysis (GNOM)
| dmax | 36.6 Å |
| rg_real | 11.71 Å |
| rg_real_error | 0.23 Å |
| i0_real | 5.1990e+08 |
| i0_real_error | 5.2560e+06 |
| rg_reciprocal | 11.72 Å |
| i0_reciprocal | 519900000.0000 |
| total_estimate | 0.8263 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.3 Å |
| skewness | 0.031 |
| kurtosis | -0.520 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 142200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.914; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000 |
