1ce4
CONFORMATIONAL MODEL FOR THE CONSENSUS V3 LOOP OF THE ENVELOPE PROTEIN GP120 OF HIV-1

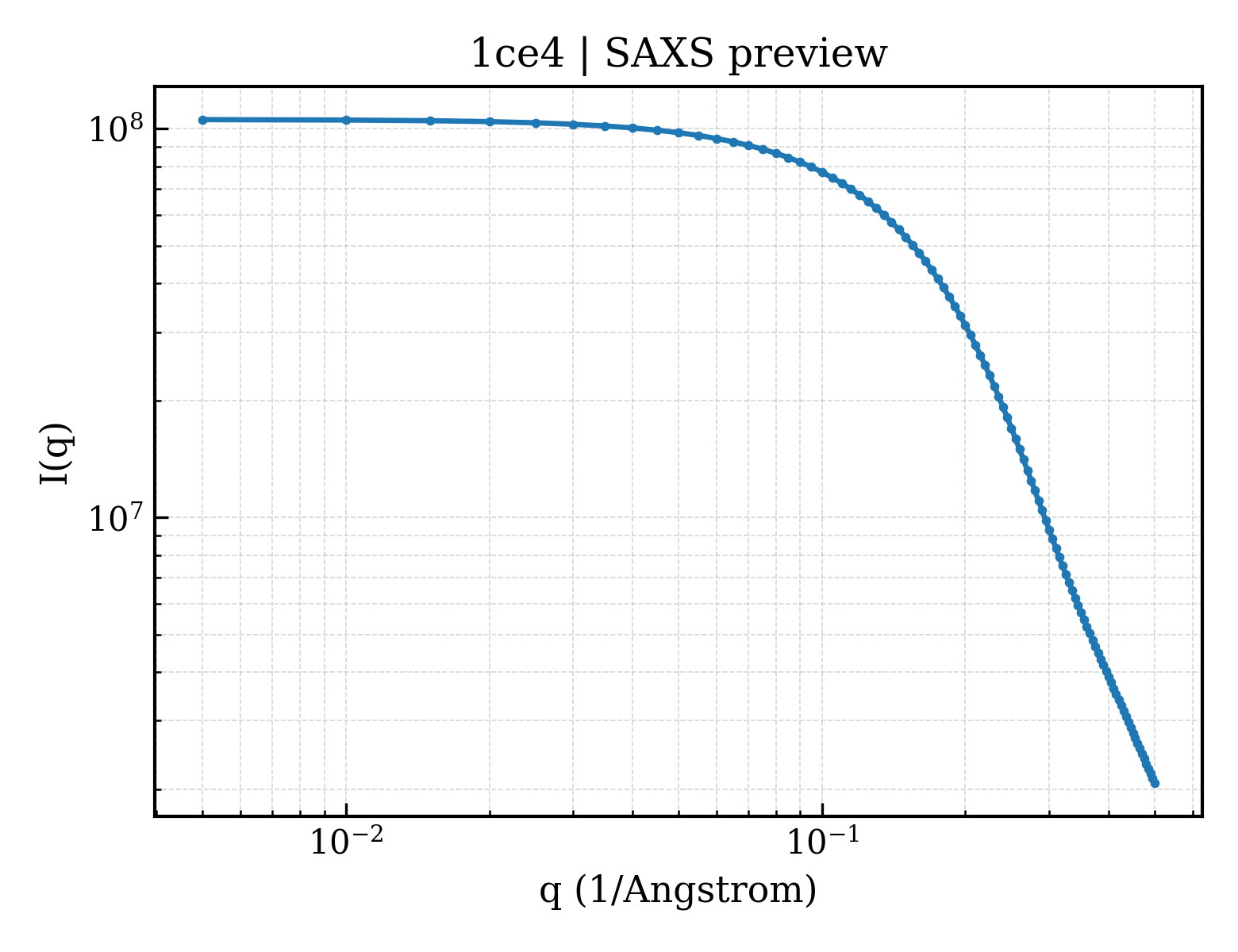

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1ce4 |
| deposition_date | 1999-03-15 |
| title | CONFORMATIONAL MODEL FOR THE CONSENSUS V3 LOOP OF THE ENVELOPE PROTEIN GP120 OF HIV-1 |
| keywords | AMPHIPATHIC HELIX, HIV INFECTION, Viral protein; VIRAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.67 Å |
| rg_electron | 9.90 Å |
| i0 | 105691000.00 |
| molecular_weight | 78029.0 kDa |
| excluded_volume | 94702 ų |
| envelope_volume | 11334 ų |
| shell_volume | 8686 ų |
| envelope_diameter | 37.8 Å |
| shell_rg | 16.79 Å |
| envelope_rg | 11.67 Å |
| shape_rg | 9.85 Å |
| total_rg | 10.32 Å |
| total_atoms | 10860 |
| n_residues | 700 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 32.8 Å |
| rg_real | 9.68 Å |
| rg_real_error | 0.30 Å |
| i0_real | 1.0570e+08 |
| i0_real_error | 1.1550e+06 |
| rg_reciprocal | 9.68 Å |
| i0_reciprocal | 105700000.0000 |
| total_estimate | 0.7154 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 10.8 Å |
| skewness | 0.302 |
| kurtosis | -0.423 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 19740.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.898; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.894; Smooth: 0.940 |
