1cf9
Structure of the mutant VAL169CYS of catalase HPII from Escherichia coli

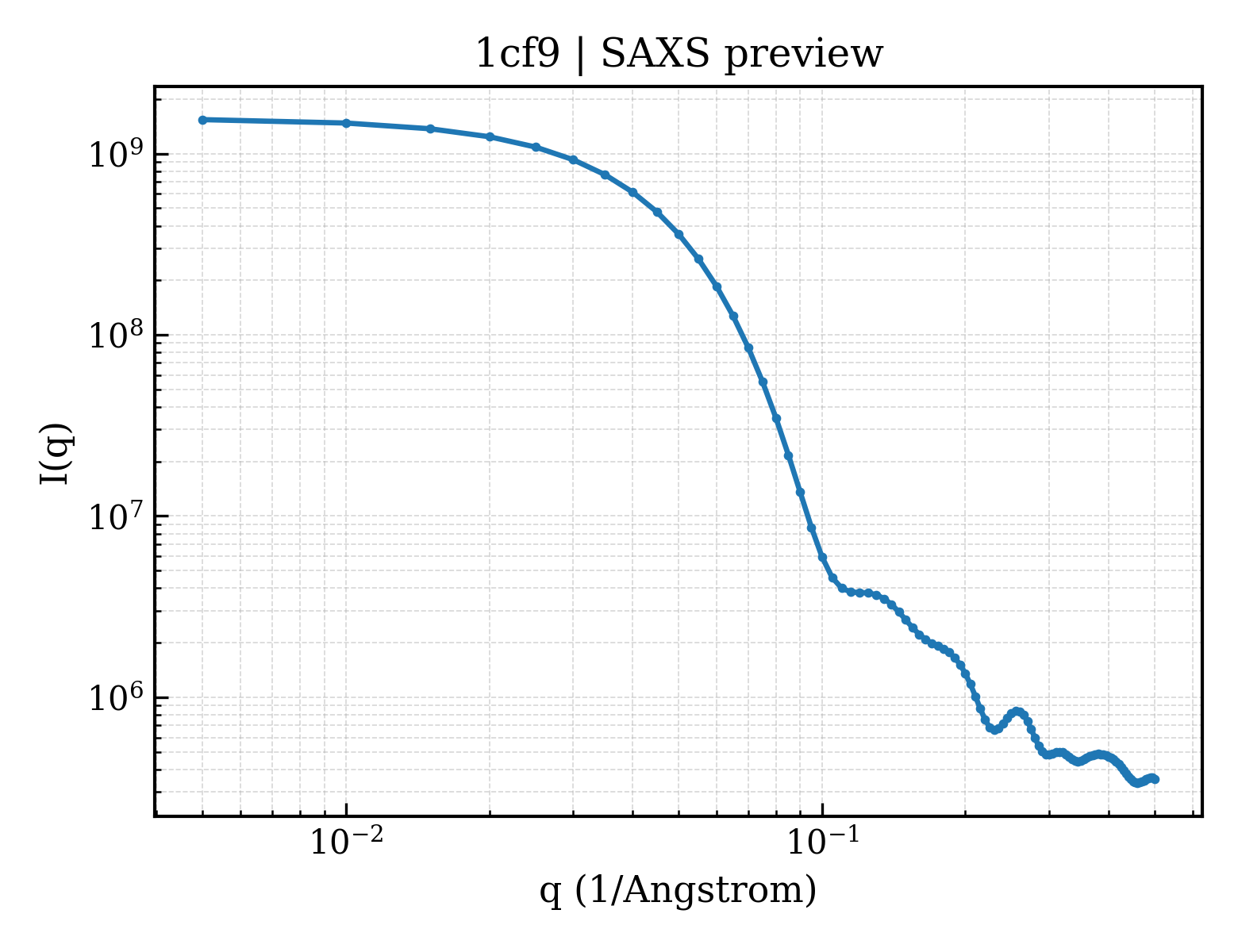

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cf9 |
| deposition_date | 1999-03-24 |
| title | Structure of the mutant VAL169CYS of catalase HPII from Escherichia coli |
| keywords | HYDROGEN PEROXIDE, OXIDOREDUCTASE, COVALENT MODIFICATIONS; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 41.66 Å |
| rg_electron | 41.40 Å |
| i0 | 1562090000.00 |
| molecular_weight | 327230.0 kDa |
| excluded_volume | 408620 ų |
| envelope_volume | 481930 ų |
| shell_volume | 90466 ų |
| envelope_diameter | 144.9 Å |
| shell_rg | 50.77 Å |
| envelope_rg | 41.84 Å |
| shape_rg | 41.34 Å |
| total_rg | 41.98 Å |
| total_atoms | 23148 |
| n_residues | 2908 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 134.4 Å |
| rg_real | 41.59 Å |
| rg_real_error | 0.88 Å |
| i0_real | 1.5620e+09 |
| i0_real_error | 2.8890e+07 |
| rg_reciprocal | 41.66 Å |
| i0_reciprocal | 1562000000.0000 |
| total_estimate | 0.8725 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 49.5 Å |
| skewness | 0.370 |
| kurtosis | -0.177 |
| angular_range | — – 0.1900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 647000000.0000 |
| n_real_points | 39 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.847; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.820 |
