1ye9

Crystal structure of proteolytically truncated catalase HPII from E. coli

Method: X-RAY DIFFRACTION D_max: 187.8 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

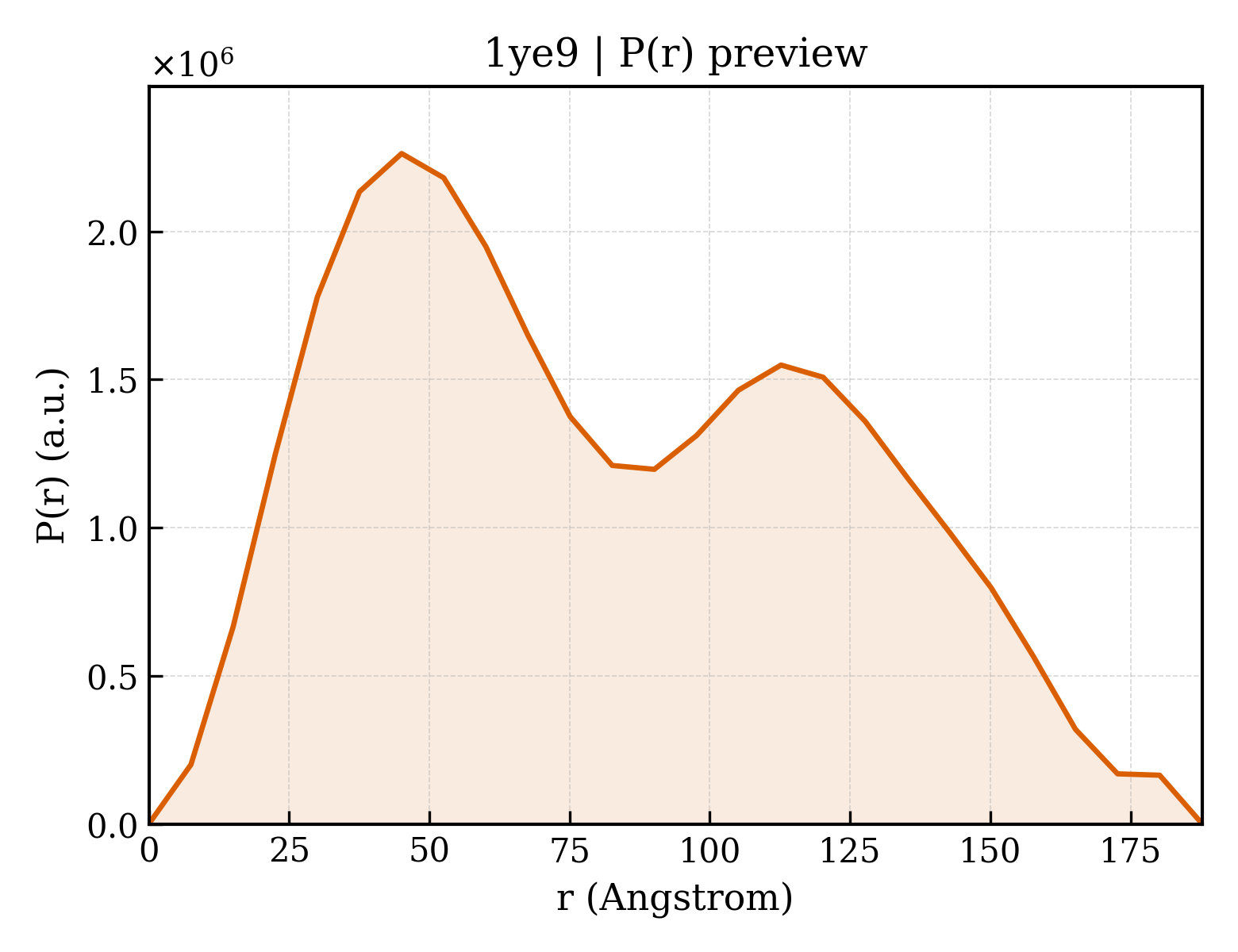

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ye9
沉积日期 deposition_date	2004-12-28
结构标题 title	Crystal structure of proteolytically truncated catalase HPII from E. coli
关键词 keywords	catalase HPII, proteolytic truncation, beta barrel core, Oxidoreductase; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	63.72 Å
回转半径 Rg (电子) rg_electron	64.36 Å
零角强度 I(0) i0	2757220000.00
分子量 molecular_weight	443630.0 kDa
排除体积 excluded_volume	552920 Å³
包络体积 envelope_volume	716550 Å³
水化壳体积 shell_volume	89422 Å³
包络直径 envelope_diameter	205.2 Å
壳层 Rg shell_rg	69.47 Å
包络 Rg envelope_rg	62.85 Å
形状 Rg shape_rg	64.35 Å
总 Rg total_rg	64.48 Å
总原子数 total_atoms	31472
残基数 n_residues	3832
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	187.8 Å
Rg (实空间) rg_real	64.25 Å
Rg 误差 (实空间) rg_real_error	1.52 Å
I(0) (实空间) i0_real	2.7570e+09
I(0) 误差 (实空间) i0_real_error	5.8820e+07
Rg (倒空间) rg_reciprocal	63.14 Å
I(0) (倒空间) i0_reciprocal	2752000000.0000
解质量估计 total_estimate	0.7475
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	45.1 Å
偏度 Skewness skewness	0.309
峰度 Kurtosis kurtosis	-0.975
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	462800000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.628; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.830; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	catalase HPII
分子量 formula_weight	25615.7 kDa
EC 编号 ec_number	1.11.1.6
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,I,J,K,L
原子数 atom_count	31715

SENYALTTNQGVRIADDQNSLRAGSRGPTLLEDFILREKITHFDHERIPERIVHARGSAAHGYFQPYKSLSDITKADFLSDPNKITPVFVRFSTVQGGAGSADTVRDIRGFATKFYTEEGIFDLVGNNTPIFFIQDAHKFPDFVHAVKPEPHWAIPQGQSAHDTFWDYVSLQPETLHNVMWAMSDRGIPRSYRTMEGFGIHTFRLINAEGKATFVRFHWKPLAGKA

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	catalase HPII
分子量 formula_weight	30072.5 kDa
EC 编号 ec_number	1.11.1.6
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G,H,M,N,O,P

KLTGRDPDFHRRELWEAIEAGDFPEYELGFQLIPEEDEFKFDFDLLDPTKLIPEELVPVQRVGKMVLNRNPDNFFAENEQAAFHPGHIVPGLDFTNDPLLQGRLFSYTDTQISRLGGPNFHEIPINRPTCPYHNFQRDGMHRMGIDTNPANYEPNSINDNWPRETPPGPKRGGFESYQERVEGNKVRERSPSFGEYYSHPRLFWLSQTPFEQRHIVDGFSFELSKVVRPYIRERVVDQLAHIDLTLAQAVAKNLGIELT

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	CIS-HEME D HYDROXYCHLORIN GAMMA-SPIROLACTONE
分子量 formula_weight	632.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	180

▼

6. 折叠分类 (SCOP + CATH) 24 domains

CATH v4.4 (24 domains)

结构域编号 domain_id	1ye9A01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	10 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	30 — Catalase hpii, N-terminal domain-like

结构域编号 domain_id	1ye9A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	470 — catalase hpii fold
同源超家族 H-superfamily homologous superfamily	10 — catalase hpii domain

结构域编号 domain_id	1ye9A03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	1060 — Catalase HPII, helical domain

结构域编号 domain_id	1ye9B01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	10 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	30 — Catalase hpii, N-terminal domain-like

结构域编号 domain_id	1ye9B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	470 — catalase hpii fold
同源超家族 H-superfamily homologous superfamily	10 — catalase hpii domain

结构域编号 domain_id	1ye9B03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	1060 — Catalase HPII, helical domain

结构域编号 domain_id	1ye9C01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	10 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	30 — Catalase hpii, N-terminal domain-like

结构域编号 domain_id	1ye9C02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	470 — catalase hpii fold
同源超家族 H-superfamily homologous superfamily	10 — catalase hpii domain

结构域编号 domain_id	1ye9C03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	1060 — Catalase HPII, helical domain

结构域编号 domain_id	1ye9D01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	10 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	30 — Catalase hpii, N-terminal domain-like

结构域编号 domain_id	1ye9D02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	470 — catalase hpii fold
同源超家族 H-superfamily homologous superfamily	10 — catalase hpii domain

结构域编号 domain_id	1ye9D03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	1060 — Catalase HPII, helical domain

结构域编号 domain_id	1ye9I01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	10 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	30 — Catalase hpii, N-terminal domain-like

结构域编号 domain_id	1ye9I02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	470 — catalase hpii fold
同源超家族 H-superfamily homologous superfamily	10 — catalase hpii domain

结构域编号 domain_id	1ye9I03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	1060 — Catalase HPII, helical domain

结构域编号 domain_id	1ye9J01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	10 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	30 — Catalase hpii, N-terminal domain-like

结构域编号 domain_id	1ye9J02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	470 — catalase hpii fold
同源超家族 H-superfamily homologous superfamily	10 — catalase hpii domain

结构域编号 domain_id	1ye9J03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	1060 — Catalase HPII, helical domain

结构域编号 domain_id	1ye9K01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	10 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	30 — Catalase hpii, N-terminal domain-like

结构域编号 domain_id	1ye9K02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	470 — catalase hpii fold
同源超家族 H-superfamily homologous superfamily	10 — catalase hpii domain

结构域编号 domain_id	1ye9K03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	1060 — Catalase HPII, helical domain

结构域编号 domain_id	1ye9L01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	10 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	30 — Catalase hpii, N-terminal domain-like

结构域编号 domain_id	1ye9L02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	470 — catalase hpii fold
同源超家族 H-superfamily homologous superfamily	10 — catalase hpii domain

结构域编号 domain_id	1ye9L03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	1060 — Catalase HPII, helical domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	111.011 Å
晶胞边长 b length_b	152.888 Å
晶胞边长 c length_c	135.287 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	97.54 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.2198
R_work r_work	0.2171
R_free r_free	0.2690

fit	/app/data/saxs_computation/ye/1ye9/1ye9.fit
pddf	/app/data/pr_computation/ye/1ye9/1ye9.pr.out
profile	/app/data/saxs_computation/ye/1ye9/1ye9.dat
