SAXSdb — 1ch0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (RIBONUCLEASE T1)

Aspergillus oryzae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	CALCIUM ION × 1 GUANOSINE-2'-MONOPHOSPHATE × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	CALCIUM ION × 1 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	CALCIUM ION × 2 GUANOSINE-2'-MONOPHOSPHATE × 1 CHLORIDE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RNT1_ASPOR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–104； UniProt 27–130 Author chain B； PDBConstruct 1–104； UniProt 27–130 Author chain C； PDBConstruct 1–104； UniProt 27–130

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ch0
Deposition date deposition_date	1999-03-30
Structure title title	RNASE T1 VARIANT WITH ALTERED GUANINE BINDING SEGMENT
Keywords keywords	RIBONUCLEASE, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ch0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

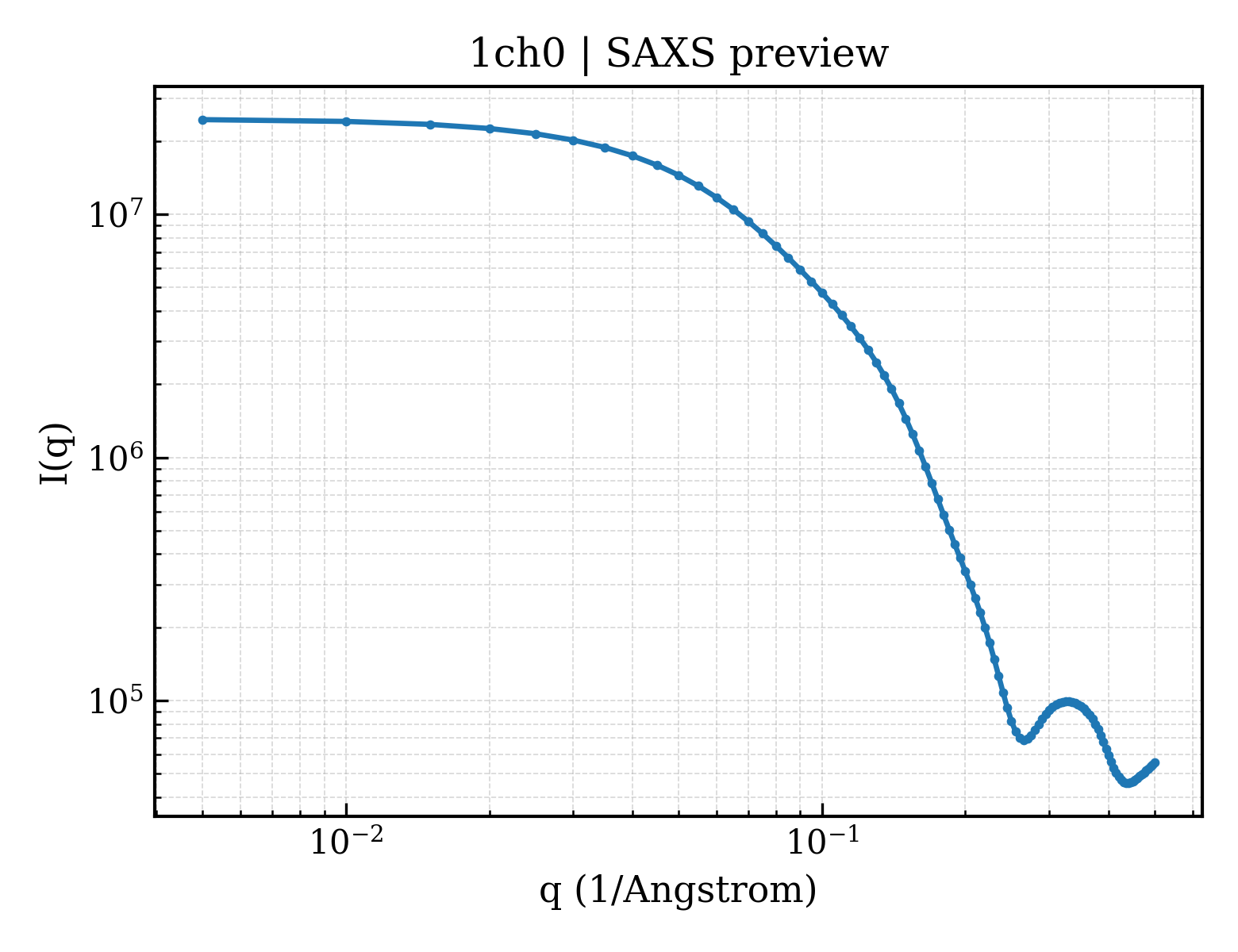

1ch0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

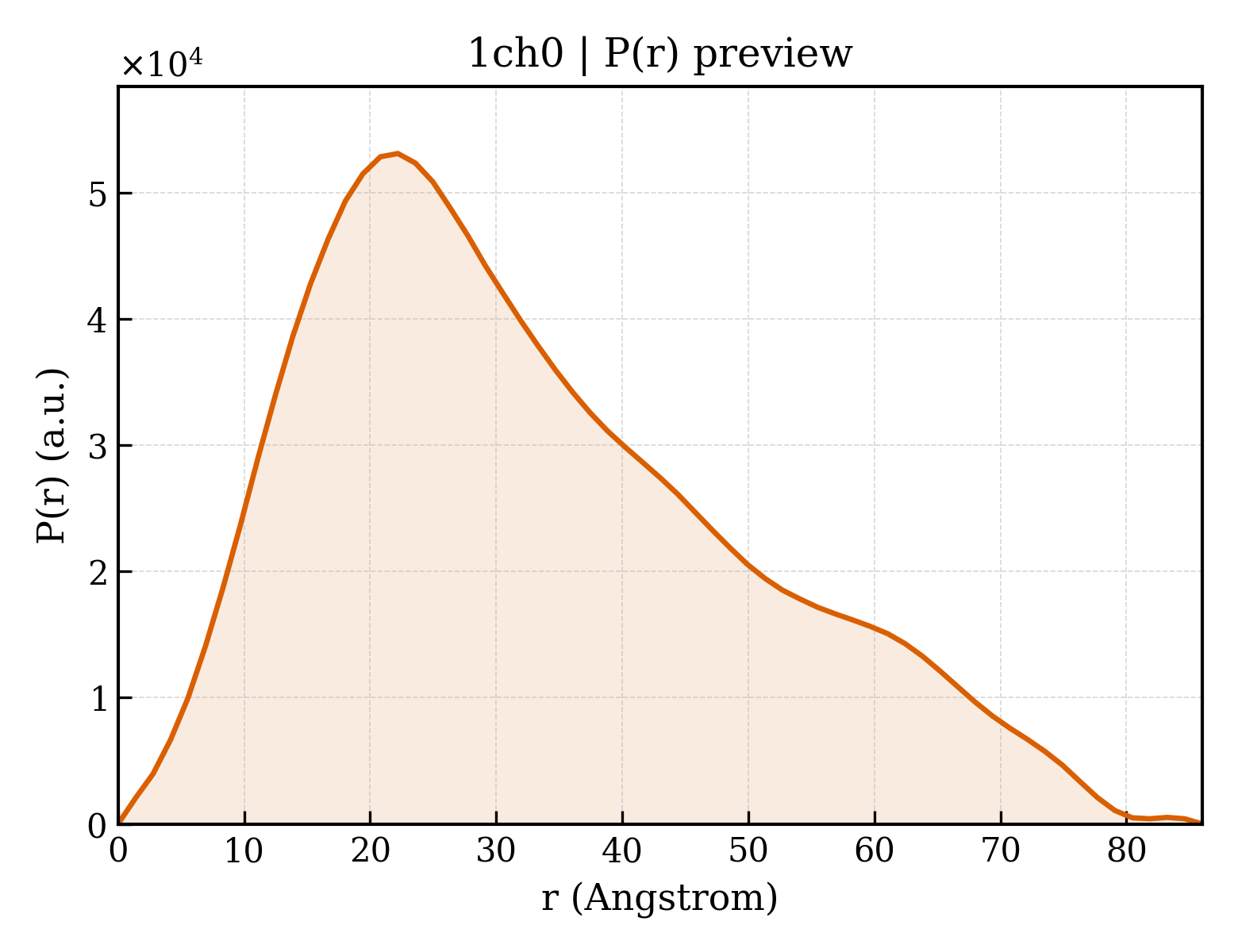

1ch0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	13.97 Å
Rg (electron density)	12.45 Å
Total Rg	13.78 Å
Atom count	810
Residues	104
Excluded volume	13799 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ch0__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ch0__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1ch0__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	PROTEIN (RIBONUCLEASE T1)
Molecular weight formula_weight	11143.8 kDa
EC 编号 ec_number	3.1.27.3
Mutation mutation	Q25K, K41E, Y42F, N43R, Y45W, E46Q
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	2552

ACDYTCGSNCYSSSDVSTAQAAGYKLHEDGETVGSNSYPHEFRNWQGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT

Source Source

Source organism organism	Aspergillus oryzae
NCBI taxonomy ID ncbi_taxonomy_id	5062
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-2'-MONOPHOSPHATE
Molecular weight formula_weight	363.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	144

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1ch0a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.1 — Microbial ribonucleases
Superfamily Superfamily superfamily	d.1.1 — Microbial ribonucleases
Family Family family	d.1.1.4 — Fungal ribonucleases

Domain ID domain_id	d1ch0b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.1 — Microbial ribonucleases
Superfamily Superfamily superfamily	d.1.1 — Microbial ribonucleases
Family Family family	d.1.1.4 — Fungal ribonucleases

Domain ID domain_id	d1ch0c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.1 — Microbial ribonucleases
Superfamily Superfamily superfamily	d.1.1 — Microbial ribonucleases
Family Family family	d.1.1.4 — Fungal ribonucleases

CATH v4.4 (3 domains)

Domain ID domain_id	1ch0A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	30 — Microbial ribonucleases

Domain ID domain_id	1ch0B00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	30 — Microbial ribonucleases

Domain ID domain_id	1ch0C00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	30 — Microbial ribonucleases

▶

Unit-cell length a length_a	39.820 Å
Unit-cell length b length_b	48.850 Å
Unit-cell length c length_c	158.770 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	35.600 Å
R factor r_factor	—
R_work r_work	0.1980
R_free r_free	0.2410
